Product description

• 3" Circle LitePad HO90 Daylight-Balanced LED Softlight Rosco's 12 x 12" LitePad HO90 Daylight-Balanced LED Softlight from Rosco is a versatile light system. The HO refers to high output, as this is noticeably brighter than the original LitePad, and 90 refers to the 90+ CRI rating. The HO90 features a color temperature of 5300K, and extremely soft glow without the multiple shadows common when using LED array lights. The unit stays cool to the touch, with only the edge becoming slightly warm.

  The fixture itself is less than 0.4" thick, and it is built using an edge-lit piece of acrylic. The LEDs arranged around the edge illuminate channels that diffuse the light providing an extremely soft source that is easy on your talent's eyes and is suitable for key or fill based on the size of your LitePad. You can adjust the brightness using optional dimmers. The power connector is incorporated into the fixture itself and is not hard wired as with the original.
  LitePad HO90
  • The edge-lit design of the LitePad provides for an extremely soft glowing source, which was pioneered by Rosco for use in the film industry.
  Uses
  • The 3" Circle LitePad HO90 is suitable for a kicker or creating a circular highlight in your talent's eyes.
  Rugged Housing
  • The rigid plastic construction of the HO90 LitePad makes for a durable yet lightweight fixture.
  Interior Connector
  • LitePad's new interior connector eliminates the previous hardwire system, which had the potential to be pulled out during use causing damage to the fixture and requiring down time for repair. Based on user feedback, this feature was introduced to make the LitePad more rugged and easier to use.
  Low Heat
  • Because LitePad is an LED light source, the amount of heat generated is very low and does not require forced air cooling.
  Minimal Power Consumption
  • With each LED only consuming a quarter of a watt, LitePad is an extremely energy efficient light source. There is no longer the need for kilowatts of power or a generator to power a set full of lights. A few dozen LitePads can easily run off of available household power.
  Easy on the Eyes
  • Unlike many LED sources, LitePad is a bounced LED light - not an array of LEDs pointing directly forward. Performers or technicians can look directly into LitePad without squinting, hurting their eyes or getting a headache.
  Dimmable
  • LitePads are a fully dimmable LED product. The proprietary Single Fader Dimmer and 2 CH / DMX Dimmer can smoothly dim any standard size LitePad with no color temperature change. With LitePad's dimmers, you are able to set the exact light intensity you need.
• 3 x 6" LitePad Axiom 90 Daylight-Balanced LED Softlight By encasing Rosco's LitePad HO90 LED engine into a steel and aluminum frame, the 3 x 6" LitePad Axiom 90 Daylight-Balanced LED Softlight from Rosco adds durability and additional mounting options to this already versatile light system. With a color temperature around 5300K and a 90+ CRI rating the light is suitable for daylight shooting situations.The frame encloses the LitePad on the back and sides, providing protection from the rigors of production. Even with the metal frame the Axiom 90 is 0.64" thick, and does not require cooling under normal use.

  As with the original LitePad you can use a variety of fasteners to mount the Axiom 90, including zip ties or hook and loop fabric. However, the metal frame also allows you to use magnetic fasteners, as well as Rosco's quick-release mounting system for mounting. A built-in gel slot allows you to filter your light without having to resort to tape, clothes pins or other machinations. The Axiom 90 features a power socket and a removable power cord, making it easier to store while lessening the possibility of the power connection becoming damaged. The Axiom 90 can be dimmed using an optional dimmer unit.
  LitePad HO90
  • The edge-lit design of the LitePad provides for an extremely soft glowing source, which was pioneered by Rosco for use in the film industry. The Axiom 90 incorporates an HO90 LitePad that features increased output and a greater than 90 CRI rating.
  Rugged Housing
  • The housing is constructed from steel and aluminum to protect the rigid plastic construction of the HO90 LitePad within. The metal housing also allows for the attachment of different mounting hardware and filters.
  Versatile Mounting
  • With Rosco's LitePad Axiom quick-release mounting system, it is now possible to change out the mounting option in just a few seconds. Whether it is a 1/4"-20 stud, a baby pin or even a wall plate, it only takes a moment for a solid connection. Both a 1/4"-20 threaded mounting stud and a baby-pin mounting stud quick-release plates are included with the Axiom 90.
  Interior Connector
  • LitePad's new interior connector eliminates the previous hardwire system, which had the potential to be pulled out during use causing damage to the fixture and requiring down time for repair. Based on user feedback, this feature was introduced to make the LitePad more rugged and easier to use, and this improvement has been carried over to the Axiom 90.
  Daylight / Tungsten
  • LitePad is available in two color temperatures, daylight (approx. 5300K) and tungsten (approx. 3600K). With tungsten and daylight LitePads, which have equal light output, there is no need to color correct your LitePad, losing valuable light intensity. LitePad's minimum green content allows for high color rendering and great film and digital photography.
  Low Heat
  • Because LitePad is an LED light source, the amount of heat generated is very low and does not require forced air cooling. This means your audio recordist will not be complaining about fan noise from your Axiom 90.
  Minimal Power Consumption
  • With each LED only consuming a quarter of a watt, LitePad is an energy-efficient light source. There is no longer the need for kilowatts of power or a generator to power a set full of lights. A few dozen LitePads can easily run off available household power.
  Easy on the Eyes
  • Unlike many LED sources, LitePad is a bounced LED light - not an array of LEDs pointing directly forward. Performers or technicians can look directly into LitePad without squinting, hurting their eyes or getting a headache.
  Dimmable
  • LitePads are a fully dimmable LED product. The proprietary Single Fader Dimmer and 2 CH / DMX Dimmer can smoothly dim any standard size LitePad with no color temperature change. With LitePad's dimmers, you can set the exact light intensity you need.
• 3 x 12" LitePad Axiom 90 Daylight-Balanced LED Softlight By encasing Rosco's LitePad HO90 LED engine into a steel and aluminum frame, the 3 x 12" LitePad Axiom 90 Daylight-Balanced LED Softlight from Rosco adds durability and additional mounting options to this already versatile light system. With a color temperature around 5300K and a 90+ CRI rating the light is suitable for daylight shooting situations.The frame encloses the LitePad on the back and sides, providing protection from the rigors of production. Even with the metal frame the Axiom 90 is 0.64" thick, and does not require cooling under normal use.

  As with the original LitePad you can use a variety of fasteners to mount the Axiom 90, including zip ties or hook and loop fabric. However, the metal frame also allows you to use magnetic fasteners, as well as Rosco's quick-release mounting system for mounting. A built-in gel slot allows you to filter your light without having to resort to tape, clothes pins or other machinations. The Axiom 90 features a power socket and a removable power cord, making it easier to store while lessening the possibility of the power connection becoming damaged. The Axiom 90 can be dimmed using an optional dimmer unit.
  LitePad HO90
  • The edge-lit design of the LitePad provides for an extremely soft glowing source, which was pioneered by Rosco for use in the film industry. The Axiom 90 incorporates an HO90 LitePad that features increased output and a greater than 90 CRI rating.
  Rugged Housing
  • The housing is constructed from steel and aluminum to protect the rigid plastic construction of the HO90 LitePad within. The metal housing also allows for the attachment of different mounting hardware and filters.
  Versatile Mounting
  • With Rosco's LitePad Axiom quick-release mounting system, it is now possible to change out the mounting option in just a few seconds. Whether it is a 1/4"-20 stud, a baby pin or even a wall plate, it only takes a moment for a solid connection. Both a 1/4"-20 threaded mounting stud and a baby-pin mounting stud quick-release plates are included with the Axiom 90.
  Interior Connector
  • LitePad's new interior connector eliminates the previous hardwire system, which had the potential to be pulled out during use causing damage to the fixture and requiring down time for repair. Based on user feedback, this feature was introduced to make the LitePad more rugged and easier to use, and this improvement has been carried over to the Axiom 90.
  Daylight / Tungsten
  • LitePad is available in two color temperatures, daylight (approx. 5300K) and tungsten (approx. 3600K). With tungsten and daylight LitePads, which have equal light output, there is no need to color correct your LitePad, losing valuable light intensity. LitePad's minimum green content allows for high color rendering and great film and digital photography.
  Low Heat
  • Because LitePad is an LED light source, the amount of heat generated is very low and does not require forced air cooling. This means your audio recordist will not be complaining about fan noise from your Axiom 90.
  Minimal Power Consumption
  • With each LED only consuming a quarter of a watt, LitePad is an energy-efficient light source. There is no longer the need for kilowatts of power or a generator to power a set full of lights. A few dozen LitePads can easily run off available household power.
  Easy on the Eyes
  • Unlike many LED sources, LitePad is a bounced LED light - not an array of LEDs pointing directly forward. Performers or technicians can look directly into LitePad without squinting, hurting their eyes or getting a headache.
  Dimmable
  • LitePads are a fully dimmable LED product. The proprietary Single Fader Dimmer and 2 CH / DMX Dimmer can smoothly dim any standard size LitePad with no color temperature change. With LitePad's dimmers, you can set the exact light intensity you need.
• 6 x 6" LitePad Axiom 90 Daylight-Balanced LED Softlight By encasing Rosco's LitePad HO90 LED engine into a steel and aluminum frame, the 6 x 6" LitePad Axiom 90 Daylight-Balanced LED Softlight from Rosco adds durability and additional mounting options to this already versatile light system. With a color temperature around 5300K and a 90+ CRI rating the light is suitable for daylight shooting situations.The frame encloses the LitePad on the back and sides, providing protection from the rigors of production. Even with the metal frame the Axiom 90 is 0.64" thick, and does not require cooling under normal use.

  As with the original LitePad you can use a variety of fasteners to mount the Axiom 90, including zip ties or hook and loop fabric. However, the metal frame also allows you to use magnetic fasteners, as well as Rosco's quick-release mounting system for mounting. A built-in gel slot allows you to filter your light without having to resort to tape, clothes pins or other machinations. The Axiom 90 features a power socket and a removable power cord, making it easier to store while lessening the possibility of the power connection becoming damaged. The Axiom 90 can be dimmed using an optional dimmer unit.
  LitePad HO90
  • The edge-lit design of the LitePad provides for an extremely soft glowing source, which was pioneered by Rosco for use in the film industry. The Axiom 90 incorporates an HO90 LitePad that features increased output and a greater than 90 CRI rating.
  Rugged Housing
  • The housing is constructed from steel and aluminum to protect the rigid plastic construction of the HO90 LitePad within. The metal housing also allows for the attachment of different mounting hardware and filters.
  Versatile Mounting
  • With Rosco's LitePad Axiom quick-release mounting system, it is now possible to change out the mounting option in just a few seconds. Whether it is a 1/4"-20 stud, a baby pin or even a wall plate, it only takes a moment for a solid connection. Both a 1/4"-20 threaded mounting stud and a baby-pin mounting stud quick-release plates are included with the Axiom 90.
  Interior Connector
  • LitePad's new interior connector eliminates the previous hardwire system, which had the potential to be pulled out during use causing damage to the fixture and requiring down time for repair. Based on user feedback, this feature was introduced to make the LitePad more rugged and easier to use, and this improvement has been carried over to the Axiom 90.
  Daylight / Tungsten
  • LitePad is available in two color temperatures, daylight (approx. 5300K) and tungsten (approx. 3600K). With tungsten and daylight LitePads, which have equal light output, there is no need to color correct your LitePad, losing valuable light intensity. LitePad's minimum green content allows for high color rendering and great film and digital photography.
  Low Heat
  • Because LitePad is an LED light source, the amount of heat generated is very low and does not require forced air cooling. This means your audio recordist will not be complaining about fan noise from your Axiom 90.
  Minimal Power Consumption
  • With each LED only consuming a quarter of a watt, LitePad is an energy-efficient light source. There is no longer the need for kilowatts of power or a generator to power a set full of lights. A few dozen LitePads can easily run off available household power.
  Easy on the Eyes
  • Unlike many LED sources, LitePad is a bounced LED light - not an array of LEDs pointing directly forward. Performers or technicians can look directly into LitePad without squinting, hurting their eyes or getting a headache.
  Dimmable
  • LitePads are a fully dimmable LED product. The proprietary Single Fader Dimmer and 2 CH / DMX Dimmer can smoothly dim any standard size LitePad with no color temperature change. With LitePad's dimmers, you can set the exact light intensity you need.
• 6 x 12" LitePad Axiom 90 Daylight-Balanced LED Softlight By encasing Rosco's LitePad HO90 LED engine into a steel and aluminum frame, the 6 x 12" LitePad Axiom 90 Daylight-Balanced LED Softlight from Rosco adds durability and additional mounting options to this already versatile light system. With a color temperature around 5300K and a 90+ CRI rating the light is suitable for daylight shooting situations.The frame encloses the LitePad on the back and sides, providing protection from the rigors of production. Even with the metal frame the Axiom 90 is 0.64" thick, and does not require cooling under normal use.

  As with the original LitePad you can use a variety of fasteners to mount the Axiom 90, including zip ties or hook and loop fabric. However, the metal frame also allows you to use magnetic fasteners, as well as Rosco's quick-release mounting system for mounting. A built-in gel slot allows you to filter your light without having to resort to tape, clothes pins or other machinations. The Axiom 90 features a power socket and a removable power cord, making it easier to store while lessening the possibility of the power connection becoming damaged. The Axiom 90 can be dimmed using an optional dimmer unit.
  LitePad HO90
  • The edge-lit design of the LitePad provides for an extremely soft glowing source, which was pioneered by Rosco for use in the film industry. The Axiom 90 incorporates an HO90 LitePad that features increased output and a greater than 90 CRI rating.
  Rugged Housing
  • The housing is constructed from steel and aluminum to protect the rigid plastic construction of the HO90 LitePad within. The metal housing also allows for the attachment of different mounting hardware and filters.
  Versatile Mounting
  • With Rosco's LitePad Axiom quick-release mounting system, it is now possible to change out the mounting option in just a few seconds. Whether it is a 1/4"-20 stud, a baby pin or even a wall plate, it only takes a moment for a solid connection. Both a 1/4"-20 threaded mounting stud and a baby-pin mounting stud quick-release plates are included with the Axiom 90.
  Interior Connector
  • LitePad's new interior connector eliminates the previous hardwire system, which had the potential to be pulled out during use causing damage to the fixture and requiring down time for repair. Based on user feedback, this feature was introduced to make the LitePad more rugged and easier to use, and this improvement has been carried over to the Axiom 90.
  Daylight / Tungsten
  • LitePad is available in two color temperatures, daylight (approx. 5300K) and tungsten (approx. 3600K). With tungsten and daylight LitePads, which have equal light output, there is no need to color correct your LitePad, losing valuable light intensity. LitePad's minimum green content allows for high color rendering and great film and digital photography.
  Low Heat
  • Because LitePad is an LED light source, the amount of heat generated is very low and does not require forced air cooling. This means your audio recordist will not be complaining about fan noise from your Axiom 90.
  Minimal Power Consumption
  • With each LED only consuming a quarter of a watt, LitePad is an energy-efficient light source. There is no longer the need for kilowatts of power or a generator to power a set full of lights. A few dozen LitePads can easily run off available household power.
  Easy on the Eyes
  • Unlike many LED sources, LitePad is a bounced LED light - not an array of LEDs pointing directly forward. Performers or technicians can look directly into LitePad without squinting, hurting their eyes or getting a headache.
  Dimmable
  • LitePads are a fully dimmable LED product. The proprietary Single Fader Dimmer and 2 CH / DMX Dimmer can smoothly dim any standard size LitePad with no color temperature change. With LitePad's dimmers, you can set the exact light intensity you need.
• 12 x 12" LitePad Axiom 90 Daylight-Balanced LED Softlight By encasing Rosco's LitePad HO90 LED engine into a steel and aluminum frame, the 12 x 12" LitePad Axiom 90 Daylight-Balanced LED Softlight from Rosco adds durability and additional mounting options to this already versatile light system. With a color temperature around 5300K and a 90+ CRI rating the light is suitable for daylight shooting situations.The frame encloses the LitePad on the back and sides, providing protection from the rigors of production. Even with the metal frame the Axiom 90 is 0.64" thick, and does not require cooling under normal use.

  As with the original LitePad you can use a variety of fasteners to mount the Axiom 90, including zip ties or hook and loop fabric. However, the metal frame also allows you to use magnetic fasteners, as well as Rosco's quick-release mounting system for mounting. A built-in gel slot allows you to filter your light without having to resort to tape, clothes pins or other machinations. The Axiom 90 features a power socket and a removable power cord, making it easier to store while lessening the possibility of the power connection becoming damaged. The Axiom 90 can be dimmed using an optional dimmer unit.
  LitePad HO90
  • The edge-lit design of the LitePad provides for an extremely soft glowing source, which was pioneered by Rosco for use in the film industry. The Axiom 90 incorporates an HO90 LitePad that features increased output and a greater than 90 CRI rating.
  Rugged Housing
  • The housing is constructed from steel and aluminum to protect the rigid plastic construction of the HO90 LitePad within. The metal housing also allows for the attachment of different mounting hardware and filters.
  Versatile Mounting
  • With Rosco's LitePad Axiom quick-release mounting system, it is now possible to change out the mounting option in just a few seconds. Whether it is a 1/4"-20 stud, a baby pin or even a wall plate, it only takes a moment for a solid connection. Both a 1/4"-20 threaded mounting stud and a baby-pin mounting stud quick-release plates are included with the Axiom 90.
  Interior Connector
  • LitePad's new interior connector eliminates the previous hardwire system, which had the potential to be pulled out during use causing damage to the fixture and requiring down time for repair. Based on user feedback, this feature was introduced to make the LitePad more rugged and easier to use, and this improvement has been carried over to the Axiom 90.
  Daylight / Tungsten
  • LitePad is available in two color temperatures, daylight (approx. 5300K) and tungsten (approx. 3600K). With tungsten and daylight LitePads, which have equal light output, there is no need to color correct your LitePad, losing valuable light intensity. LitePad's minimum green content allows for high color rendering and great film and digital photography.
  Low Heat
  • Because LitePad is an LED light source, the amount of heat generated is very low and does not require forced air cooling. This means your audio recordist will not be complaining about fan noise from your Axiom 90.
  Minimal Power Consumption
  • With each LED only consuming a quarter of a watt, LitePad is an energy-efficient light source. There is no longer the need for kilowatts of power or a generator to power a set full of lights. A few dozen LitePads can easily run off available household power.
  Easy on the Eyes
  • Unlike many LED sources, LitePad is a bounced LED light - not an array of LEDs pointing directly forward. Performers or technicians can look directly into LitePad without squinting, hurting their eyes or getting a headache.
  Dimmable
  • LitePads are a fully dimmable LED product. The proprietary Single Fader Dimmer and 2 CH / DMX Dimmer can smoothly dim any standard size LitePad with no color temperature change. With LitePad's dimmers, you can set the exact light intensity you need.
• Car Adapter for LitePad This is a Rosco Car Adapter for the LitePad LED panels. Plug it into your auto's cigarette lighter or utility socket to provide the necessary 12VDC for your LitePad.
  Splitters Available
  • "Y" Splitter or a Four Way Splitter can be used to attach more than one LitePad (as long as the combined amperage of the LitePads does not exceed 4 amps).
• Y-Cable for LitePad The Rosco Y-Cable for LitePad™ fixtures allows connection of 2 fixtures to one power source.
• 10' Right Angle Extension Cable for LitePad The Rosco 10' Right Angle Extension Cable for LitePad adds an extra 10' (3 m) to the LitePad's transformer power supply. The right angle connector reduces the plug's profile and the possibility of crimping the cable.
• Four Way Splitter for LitePad The Rosco Four Way Splitter for the LitePad LED panel enables powering up to four LitePads with one single power source. The 3, or 5 amp power supply is suggested for use with this cable.
• XLR, Four Pin Adapter Cable for LitePad The Rosco XLR, 4 Pin Adapter Cable enables you to connect your XLR 12 volt DC battery source to any LitePad LED panel.
• Anton Bauer Adapter for LitePad The Rosco Anton Bauer Adapter enables operation of all LitePads with your 12 volt Anton Bauer Battery.
• Mounting Bracket for 3.0" LitePad The Rosco Mounting Bracket for 3.0" LitePad LED fixture allows the 3 x 6" or 3 x 12" Litepad to be mounted to any accessory that has a 1/4"-20 male screw, such as light stands, tripod heads or articulating arms.
  • Lightweight plastic
• Single Fade/Dimmer for LitePad Plug this Rosco Single Fader/Dimmer in between your LitePad panel and power source. It is calibrated, and capable of providing dimming between 0 - 100% without color shift.The elegant, ergonomic dimmer fits comfortably in the palm of your hand allowing easy use of the fade wheel -- perfect for camera applications and making continuous adjustments on the fly. An LED indicator confirms power to the LitePad is available and gives visual feedback about the current dimming level.
  • A maximum load of four amps allows multiple LitePads to be controlled from just one fader.
• Case ONLY for LitePad Quick Kit AX This is the Rosco Case ONLY for LitePad Quick Kit AX. It's smaller and lighter than the Pro Gaffer's Kit Case but will still hold a fair amount of gear including six LitePads, transformers, adapters, splitters cables, bracket, dimmer, filter packs, Swivel Arms and more. The hard-molded, unbreakable ABS construction protects the contents from bumps and vibrations while in transit. It will also help prevent any dust, water or other contaminants from damaging your equipment. The case is also chemical and corrosion proof making it a great choice for anyone who desires or requires maximum protection for their equipment. The interior is a dual layer of foam that is can be pick 'n plucked to accommodate each specific item. On the inside of the top cover, you'll find spaces for three (3) light stands that are held in place with touch fasteners. The case is supplied with two rugged wheels and a telescopic handle for easy navigation through parking lots, airports and hallways. Durable push button throw latches protect the case from accidental opening and an over-sized, foldable handle will provide a firm grip. In addition, you'll find a pressure valve on the exterior front for automatic pressure equalization that will compensate for any changes in atmospheric pressure when flying. This case is NATO codified and tested to MIL C-4150J (Military Standard), IP-67 (Ingress Protection) and ATA (Air Transportation Association). ATA 300 specs certify that the case will withstand the rigors of being shipped a minimum of 100 times. It also specifies that the case will have recessed handles that will not break during transit.

  For the videographer who is constantly on the go, this case is the way to go for your Quick Kit AX kit.
• Cinegel Swatchbook This is a 1.25 x 3.25" Swatchbook of Rosco Cinegel Series gels. Use this to pick the appropriate filters for your next purchase, or cut them out and tape them to small flash units. UPC: 053661105843
• LitePad Axiom 1/4"-20 Bracket The Rosco Axiom 1/4"-20 Bracket slides neatly into the quick release mounting system on the back of the Axiom and secures via the integral spring-action pin. The bracket connects with any accessory with a 1/4"-20 receiver.

• Transformer for 3x3", 3x6", 6x6" LitePads (120VAC)

• 10' Right Angle Extension Cable for LitePad

• Limited 1-Year Warranty

• LitePad Axiom 1/4"-20 Bracket

• LitePad Axiom Baby Pin Bracket

• Transformer for 3x3", 3x6", 6x6" LitePads (120VAC)

• 10' Right Angle Extension Cable for LitePad

• Limited 1-Year Warranty

• LitePad Axiom 1/4"-20 Bracket

• LitePad Axiom Baby Pin Bracket

• Transformer for LitePads - 3 Amps (120VAC)

• 10' Right Angle Extension Cable for LitePad

• Limited 1-Year Warranty

• LitePad Axiom 1/4"-20 Bracket

• LitePad Axiom Baby Pin Bracket

• Transformer for 3x3", 3x6", 6x6" LitePads (120VAC)

• 10' Right Angle Extension Cable for LitePad

• Limited 1-Year Warranty

• LitePad Axiom 1/4"-20 Bracket

• LitePad Axiom Baby Pin Bracket

• Transformer for LitePads - 3 Amps (120VAC)

• 10' Right Angle Extension Cable for LitePad

• Limited 1-Year Warranty

• LitePad Axiom 1/4"-20 Bracket

• LitePad Axiom Baby Pin Bracket

• Transformer for LitePads - 3 Amps (120VAC)

• 10' Right Angle Extension Cable for LitePad

• Limited 1-Year Warranty

• 4A Fuse

• One Year Manufacturer's Warranty

• One Year Manufacturer's Warranty

• 60 Day Manufacturer's Warranty

• One Year Manufacturer's Warranty

• One Year Manufacturer's Warranty

• One Year Manufacturer's Warranty

• One Year Manufacturer's Warranty

• One Year Manufacturer's Warranty

• Lifetime Warranty

• 60 Day Manufacturer's Warranty

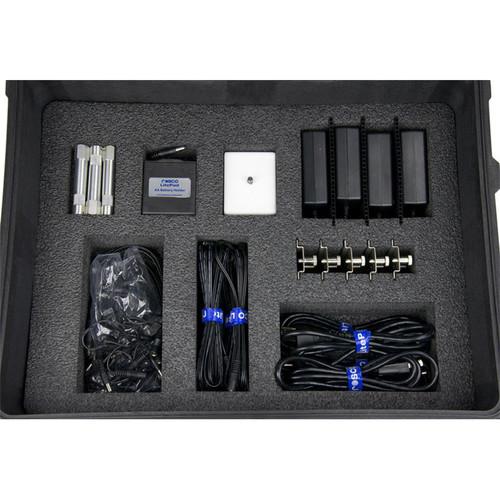

Also Includes

• Litepad AA Battery Holder with DC Cord
• 3 x 1/4-20 Baby (5/8) Pin
