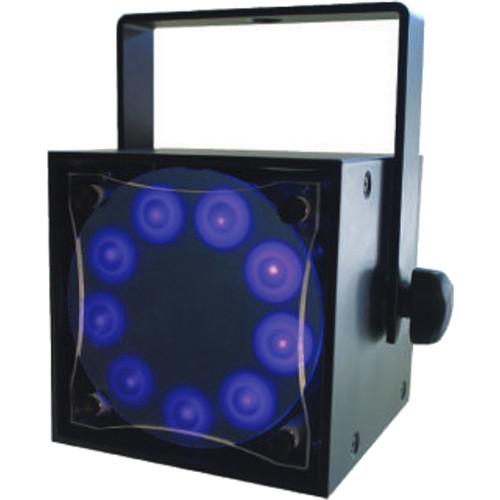

User Manual for Rosco Miro Cube UV Light Click to enlarge the picture
Contents of the user manual for the Rosco Miro Cube UV Light
- Product category: DJ & Effect Lights Rosco
- Brand: Rosco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rosco DJ & Effect Lights
|
User manual for the Rosco Miro Cube UV Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rosco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rosco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rosco product will considerably shorten its lifespan!
|
Product description The white Miro Cube UV Light from Rosco offers a 20,000 hr bulb lifespan, minimizing the inconvenience of regularly changing the lamps. It also contains fault detection and protection systems to prevent power spikes, environmental extremes, and mechanical failures from permanently damaging the cube. The light is designed to manage 50 W of LEDs in a 4" cube, allowing it to be used for small applications such as installed in a scenery piece or soffit. The Miro Cube is powered by a positive locking Neutrik Powercon connector and has one 5-pin XLR connector for DMX input and one for DMX output. For use without DMX, an intuitive full text LCD control panel allows manual control of the UV output of the fixure.
The 6600 mW of emitted power can be controlled and spread using the included set of lenses to create an extra long throw fixture or opened to full flood lighting for a wide expanse of light at a shorter distance. When tuned to a narrow 385 nm peak output, the cube's lights create a black light effect on fluorescent materials, such as paint and makeup. There is built-in dichroic glass technology for filtering out most visible light, removing unwanted indigo visible glow. The black light effect can also be faded with a full range of flicker-free dimming, and a filament mode can be set to mimic the fade of an incandescent lamp going black. - Optimal UV output creates black light effects on paint, makeup, and other fluorescent materials
- High-powered LED emitters with a 20,000 hour life for a maintenance-free installation
- Directly connects to 90 to 240 VAC mains power
- Comes with a lens set including a 20° spot, 40° medium, and 60° wide flood
- Flicker-free DMX dimming and control
- Intuitive full text LCD panel for manual operation
- Compact design suitable for mounting in small spaces or museum/themed installations
- Auto temperature sensing with fault detection and protection
In the Box Rosco Miro Cube UV Light (White) Power Cable Diffuser Pack Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rosco Miro Cube UV Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRosco Miro Cube Specs | LED | 9 x 5 W UV emitters | | Output | 6600 mW | | Lumen Output | 20,000 hr L90 at 77°F / 25°C | | Color Range | Peak 380 to 385 nm | | Operation | DMX: 8- or 16-bit DMX512
Manual: full text LCD user interface sets color output | | Input Voltage | 90 to 240 VAC, 50/60 Hz | | Connections | Neutrik Powercon: AC input
1 x 5-pin XLR male
1 x 5-pin XLR female DMX | | Power Consumption | 48 W at maximum output | | Operating Temperature | -13 to 113°F / -25 to 45°C | | Humidity | 0 to 95% RH, non-condensing | | Approvals and Compliance | FCC Class A Radiated and Conducted
ETL/UL Standards 1573 and 8750
cETL/CSA C22.2#166-M1983
CE
RoHS Compliant
IP20 Rated | | Housing | Powder coated aluminum extrusion | | Dimensions | 4.0 x 4.0 x 4.3" / 10.2 x 10.2 x 10.8 cm | | Weight | 2.1 lb / 1.0 kg |
