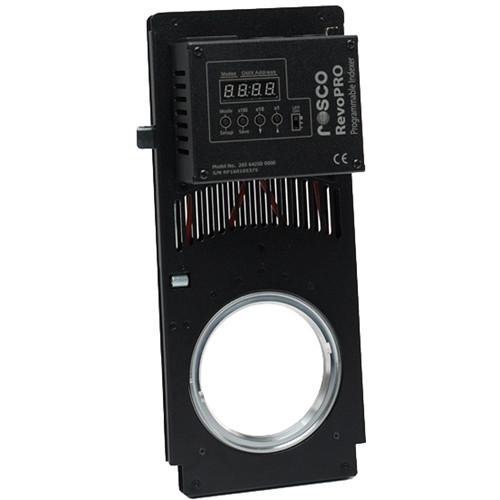

User Manual for Rosco RevoPRO Dual Programmable Rotator Click to enlarge the picture
Contents of the user manual for the Rosco RevoPRO Dual Programmable Rotator
- Product category: Accessories for Gobos & Patterns Rosco
- Brand: Rosco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rosco Accessories for Gobos & Patterns
|
User manual for the Rosco RevoPRO Dual Programmable Rotator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rosco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rosco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rosco product will considerably shorten its lifespan!
|
Product description Compatible with the standard iris slot on ETC Source Four, ETC S4 Zoom, Selecon Pacific, Selecon Pacific Zoom, and Altman Shakespeare ellipsoidals, the RevoPRO Dual Programmable Rotator from Rosco allows you to project swaying trees, rippling waves, shimmering light, textures, patterns, and more onto your set or subject. The Rotator accepts size B, 86 mm outer diameter metal, glass, and effects glass gobos that can rotate at speeds adjustable from 0.5 to 24 rpm with 370-degree 8- or 16-bit indexing. The RevoPRO has seven operation modes that can be controlled by the onboard DMX and has a 99 Preset Effects Library. The RevoPRO Dual Programmable Rotator can be used worldwide thanks to its 100-240 VAC power supply. - Benefits
-
- High temperature silicon belt drive for silent operation
- 100-240 VAC auto-sensing internal power supply for global installation
- Onboard 5-pin DMX input and pass thru for quick installation anywhere in the DMX chain
- Dual, independent stepper motors allow for any combination of speed and direction between gobos
- Precise and reliable stepper driver provides constant torque to prevent stalls even at slow speeds
- 8- or 16-bit indexing control on both gobos allows a designer to create effects without limits
- 7 Modes of DMX control for maximum flexibility at the console
- 99 Preset Effects Library for stand-alone (no DMX) operation
- 1 Stored effect location to customize speed and direction without DMX
- Gobo installs using a unique threaded collar to prevent slipping with gobos from 0.1 -3.5mm thick
- Innovative "Friction Lock" for secure installation
In the Box Rosco RevoPRO Dual Programmable Rotator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rosco RevoPRO Dual Programmable Rotator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRosco 205642500000 Specs | Power | 100-240 VAC 50/60 Hz, 1 A max | | Connections | IEC C13 on mains power cable
Data: 5-Pin XLR input and pass thru for DMX | | Speed | 0.5 - 24 rpm | | Movement | 8-Bit Indexing: 370° (1.45° steps)
16-Bit Indexing: 370° (0.005° steps) | | Compatible Gobos | Type: Metal, glass, effects glass
Gobo Size: 3.15 - 3.39" / 80 - 86 mm
Gobo Thickness: 0.14" / 3.5 mm | | Compatible Light Unit | ETC Source Four, ETC S4 Zoom, Selecon Pacific, Selecon Pacific Zoom, Altman Shakespeare | | Control | DMX512: 7 operation modes using 2, 4, or 6 channels of DMX
99 Preset Effects Library
1 Stored address for custom speed and direction configuration | | Dimensions | 4.67 x 10.9 x 0.53 - 2.4" / 119 x 276.2 x 13.5 - 62 mm | | Weight | 31 oz / 880 g |
