User Manual for Rosco RoscoLED Tape 12V VariWhite Tile with Barrel Connector Click to enlarge the picture
Contents of the user manual for the Rosco RoscoLED Tape 12V VariWhite Tile
- Product category: DJ & Effect Lights Rosco
- Brand: Rosco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rosco DJ & Effect Lights
|
User manual for the Rosco RoscoLED Tape 12V VariWhite Tile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rosco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rosco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rosco product will considerably shorten its lifespan!
|

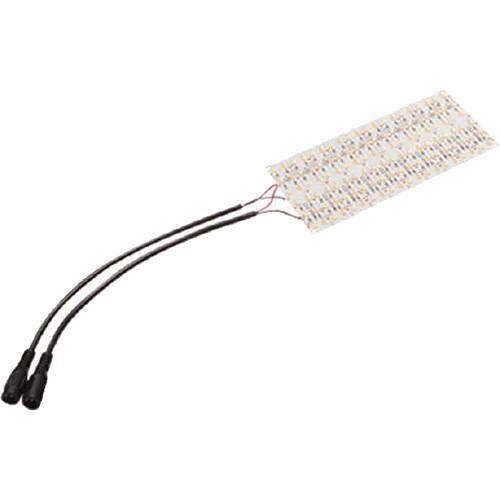

Product description The 3x6" Rosco RoscoLED Tape 12V VariWhite Tile with Barrel Connector provides filmmakers and set designers with a versatile solution for incorporating large amounts of high-quality, variable-white LED light in confined areas such as cars, plane interiors, and more.The tile generates clean and bright light with 93 CRI, 92 TLCI, and color temperature ranging from 3000 to 5600K. It comes pre-configured with a 0.08" / 2.1mm DC barrel connector designed to quickly plug into RoscoLED 12 VDC power and dimming accessories (available separately). - High-Quality Color Rendering
-
- High-output LED white light with 93 CRI and 92 TLCI
- 3000 to 5600K variable color temperature
- Mixes with other non-LED light sources for seamless project integration, without additional filtration or modification of the LEDs
- Bright and Efficient Output
-
- Three LEDs per 1" for clean and bright variable white light
- Produces 1500 lumens per 3.2'
- Plug-and-Play Connectivity
-
- Tile comes pre-configured with a 0.08" / 2.1mm DC barrel connector
- Designed to quickly plug into RoscoLED 12 VDC power and dimming accessories (available separately)
- Durable Construction
-
- Tile features a robust 3 oz copper heat sink
- Integrated copper enables efficient thermal management of the LED emitters, allowing them to run cooler and extend their lifespan
- Thick copper base minimizes the potential for damage to the electronic circuits during handling and installation
- Rate IP43 for indoor use only
In the Box Rosco RoscoLED Tape 12V VariWhite Tile with Barrel Connector (3000 to 5600K, 3x6") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rosco RoscoLED Tape 12V VariWhite Tile with Barrel Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRosco RoscoLED Tape VariWhite Specs | Size | 3 x 6" / 7.62 x 15.24 cm | | Light Source | LED Configuration: 3 x Emitters per 1" / 2.54 cm | | Color Temperature | 3000 to 5600K, variable | | Lumens | 38 lumens at 1" / 2.54 cm
1500 lumens at 3.2' / 1 m | | CRI | 93 | | TLCI | 92 | | Connector | 0.08" / 2.1 mm barrel connector | | Heat Sink | 3 oz / 85 g, copper | | Material | Silicone coating | | IP Rating | IP43, for indoor use only | | Voltage | 12 VDC | | Power Consumption | 19.2 W, 1.6 A |
