User Manual for Rosco RoscoLED Tape VariWhite Ultra Click to enlarge the picture
Contents of the user manual for the Rosco RoscoLED Tape VariWhite Ultra
- Product category: DJ & Effect Lights Rosco
- Brand: Rosco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rosco DJ & Effect Lights
|
User manual for the Rosco RoscoLED Tape VariWhite Ultra contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rosco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rosco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rosco product will considerably shorten its lifespan!
|

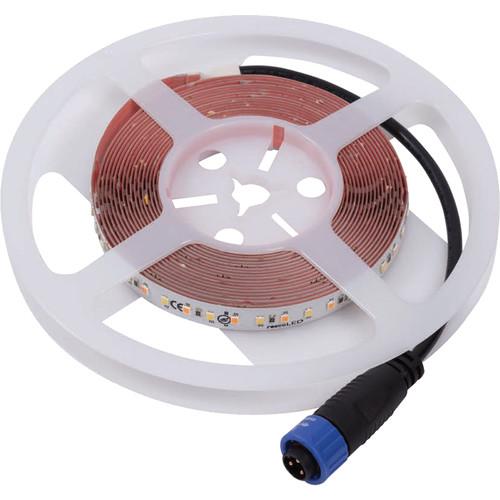

Product description The 16.4' reel of Rosco RoscoLED Tape VariWhite Ultra provides filmmakers, DJs, and set designers with a versatile solution for incorporating large amounts of high-quality, variable-white LED light into their set pieces, graphics, or background panels for creating dramatic accent lighting, even in demanding environments. The tape features 60 CW (cool white) and 60 WW (warm white) LEDs per 3.2', which generate 1400 lumens of clean and bright light with 93 CRI, 92 TLCI, and color temperature ranging from 1800 to 6000K. It comes pre-configured with a multi-pin connector designed to quickly plug into RoscoLED control boxes, extension cables, or splitters, with no field soldering required. This durable and flexible LED tape is equipped with a robust 3 oz copper heat sink which enables efficient thermal management of the diodes, allowing them to run cooler and extending their lifespan. The thick copper base minimizes the potential for damage to the electronic circuits during handling and installation. Allowing for fully customizable solutions, the RoscoLED tape is field-cuttable with cut points every 3.94". A mating female connector with pigtails is also included for connection to standalone power and dimming controls (available separately). - High-Quality Color Rendering
-
- High-output LED white light with 93 CRI and 92 TLCI
- 1800 to 6000K variable color temperature
- Mixes with other non-LED light sources for seamless project integration, without additional filtration or modification of the LEDs
- Bright and Efficient Output
-
- 60 cool white (CC) + 60 warm white (WW) SMD2835 white LEDs per 3.2', for clean and bright white light
- Produces 1400 lumens per 3.2' while only consuming 95W of energy
- Plug-and-Play Connectivity
-
- Reel comes pre-configured with a multi-pin connector
- Designed to quickly plug into the control box—no field soldering required
- Fully Customizable Solutions
-
- Field-cuttable tape with cut points every 3.94"
- Durable Construction
-
- Reel features a robust 3 oz copper heat sink
- Integrated copper enables efficient thermal management of the LED emitters, allowing them to run cooler and extend their lifespan
- Thick copper base minimizes potential for damage to the electronic circuits during handling and installation
- IP43 rating
In the Box Rosco RoscoLED Tape VariWhite Ultra (1800 to 6000K, IP43, 16.4' Reel) Mating Female Connector with Pigtails Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rosco RoscoLED Tape VariWhite Ultra in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRosco RoscoLED Tape VariWhite Specs | Length | 16.4' / 5 m | | Light Source | LED Type: SMD2835
LED Configuration: 1 x Row, with cut point every 3.94" / 10.0 cm
LED Distribution: 120 LEDs per 3.2' / 1 m (60 CW + 60 WW) | | Color Temperature | 1800 to 6000K, variable | | Lumens | Output: 1400 lumens at 3.2' / 1 m
Lumen Maintenance: >47,000 hours L70 at 105C (IESNA LM-80-08 standard) | | CRI | 93 | | TLCI | 92 | | Heat Sink | 3 oz / 85 g, copper | | IP Rating | IP43 | | Voltage | 24 VDC | | Power Consumption | 19 W/m or 95 W per reel | | Operating temperature | -4 to 140°F / -20 to 60°C | | Approvals | UL listed
CE certified |
