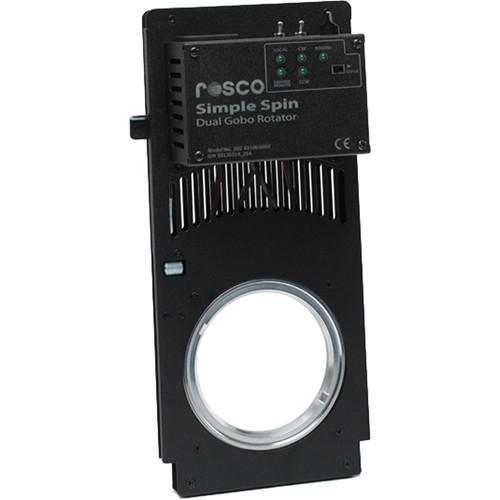

User Manual for Rosco SimpleSpin Dual Gobo Rotator Click to enlarge the picture
Contents of the user manual for the Rosco SimpleSpin Dual Gobo Rotator
- Product category: Accessories for Gobos & Patterns Rosco
- Brand: Rosco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rosco Accessories for Gobos & Patterns
|
User manual for the Rosco SimpleSpin Dual Gobo Rotator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rosco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rosco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rosco product will considerably shorten its lifespan!
|
Product description The SimpleSpin Dual Gobo Rotator from Rosco is an accessory with a built-in power supply that allows you to rotate two 80 or 86mm outer diameter metal or glass gobos from 0.1 to 3.5 mm thick, in opposing directions using select light fixtures. The SimpleSpin has a variable speed stepper motor with speeds from 0.5 to 24 rpm adjustable on the unit, but is also able to use an external dimmer as a potentiometer to regulate speed. The SimpleSpin is compatible with ETC Source Four, ETC S4 Zoom, Selecon Pacific, Selecon Pacific Zoom and Altman Shakespeare lights. - Value Engineered
- SimpleSpin combines the perfect mix of a budget conscious price tag and features that really matter to a designer, electrician, or event planner. A single, variable speed stepper motor is used to rotate two B size gobos. Always rotating in opposition, the movement can be as slow as 0.5 rpm for building subtle, naturalistic effects. The maximum speed of 24 rpm is perfect for creating a raging inferno or wild kinetic effects.
- Simple but Sophisticated
- SimpleSpin is primarily a manual control, "set and forget" device. Define the perfect look for your lighting effect by precisely trimming the speed control knob and then simply power the SimpleSpin up and down from the mains. This is especially convenient in venues where more sophisticated DMX control is either unavailable or unnecessary. In instances where varying speed control is needed, SimpleSpin can be plugged into a dimmer and controlled by a lighting desk. Configured this way, the speed of rotation will increase or decrease as the level on the dimmer goes up or down.
- Reliable
- "Stall proof" is how one technician described the SimpleSpin. Using a stepper motor and thoughtfully engineered control circuitry avoids one of the most common complaints lodged against budget rotators - low speed stalls and insufficient torque.
- Benefits in Brief
-
- High temperature silicon belt drive for silent operation.
- 100-240 VAC auto-sensing internal power supply for global installation.
- Precise and reliable stepper motor provides constant torque to prevent stalls even at slow speeds.
- Advanced electronics allow for a dimmer-remote mode.
- Gobo installs using a unique threaded collar to prevent slipping with gobos from 0.1 - 3.5 mm thick.
- Innovative "Friction Lock" for secure installation.
- Convenience controls to reverse direction and black out indicator lights.
In the Box Rosco SimpleSpin Dual Gobo Rotator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rosco SimpleSpin Dual Gobo Rotator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRosco 205631000000 Specs | Compatibility | ETC Source Four, ETC S4 Zoom, Selecon Pacific, Selecon Pacific Zoom, Altman Shakespeare | | Gobo Size | Metal, Glass, Effects Glass:
Outer Diameter: Max 3.39" (86 mm)
Outer Diameter: Min 3.15" (80 mm)
Image Area: Max 2.95" (75 mm)
Thickness: 0.0039 - 0.14" (0.1 - 3.5 mm) | | Speed | 0.5 to 24 rpm | | Power | 100-240 VAC 50/60 Hz, 1 A max | | Connector | IEC C13 on mains power cable | | Control | On board potentiometer dimmer-remote option | | Dimensions | Without Control Box: 4.67 x 10.37 x 0.53" (119 x 263.5 x 13.5 mm)
With Control Box: 4.67 x 10.37 x 2.4" (119 x 263.5 x 13.5 x 62 mm) | | Weight | 22.4 oz (630 g) |
