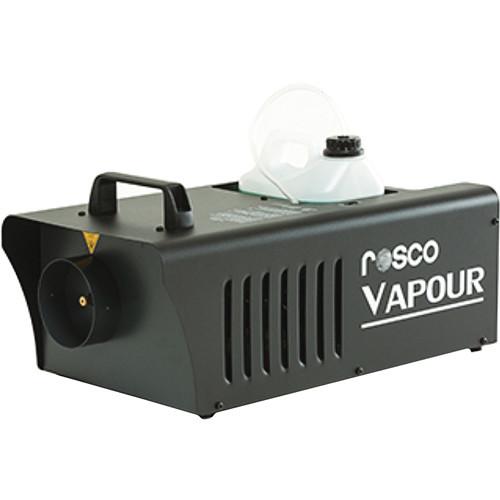

User Manual for Rosco Vapour Fog Machine Click to enlarge the picture
Contents of the user manual for the Rosco Vapour Fog Machine
- Product category: Fog & Haze Machines Rosco
- Brand: Rosco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rosco Fog & Haze Machines
|
User manual for the Rosco Vapour Fog Machine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rosco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rosco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rosco product will considerably shorten its lifespan!
|
Product description The Rosco Vapour Fog Machine combines high-volume, continuous fog output, with a simple, one-step cleaning process and common core components that are designed to be replaced quickly. Precise output control allows the Vapour the widest range of atmospheric effects and makes it versatile for use in almost any venue. Careful monitoring of temperature and pump speed results in both fine wisps of smoke or billowing, continuous clouds of fog. There are two control options: a detachable timed remote offers convenient local control of output and operation, and an integrated DMX interface with XLR 5-pin connections allows for programmed fog effects via a lighting console, with the unit being easily addressable via the three-button control interface. An air-input/purge connection accepts 1/4" tubing to allow compressed air to clean the unit. For maximum versatility, a Multi-Link feature allows a single Vapour Remote to control up to four Vapour, Vapour Plus, or V-Hazer units that are daisy-chained together via XLR 3-pin. In the Box Rosco Vapour Fog Machine Detachable Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rosco Vapour Fog Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRosco Vapour Specs Wattage | 1,200 W | Maximum Fluid Consumption | 3.6 liter/hour | Maximum Fluid Capacity | 1.0 gallon / 4.0 liters | DMX Connectors | Input: XLR 5-Pin Output: XLR 5-Pin | Control | Knobs: fog level, fog off time, fog on time (up to 250 seconds) Buttons: fog (toggles fog on/off), standby, timer (engages timer mode) LED Indicators: power and time Connector: XLR 3-Pin Cable Length: 15' / 4.5 m The remote panel can be disconnected to control the unit from a distance. | Daisy Chain | Types: Vapour, Vapour Plus, or V-Hazer units Amount: up to 4 units Connector: XLR 3-Pin | Power Requirements | 120 VAC, 60 Hz Power cable is hardwired | LED Indicators | Heat: illuminates red while heating Ready: illuminates green when ready for fogging | Housing | Rugged 12-gauge steel case, chip-resistant powder-coated paint | Approvals | CE, RoHS, AMPTP #10 ETL / cETL pending | Dimensions | 22.6 x 10.9 x 9.8" (574.0 x 278.0 x 249.0 mm) | Weight | 24.25 lb (11 kg) | | Package Weight | 29.2 lb | Box Dimensions (LxWxH) | 26.0 x 15.0 x 13.0" |
