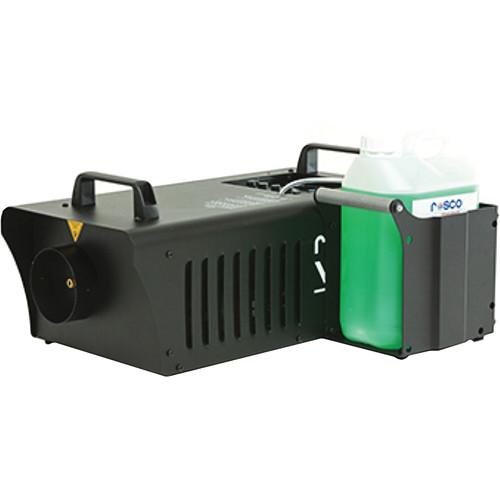

User Manual for Rosco Vapour Plus Fog Machine Click to enlarge the picture
Contents of the user manual for the Rosco Vapour Plus Fog Machine
- Product category: Fog & Haze Machines Rosco
- Brand: Rosco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rosco Fog & Haze Machines
|
User manual for the Rosco Vapour Plus Fog Machine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rosco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rosco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rosco product will considerably shorten its lifespan!
|
Product description The Rosco Vapour Plus Fog Machine is designed specifically to fill large venues and outdoor spaces by producing large amounts of fog quickly and efficiently. The sophisticated software driving the Vapour Plus precisely balances the heating and pump cycles to ensure you have enough fog when you need it. At 100% output, the Vapour Plus will run for a full 60 seconds before a short re-heating cycle is needed, and the output of this machine is capable of consuming more than 7 liters of fluid per hour.
This fogger is small enough to mount inside a box truss and is powered from a single mains circuit. A rotating bottle carriage allows the Vapour Plus to be placed in either the traditional horizontal position or in a vertical orientation. This feature, coupled with the large fog blasts produced by the Vapour Plus, allows the machine to produce cryogenic-type burst effects without the hassle of handling or storing large dewar tanks of C02.
Two control options are standard in the Vapour Plus: a detachable timed remote offers convenient local control of output & operation, and an integrated DMX interface allows programmed fog effects via a lighting desk. For maximum versatility, a Multi-Link feature allows a single Vapour remote to control up to four Vapour, Vapour Plus, or V-Hazer units that are daisy-chained together via 3-pin XLR. In the Box Rosco Vapour Plus Fog Machine Detachable Remote with 10' Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rosco Vapour Plus Fog Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRosco Vapour Plus Specs | Wattage | 1500 W | | Power Requirements | 13.6 A at 110 V AC / 60 Hz
6.5 A at 230 V AC / 50 Hz | | Output | Maximum 7.2 liter / hour fluid consumption | | Control | On-board, detachable, timed remote - 250 second duration, 10' (3 m) cable
Integrated, digital DMX w/ 5-pin XLR
Input & pass-thru
Optional closed-contact, 0-10 V interface | | Housing | Rugged 12 g steel case
Chip resistant powder-coated paint
Hard point attachments for hanging brackets | | Approvals | CE ETL / cETL pending
Listed for use by Actor's Equity
AMPTP Safety Bulletin #10 compliant
RoHS Compliant | | Dimensions | 19.7 x 10.9 x 9.8" (50.0 x 27.7 x 24.9 cm) | | Weight | 31 lb (14.1 kg) | | | | Package Weight | 36.58 lb | | Box Dimensions (LxWxH) | 27.8 x 15.2 x 14.9" |
