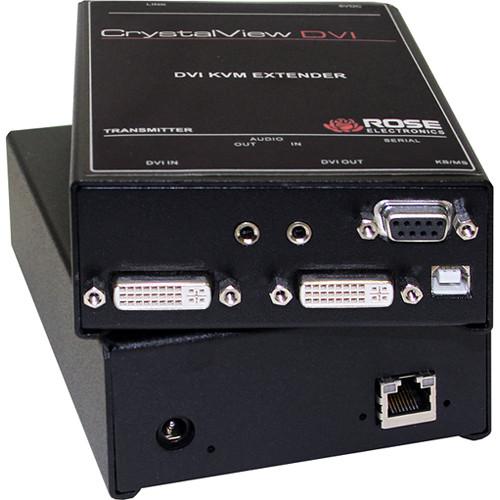

User Manual for Rose Electronics CrystalView DVI Dual-Head USB 2.0 over CATx Extender Kit Click to enlarge the picture
Contents of the user manual for the Rose Electronics CrystalView DVI Dual-Head USB
- Product category: KVM Extenders Rose Electronics
- Brand: Rose Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rose Electronics KVM Extenders
|
User manual for the Rose Electronics CrystalView DVI Dual-Head USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rose Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rose Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rose Electronics product will considerably shorten its lifespan!
|
Product description Provided by third party: The CrystalView DVI CATx is the KVM extender of choice for businesses that need to extend and operate a computer, server, or KVM switch from a great distance. The CrystalView DVI CATx makes this possible by the use of standard CAT5, 5e, 6, or 7 cables. You can fully operate and control a computer or server from as far away as 400 feet using standard CATx cable. It supports all combinations of DVI monitors and video cards.
The system consists of two units, a transmitter and a receiver. The transmitter connects to your CPU's keyboard, DVI monitor, and mouse connectors, or to a Rose KVM switch. The receiver connects to a keyboard, DVI video monitor and mouse or KVM station. The transmitter and receiver are connected together with CATx industry standard cable.
- Key Features
-
- Supports DVI-D video mode and PS/2 or USB keyboards and mice
- Extend a KVM station up to 400' from a CPU over CATx cable
- Video resolutions up to 1920 x 1200 at 60Hz
- Supports 18-bit color (256,000 colors)
- Compatible with all operating systems
- Fully automatic KVM sharing
- Status and data error indicators on all units
- Easy installation and operation
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics CrystalView DVI Dual-Head USB 2.0 over CATx Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics CRK-2DTXTD2D Specs | | | Device Type | KVM extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Keyboard / Mouse Interface | PS/2 | | Max Resolution | 1920 x 1200 @ 60 Hz | | Max Transfer Distance | 394 ft | | Status Indicators | Power, error, status | | | | Interfaces | 2 x DVI-I
1 x PS/2 keyboard
1 x PS/2 mouse | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V | | Power Consumption Operational | 10 Watt | | | | Width | 3.9 in | | Depth | 5.7 in | | Height | 1.2 in | | Weight | 10.58 oz | | | | Min Operating Temperature | 41
