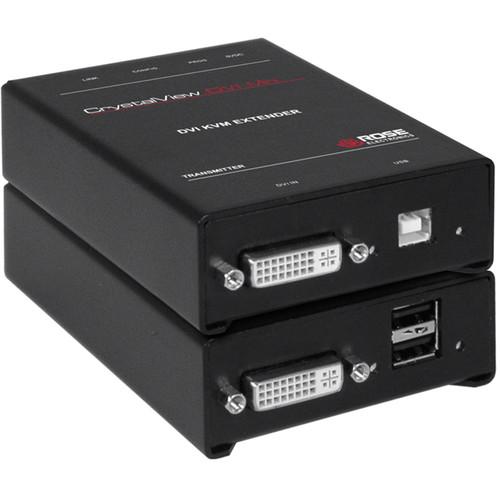

User Manual for Rose Electronics CrystalView DVI Mini Dual-Head USB 2.0 over CATx Extender Kit Click to enlarge the picture
Contents of the user manual for the Rose Electronics CrystalView DVI Mini Dual-Head
- Product category: KVM Extenders Rose Electronics
- Brand: Rose Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rose Electronics KVM Extenders
|
User manual for the Rose Electronics CrystalView DVI Mini Dual-Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rose Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rose Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rose Electronics product will considerably shorten its lifespan!
|
Product description Provided by third party: The CrystalView Mini DVI is the ideal product to extend a keyboard, mouse and DVI monitor from the connected computer. It's small in size but produces excellent quality DVI-D video with no degradation at all resolutions. The CrystalView Mini DVI supports DVI-D graphic cards with resolutions up to 1920 x 1200 at 60Hz.
Simple adjustments can be made using the dip switches located on the transmitter and receiver. The dip switches on the receiver can be set, if needed, to specify the CATx cable length used between the transmitter and receiver. These settings should only be modified if the CATx cable length is very short or the image quality not satisfactory. The default setting is for cable lengths greater than approximately 100 feet (30 meters). The dip switches on the transmitter can be set, if needed, to specify the monitor resolution. In most cases, the cable length and monitor resolution default settings are suitable for all conditions and no adjustments are needed.
The CrystalView Mini DVI extender supports a wide range of USB HID devices. All standard 2 button, 3 button, and wheel mice and all standard keyboards are supported. Other HID devices such as touch-screens, graphic tablets, barcode readers or similar HID devices may function properly but are not guaranteed. The CrystalView Mini DVI only supports a maximum of two USB HID devices.
- Key Features
-
- Supports all operating systems and computers with a DVI-D graphic interface (uncompressed)
- No video quality degradation at all resolutions
- Use the internal EDID configuration or read the information directly from the remote monitor
- Supports USB keyboards, mice and other HID devices like touch screens and graphic tablets
- Selectable CATx cable length settings provides for the best, clearest image
- Automatic or manual resolution configuration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics CrystalView DVI Mini Dual-Head USB 2.0 over CATx Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics CRK-M1DTXTD2D Specs | | | Device Type | KVM extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Keyboard / Mouse Interface | USB | | Max Resolution | 1920 x 1200 @ 60 Hz | | Max Transfer Distance | 164 ft | | Status Indicators | Power, link/activity | | | | Interfaces | 2 x DVI-I
2 x USB 2.0 - Type A | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V | | | | Min Operating Temperature | 41
