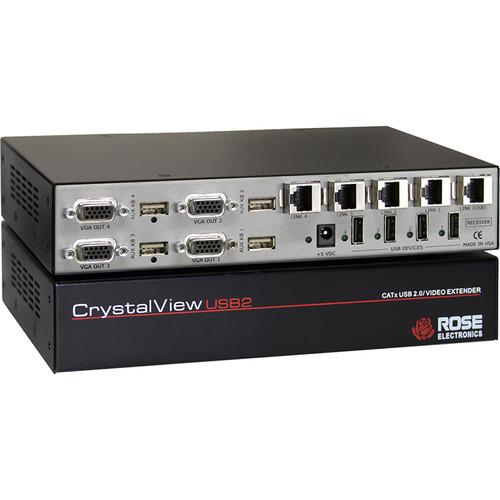

User Manual for Rose Electronics CrystalView USB2 2.0 Single VGA CATx Extender with Uni-Directional Audio Click to enlarge the picture
Contents of the user manual for the Rose Electronics CrystalView USB2 2.0 Single
- Product category: KVM Extenders Rose Electronics
- Brand: Rose Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rose Electronics KVM Extenders
|
User manual for the Rose Electronics CrystalView USB2 2.0 Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rose Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rose Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rose Electronics product will considerably shorten its lifespan!
|
Product description Provided by third party: The CrystalView USB2 Video and USB extender is the extender of choice for extending single, dual, or quad video and USB devices up to 150 feet from the controlling computer. The CrystalView USB2 extender makes this possible by the use of standard CATx cable. You can view single, dual, or quad video and fully operate and control your USB devices from as far away as 150 feet using standard CATx cable.
Remotely accessing your USB devices is made convenient in a variety of situations. You can locate users away from hazardous industrial environments where the USB device is located, locate devices away from areas vulnerable to theft of hardware and data, reduce noise and heat; increase desk and floor space.
Transmit high quality single, dual, or quad video using CATx cable. Cable length is no problem. The CrystalView USB2 automatically adjusts the video compensation and gain based on the cable length.
- Key Features
-
- Supports USB 1.1 (low and full speed) and USB 2.0 (high-speed)
- Extend single, dual, or quad video and USB 2.0 peripherals up to 150 ft (50m) from a CPU using CATx cable (CAT5, 5e, 6, or 7)
- Cable length compensation adjustments (Equalization and gain) are automatically performed
- Video equalization and gain can be fine tuned with simple keyboard commands
- Automatic video skew adjustments (optional)
- VESA enhanced DDC enables plug-and-play capability
- Flash upgradeable firmware prevents obsolescence
- SVGA, VGA, XGA, RGB video modes
- Single, Dual, or Quad head VGA video cards
- USB or PS/2 keyboards and mice
- USB 2.0 high-speed peripherals
- Video resolutions up to 1920 x 1200 @ 60Hz
- Up to 500 ma of power is available at each USB port for powering high-power USB devices
- Optional +12V power adapter for the transmitter (Needed if USB port power in inadequate to power the transmitter)
- Operating system independent
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics CrystalView USB2 2.0 Single VGA CATx Extender with Uni-Directional Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics CRK-1VH4U2TP-330/A1 Specs | | | Device Type | Video/USB extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Max Resolution | 1920 x 1200 | | Max Transfer Distance | 328 ft | | Status Indicators | Status | | | | Interfaces | 4 x VGA - HD-15
4 x USB 2.0
1 x audio - mini jack | | | | Compliant Standards | Plug and Play, DDC | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50 - 60 Hz) | | Power Consumption Operational | 20 Watt | | | | Width | 8.8 in | | Depth | 5.7 in | | Height | 1.7 in | | Weight | 3.31 lbs | | | | Min Operating Temperature | 41
