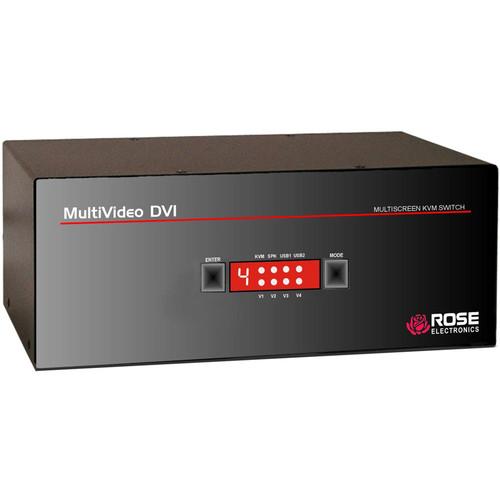

Product description The MultiVideo 1x4 Dual-Link Tri-Video DVI-I Switch from Rose Electronics is suitable for switching tri-head computer digital or analog video sources simultaneously to up to four remote monitors, one and keyboard, and a mouse. Clear video resolutions of up to 2560 x 1600 make this unit a good fit to any video environment.Switching and selections are made easy using the front panel display, hotkey sequences, or serial switching commands on a remote computer via a serial cable. The MultiVideo DVI can be connected to an additional identical unit and synchronized to switch video from multiple computers. For example, when a switching command is sent to the master unit, the same switching command is sent to the secondary unit. Therefore, both units are switched to the same CPU port and display the same video on all connected monitors.The KVM, USB peripherals, and audio can all be switched in conjunction to a selected CPU port, or can be switched independently to separate ports. - Ideal for switching tri-head computer digital or analog video sources simultaneously to up to four remote monitors, one keyboard, and a mouse
- Supports video resolutions up to 2K (2048 x 1080) / WQXGA (2560 x 1600)
- Select a computer using the front panel switches, hotkeys, or the mouse buttons
- Switch dual link digital video up to 300MP/sec
- Front panel indicator shows the currently active channel, which peripherals are switched to the active channel, keyboard/mouse activity, and power
- Digital or analog video support (analog requires a DVI to VGA adapter)
- Supports a wide range of USB 2.0 peripherals (HID and transparent devices)
- RS232 serial port for firmware upgrades and synchronizing Vista DVI switch units so multiple computers/video screens can be switched and accessed
- Remote serial port switching
In the Box Rose Electronics MultiVideo 1x4 Dual-Link Tri-Video DVI-I Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics MultiVideo 1x4 Dual-Link Tri-Video DVI-I Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics MDM-4T3DDL/A1 Specs | Power | 100-240 VAC, 50-60 Hz | | Adapter | +5 VDC, 4 A, 10-20 W | | Resolution | Single-Link DVI: 1920 x 1200
Dual-Link DVI: 2560 x 1600 | | Distance | 25' (7.6 m) | | Connectors | Video: DVI, female
Keyboard: USB Type A
Mouse: USB Type A
Audio: 3.5 mm Mini jack, female
USB 2.0 Device: Two USB Type A
USB 2.0 Host: USB Type B
Power: Barrel jack | | Controls | Computer/Mode: Front panel push-buttons
Selected Computer: LED digit
Selected KVM / Speaker / USB1 / USB2: Red LED per port | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -13 to 140°F (-25 to 60°C) | | Relative Humidity | 5 to 80%, Non-condensing | | Dimensions (W x D x H) | 10.2 x 5.9 x 3.9" (260 x 150 x 100 mm) | | Weight | 5 lb (2.3 kg) |
