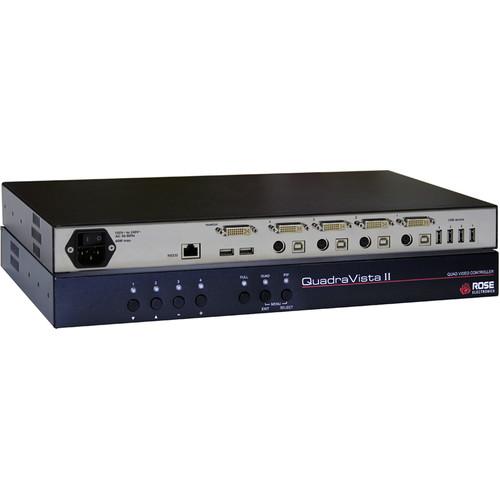

User Manual for Rose Electronics QuadraVista 2 Professional Quad Video KVM Switch Click to enlarge the picture
Contents of the user manual for the Rose Electronics QuadraVista 2 Professional Quad
- Product category: KVM Switches Rose Electronics
- Brand: Rose Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rose Electronics KVM Switches
|
User manual for the Rose Electronics QuadraVista 2 Professional Quad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rose Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rose Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rose Electronics product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The QuadraVista 2 Professional Quad Video KVM Switch from Rose Electronics allows a user to connect to, control, and display four computers on a single monitor or access a KVM switch to connect multiple computers. The QuadraVista 2 provides four viewing modes: Quad Screen, Dual screen, Picture-in-Picture (PiP) and Full Screen. Control of a selected computer can be done while in any of the three modes. View four computers in the quad-screen mode and control any one of them while monitoring, in real time, the other three computers.In the PiP mode you can view one display on a full screen while monitoring smaller displays of the other three computers. The on-screen menus make configuring, monitoring, and computer and USB switching quick and easy. An On-Screen display can be opened to identify the active window.The switch supports all combinations of both VGA and single-link DVI video cards and monitors. Each CPU port can be configured for VGA or DVI (analog or digital) and QuadraVista 2 can process these signals simultaneously. The video can be viewed on a digital or analog monitor. Connect a touch-screen monitor and operate and control the connected computers. Add a USB device and connect it to any of the computers. - Four view modes available: Single, Dual, Quad, and PiP modes
- Monitor and operate the connected computers using a touch-screen monitor
- Connects to four computers making each video source viewable and controllable on a single monitor
- Quad mode displays four computers on one screen
- PiP mode displays one computer display in full screen with three thumbnail displays
- Dual mode displays the left half of two channels
- Easy-Find active-window feature
- Connect up to 4 USB 2.0 devices and connect one device to any computer
- On-screen menus for easy setup, configuration, and use
- Video resolution up to 1920 x 1200 @ 60 Hz for DVI video and 1600 x 1200 @ 60hz for VGA video
- Keyboard commands and front-panel controls for changing display modes
- Switch to and control any of the four screens while monitoring the other three connections in real time
- VGA and single-link DVI video support
- Supports USB computers, PS/2 computers, including SUN and MAC
- Connect to KVM switches to view and control multiple computers, routers, Ethernet switches or other devices
- Deploy with Rose CrystalView Fiber Extenders to view and control computers up to six miles away
- Quick and simple to install
In the Box Rose Electronics QuadraVista 2 Professional Quad Video KVM Switch Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics QuadraVista 2 Professional Quad Video KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics QV-4KVMDVI-2 Specs | USB Ports | 4 x USB 2.0 | | Connectors | Power - IEC320
CPUs: DVI, PS/2 or USB
4 x USB 2.0 Type A ports
User station: DVI, USB
RS232: RJ-12 (6-pin) | | Power | 90 - 240 VAC, auto-switching 40 W | | Resolution | Up to 1900 x 1200 @ 60 Hz (DVI)
1600 x 1200 @ 60 Hz (VGA) | | Controls | Power on/off switch, port-selector switches
Single/Quad/PIP mode | | Indicators | Chassis Power, CPU select | | Chassis | Electro-galvanized steel, black powder-coated (Top cover) | | Environmental | 32 to 113°F (0 to 45°C), 0 to 80% RH (non-condensing) | | Approvals | CE | | Dimensions (W x D x H) | 17.2 x 9.15 x 1.75" (436.9 x 232.4 x 44.45 mm) | | Weight | 6.1 lb (2.77 kg) |
