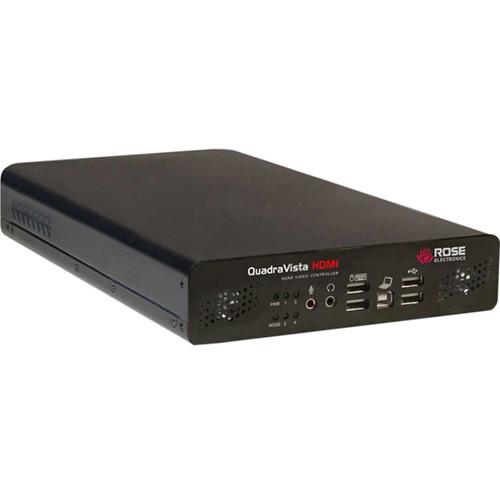

Product description Multi-Monitors: Maximizing Multitasking Read More The QuadraVista HDMI 1 x 4 Video KVM Switch from Rose Electronics is a flexible and powerful multi-viewer unit with the capability to control and monitor up to four HDMI video sources on a single display. Each of the quadrants can be adjusted and positioned to any size or location on the display. The QuadraVista HDMI can be accessed locally, sending ASCII commands using HyperTerminal, or from a third-party controller for control over IP. The QuadraVista HDMI provides simultaneous support for HDMI and DVI video. The video features that the QuadraVista HDMI includes are automatic sensing of the input signal, Picture-in-Picture, video-loss detection and automatic output monitor-resolution detection.The front-panel LEDs indicate the mode the unit is operating in. The MODE LED is green when the unit is online and control is via the connected keyboard and mouse. A yellow LED indicates that the unit is controlled from a remote computer. Each of the display windows can be resized, repositioned, swapped, or locked to the present window layout. These functions are easily performed with a simple mouse click. - HDMI / DVI support (DVI via DVI-to-HDMI adapter)
- Supports resolutions up to 1920 x 1200
- Auto detection of input- and output-monitor resolutions
- Control up to four HDMI sources on a single display
- Adjustable quad-video windows or full-screen display
- Picture-in-Picture support
- Four analog audio inputs / 2 built-in speakers
- Local headphone and microphone jacks
- Customizable display with 3D borders, labels, volume bar, background picture and more
- Full keyboard and mouse control of the HDMI source computers
- Supports USB- and PS/2-based computers
- USB hub support for connecting USB printers, cameras, flash drives, graphic tablets and other USB compatible devices
- Intuitive keyboard controls to toggle a window on or off, increase or decrease audio volume, toggle full-screen mode on or off, switch audio source
- Access and control the connected computers from a remote laptop using our custom access software
In the Box Rose Electronics QuadraVista HDMI 1 x 4 Video KVM Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics QuadraVista HDMI 1 x 4 Video KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics QV-4KVMHDMI Specs | Resolution | Up to 1920 x 1200 @ 50/60 Hz
1600 x 1200 @ 75 Hz | | Power Input | 100-240 VAC, 50/60 Hz | | Output | 12 VDC, 5 A, 60 W | | Connectors | Front: 1- USB Type A - Keyboard
1- USB Type A - Mouse
2- USB 2.0 Type A
1- Microphone
1- Headphone
1- USB Type B (Remote Keyboard/mouse control)
Rear: 4- DB15 (For computer's USB / PS-2 / Audio)
4- HDMI (For computer's video in)
1- HDMI (For DVI monitor)
1- RJ45 (Ethernet)
1- Power jack | | Indicators | PC1/2/3/4 - Computer active/standby Mode
Mode - Host or Remote
Pwr - Power on / off | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 0 to 80% non-condensing | | Approvals | FCC / CD / C-Tick / Class B | | Dimensions (W x D x H) | 6.9 x 10.3 x 1.7" (174 x 260.6 x 44.45 mm) | | Weight | 2.8 lb (1.26 kg) |
