User Manual for Rose Electronics RackView KVM Rack Drawer with 19" LCD Monitor Click to enlarge the picture
Contents of the user manual for the Rose Electronics RackView KVM Rack Drawer
- Product category: LCD KVM Consoles Rose Electronics
- Brand: Rose Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rose Electronics LCD KVM Consoles
|
User manual for the Rose Electronics RackView KVM Rack Drawer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rose Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rose Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rose Electronics product will considerably shorten its lifespan!
|

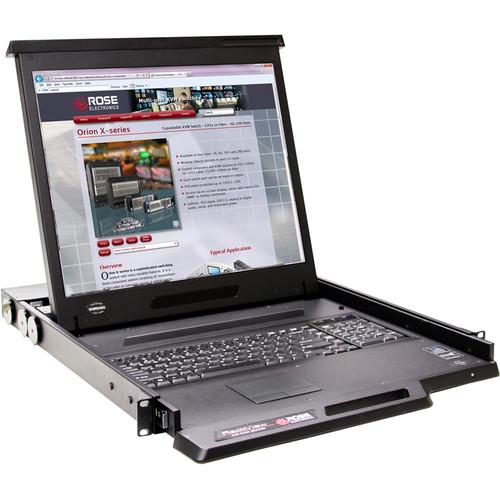

Product description The RackView from Rose Electronics is a rackmountable KVM station neatly fitted in a compact pull-out drawer. This easy-glide KVM station contains a 19" high-resolution TFT/LCD monitor, a tactile keyboard, and a touchpad. Windows, UNIX, Sun, and Mac computers can be easily accessed, monitored, and controlled locally using RackView. Adding an optional KVM switch to RackView allows access to multiple servers and simplifies rack management.The high-resolution, static-free, 19" TFT/LCD color monitor provides a crisp, clear image with resolutions up to 1280 x 1024 @ 60/75Hz. The monitor's front panel has touch buttons to set the brightness, contrast, and other display parameters. RackView has a full-size 104-key keyboard with a separate numeric keypad and an integrated 2-button touchpad mouse. External keyboard/VGA input/mouse connection is possible via the combo HD15 KVM interface.RackView can be placed at any height within a standard 19" rack using the included rails that can be adjusted from approximately 21 to 29.5". The front panel conceals the unit when it is not in use. The unit comes with a VGA/PS2 combo cable. - Compatibility
- Multi-Platform: Mix PCs, SUN, IBM, HP, and Dell systems
Supports Windows 7, Vista, XP, Linux, MAC OS X - 19" TFT LCD high-resolution monitor
- Video resolution up to 1280 x 1024, VGA or DVI
- Integrated 104-key keyboard with separate numeric keypad
- Integrated 2-button touchpad
- VGA/PS2 connection cable included for optional keyboard/video input/mouse
- Easy-glide KVM drawer can be mounted at any height in a standard 19" rack
- Active EDID monitor function
- Monitor OSD allows for easy adjustment of color, brightness, contrast, position, and shape of the display
- Front-panel touch buttons on monitor for OSD control
- You can fold and tilt the LCD monitor for optimum viewing position
- Front panel conceals unit when it is folded down/not in use
- Takes up only 1U rack space
In the Box Rose Electronics RackView KVM Rack Drawer with 19" LCD Monitor Mounting Bracket Set 5ft HD15 to HD15 + 2 x PS2 Combo Cable Power Cord Set of Screws and Washers for Assembly Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics RackView KVM Rack Drawer with 19" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics RV1-CAKVT19/DVI/K2 Specs | Display Size & Type | 19" (48.3 cm), TFT LCD | | Resolution | Up to 1280 x 1024, 60/75 Hz | | Response Time | 5 ms | | Contrast Ratio | 1000:1 (Typical) | | Viewing Angle (H x V) | 160 x 160° | | Active Area | 14.8 x 11.9" (376 x 301 mm) | | Brightness | 250 cd/m2 | | Backlight | CCFL | | Dot Pitch | 0.294 mm | | Colors Supported | 16.7 million | | Controls | Capacitive panel, push-button | | Adjustments | Via on-screen display | | Connectors | DVI-D(F)
HD15F (DB-15) for VGA (0.7 Vpp) / keyboard / mouse (Combo interface)
5.0 ft (1.5 m) VGA/PS2 combo cable included
Front-panel USB for device access (USB hub KVM only) | | Signal Input | VGA: Analog
DVI: DVI-D, TMDS single-link | | Sync Type | VGA: Separate H/V, Composite, SOG | | Plug-and-Play | VGA/DVI, VESA EDID 1.3 | | Keyboard | Full-size tactile 104-key keyboard with separate numeric keypad | | Mouse | Integrated touchpad | | Supported OS | Windows 7, Vista, XP, Linux, MAX OS X | | Power Source | 100 to 240 VAC 50/60 Hz auto-sensing | | Input Voltage | 12 VDC, 5 A | | Power Consumption | Screen On: 25 W or less
Power Saving Mode: 4 W or less
Maximum: 48 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 23 to 140°F (-5 to 60°C) | | Relative Humidity | 20 to 90%, non-condensing | | Shock | 10g acceleration (11 ms duration) | | Vibration (5 to 500 Hz) | 1G RMS random vibration | | MTBF | 50,000 hours | | Approvals | cUL, FCC, CE | | Rack Height | 1U | | Depth Adjustment | 21 to 29.5" (533 to 749 mm) rail depth | | Dimensions (W x D x H) | 17.4 x 22.4 x 1.73" (441 x 570 x 44 mm) when folded down | | Weight | 29 lb (13 kg) |
