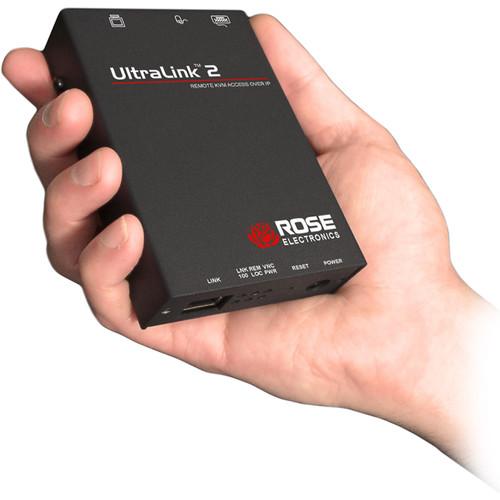

User Manual for Rose Electronics UltraLink 2 UL2-SA Remote KVM Access Single Unit Click to enlarge the picture
Contents of the user manual for the Rose Electronics UltraLink 2 UL2-SA Remote
- Product category: KVM Switches Rose Electronics
- Brand: Rose Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rose Electronics KVM Switches
|
User manual for the Rose Electronics UltraLink 2 UL2-SA Remote contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rose Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rose Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rose Electronics product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The UltraLink 2 UL2-SA Remote KVM Access Single Unit from Rose Electronics sets a new standard for an easy and secure way to remotely manage server room environments, remote standalone applications such as digital signage and other remote applications. You can access your computers and servers locally, across your network, or over IP using a web browser. Connect the unit to a KVM switch via an optional power adapter and you now have access to as many as 1,000 computers or servers from anywhere in the world.
The UltraLink 2 is easy to install and configure. Assign an IP address and network information, connect the unit to your equipment and network and it's ready to access using any supported web browser or access the unit directly using the secure RealVNC viewer. The Virtual Media feature allows you to remotely access USB-equipped systems and perform patches and upgrades. - Compatibility
- With Rose Electronics KVM switches and most other KVM devices
- IP address, sub-net, gateway, and other network information are easily configured by modifying a simple text file
- Connect to a remote computer, server, or KVM switch directly or remotely over IP using any supported Internet browser
- Virtual Media feature allows authorized remote users to transfer files and folders to a computer
- Two PS/2-to-USB adapters are provided for using USB keyboards and mice
- Resolution up to 1600 x 1200
- Solid-state embedded unit for maximum reliability
- Easy to install and configure using the OSD menu
- Password security prevents unauthorized configuration and access
- User ID and password required for remote access
- Remote application (Real VNC or Java applet) can be installed directly from the unit
- Up to four simultaneous remote users can access the UltraLink 2 at one time
- Front-panel indicators show link, local, or remote connection, VNC, network speed, and power
- Flash-upgradeable so your unit is always up to date with new features and enhancements
In the Box Rose Electronics UltraLink 2 UL2-SA Remote KVM Access Single Unit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics UltraLink 2 UL2-SA Remote KVM Access Single Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics UL2-SA Specs | Resolution | VGA: 1600 x 1200 | | Connectors | Power: Barrel jack
Local KVM: Video HD15F
Keyboard: Mini-din6F
Mouse: Mini-din6F
Host computer: Video HD15F
Keyboard: Mini-din6F
Mouse: Mini-din6F
Network port: RJ45F | | Chassis | Steel (Black) | | Switches | Power select switch | | Indicators | Reset: Push-button
Green LED: Power, Link, Local, Remote, VNC, Speed | | Ethernet | 10/100 Mbs Ethernet speed | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -13 to 140°F (-25 to 60°C) | | Relative Humidity | 5 to 80% non-condensing | | Distance | 25' (8 m) | | Power | Supplied by computer 5 W | | Approvals | FCC, CE | | Dimensions (W x D x H) | 3 x 5 x 1.1" (8 x 13 x 2.7 cm) | | Weight | 0.76 lb (0.34 kg) |
