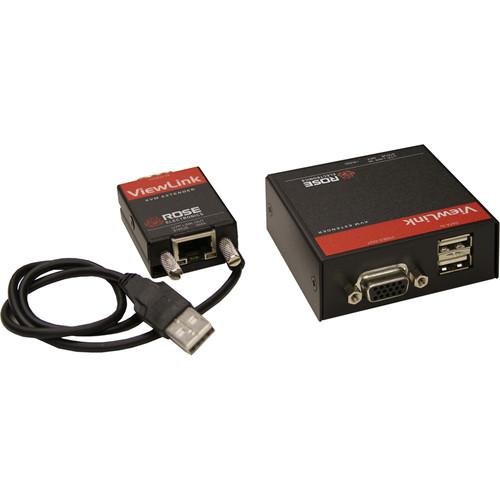

Product description The ViewLink CatX Advanced Micro-Mini KVM Extender from Rose Electronics is a versatile device used for standard KVM extension, and also for system building of customized keyboard/mouse and video applications. The ability to mix-and-match USB and PS2 allows the user to use a PS2 port on the computer, with a USB keyboard and mouse at the remote end.
The ViewLink handles the USB/PS2 conversion in both directions. In video-only applications, the transmitter unit can be powered via a standard USB hub. A special version of the transmitter unit has both USB and PS2 connectors attached for use in environments where there is changing and upgrading of CPU hosts. - Supports SVGA, VGA, XGA, RGB video modes, USB-HID or PS2 keyboard and mouse, mixed USB-HID and PS2, local or remote, video-only, and keyboard/mouse-only models
- Simple plug-and-play operation
- No switches or jumper settings required
- No additional CPU cables required
- Video VGA resolutions up to 1920 x 1440, 60Hz
- Transmitter unit is interface powered or alternatively A/C powered for special applications
- CatX extension cable can be Cat5e, 6, or 7 and UTP/STP, solid-core
- Cable length compensation adjustments are automatically performed at power-on
- Video equalization and gain control can be fine-tuned with simple keyboard commands
- Optional automatic skew adjustments produce a crystal clear display at the maximum distance
- Operating system-independent, supporting 35 different country-specific keyboard types
In the Box Rose Electronics ViewLink CatX Advanced Micro-Mini KVM Extender Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics ViewLink CatX Advanced Micro-Mini KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics VLK-TMV0RAV0/B1.3 Specs | Video Resolution | Up to 1920 x 1440 @ 60 Hz - up to 300' (91 m) reduced resolutions at longer distances | | Levels | 0.7 VPP | | Sync Type | Separate composite TTL level | | Device Support | Keyboard: PC/AT, PS2, USB-HID
Mouse: PS2 2-Button, Microsoft and Logitech compatible, USB-HID
Video: SXGA, VGA, XGA, RGB | | Connectors | RJ45
Video TX: (HD15M), RX: (HD15F)
KB/Mouse TX: USB or PS2 for local power | | Interconnect Bandwidth | RJ45: CatX, UTP/STP, EIA/TIA 568B, Cat5/5e/6/7 solid cable | | Power | Local: From PC via PS2 or USB (alternative) via external +5 V
Remote: 100 to 240 V, 50/60 Hz, 5 V / 1 A | | Temperature | 32 to 113°F (0 to 45°C) | | Humidity | 0 to 80% | | Approvals | CE | | Dimensions (W x D x H) | Transmitter: 1.3 x 1.7 x 0.6" (3.3 x 4.3 x 1.5 cm)
