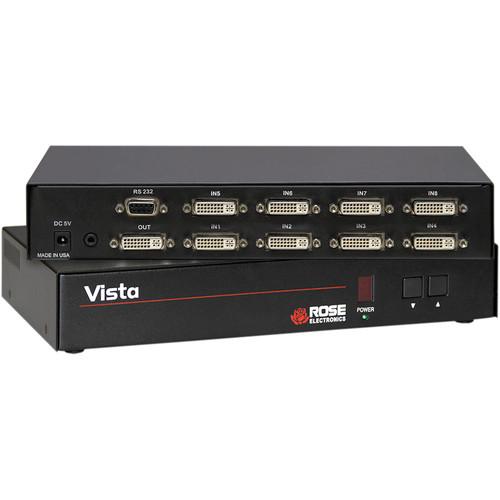

User Manual for Rose Electronics Vista AV 8 x 1 DVI Video Switch Click to enlarge the picture
Contents of the user manual for the Rose Electronics Vista AV 8 x
- Product category: Routers & Switchers Rose Electronics
- Brand: Rose Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rose Electronics Routers & Switchers
|
User manual for the Rose Electronics Vista AV 8 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rose Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rose Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rose Electronics product will considerably shorten its lifespan!
|
Product description The Vista AV 8 x 1 DVI Video Switch from Rose Electronics is used to switch your DVI video from eight DVI video sources (usually a multi-platform computer) to one centralized monitor. The video from each video source can be switched to the local monitor via the push of a button on the front panel, or by using remote serial commands from a connected computer or controller. The multi-platform design gives you the option of connecting Windows, Mac, Linux, and Sun Systems to the Vista AV and seamlessly switching between systems. - Eight DVI video input ports and one DVI output
- Front panel push-buttons or remote serial port switching
- Multi-platform support for Windows, Mac, Linux, and Sun Systems
- DVI-D single-link resolution up to 1920 x 1200 @ 60 Hz
- Front panel display indicates the active selection
- Plug-and-play, no unit configuration needed
- DVI output is capable of driving DVI cable lengths up to 25 feet
In the Box Rose Electronics Vista AV 8 x 1 DVI Video Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics Vista AV 8 x 1 DVI Video Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics AVS-1X08DVI Specs | Switcher Interface | 8 x DVI inputs
1 x DVI output | | Single Link Range | DVI-D | | Resolution | 1920 x 1200 @ 60 Hz | | Bandwidth | 1.65 GHz | | Connectors | DVI In/Out: DVI-I 29-pin, female
Power: Male barrel jack | | Controls | Front panel computer select buttons | | Power | Adapter +5 VDC / 3 A | | Approvals | UL, CE, RoHS Compliant | | Dimensions (W x D x H) | 10.5 x 6.0 x 1.8" (26.6 x 15.2 x 4.5 cm) | | Weight | 7 lb (3.2 kg) |
