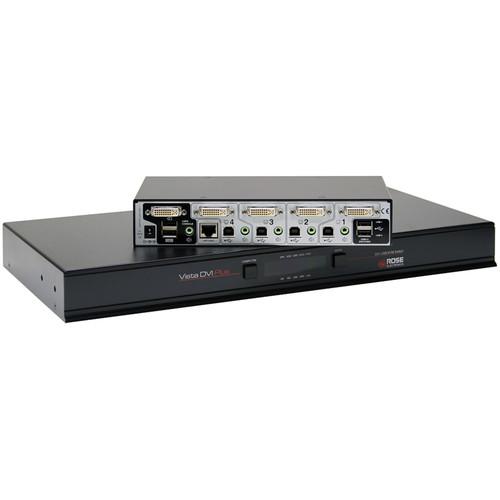

User Manual for Rose Electronics Vista DVI Plus KVM Switch Click to enlarge the picture
Contents of the user manual for the Rose Electronics Vista DVI Plus KVM
- Product category: KVM Switches Rose Electronics
- Brand: Rose Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rose Electronics KVM Switches
|
User manual for the Rose Electronics Vista DVI Plus KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rose Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rose Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rose Electronics product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More udcswqfezzuw The Vista DVI Plus KVM Switch from Rose Electronics supports digital and analog video, audio, specialty keyboards, and mice. With USB 2.0 peripherals, the KVM switch also supports USB keyboards and mice. Switching can be performed where the KVM, USB peripherals, and audio are all switched together to a selected CPU port. Additionally, you can switch the KVM to CPU port 1, the USB peripherals to CPU port 2, and the audio to CPU port 6. The Vista DVI Plus can be connected to an additional unit and synchronized to switch video from a dual-head computer. You simply need to connect video 1 to one unit and video 2 to a second unit. When a switching command is sent to the master unit, it sends the same switching command to the secondary unit. Both units are switched to the same CPU port and video 1 and video 2 are displayed on the attached monitors. With the front-panel display or hotkey sequences, the Vista DVI Plus makes selective switching easy. For flexibility, the switch supports sending serial-switching commands from a remote computer via a serial cable. - 1x4 dual-link DVI-I switch
- Full dual-link DVI video support
- Supports resolution of up to 2560 x 1600
- Allows you to select a computer using the front-panel switches, hotkeys, or the mouse buttons
- Switch dual-link digital video up to 300MP/sec
- Front-panel indicator shows the currently active channel, which peripherals are switched to the active channel, keyboard and mouse activity, OSD status, upgrade mode, and power
- Supports digital and analog video (converter required for analog)
- Supports a wide range of USB 2.0 peripherals (HID and transparent devices)
- RS232 serial port for upgrades to the unit's firmware and for synchronizing two or more Vista DVI plus units so multiple computers/video screens can be switched and accessed
In the Box Rose Electronics Vista DVI Plus KVM Switch (1x4) Power Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rose Electronics Vista DVI Plus KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRose Electronics KVM-4TDDL/A1 Specs | | | Dual Link DVI | DVI-I | | Resolution | 2K (2048 x 1080)
WQXGA (2560 x 1600) | | | | DVI In | DVI-I female | | DVI Out | DVI-I female | | Keyboard | USB type A (not included) | | Mouse | USB type A (not included) | | Audio | 3.5 mm female audio jack | | USB 2.0 | 2 x Type A for peripherals
1 x Type B to computer | | Power | Male barrel jack | | | | Controls | Front-panel pushbuttons (computer/mode) | | Adapter | 100 to 240 VAC; 50/60 Hz
5 VDC; 2 A | | Approvals | CE, FCC | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 9.2 x 4.5 x 1.8" (23.3 x 1.2 x 4.4 cm) | | Weight | 1.8 lb (0.7 kg) |
