User Manual for Ross Video Carbonite Black Solo 1 RU HD SD Switcher Engine

Click to enlarge the picture
Ross Video Carbonite Black Solo 1 RU HD SD Switcher Engine Contents of the user manual for the Ross Video Carbonite Black Solo 1
  • Product category: Production Switchers Ross Video
  • Brand: Ross Video
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Ross Video Production Switchers

Ross Video Carbonite Black Solo 1 RU HD SD Switcher Engine Ross Video Carbonite Black Solo 1 RU HD SD Switcher Engine Ross Video Carbonite Black Solo 1 RU HD SD Switcher Engine Ross Video Carbonite Black Solo 1 RU HD SD Switcher Engine Ross Video Carbonite Black Solo 1 RU HD SD Switcher Engine Ross Video Carbonite Black Solo 1 RU HD SD Switcher Engine
User manual for the Ross Video Carbonite Black Solo 1 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Ross Video product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Ross Video user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Ross Video product will considerably shorten its lifespan!



Product description

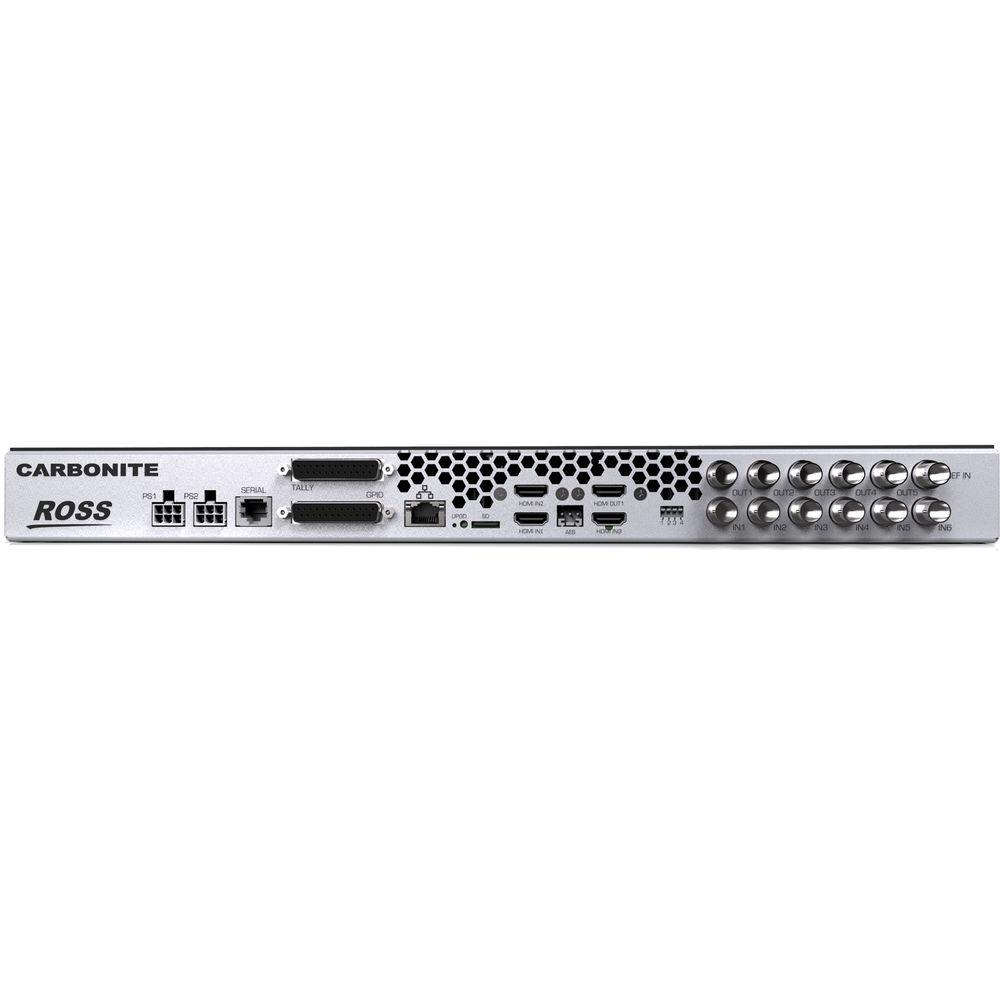

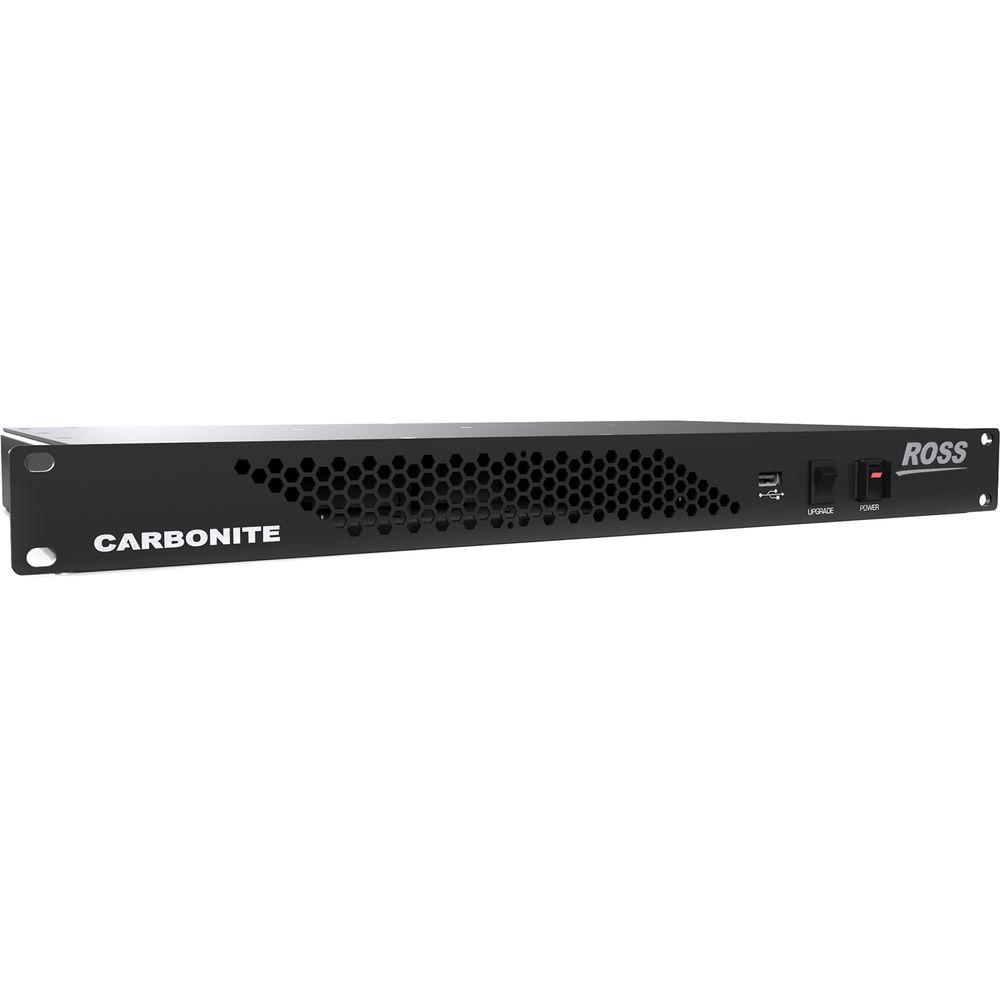

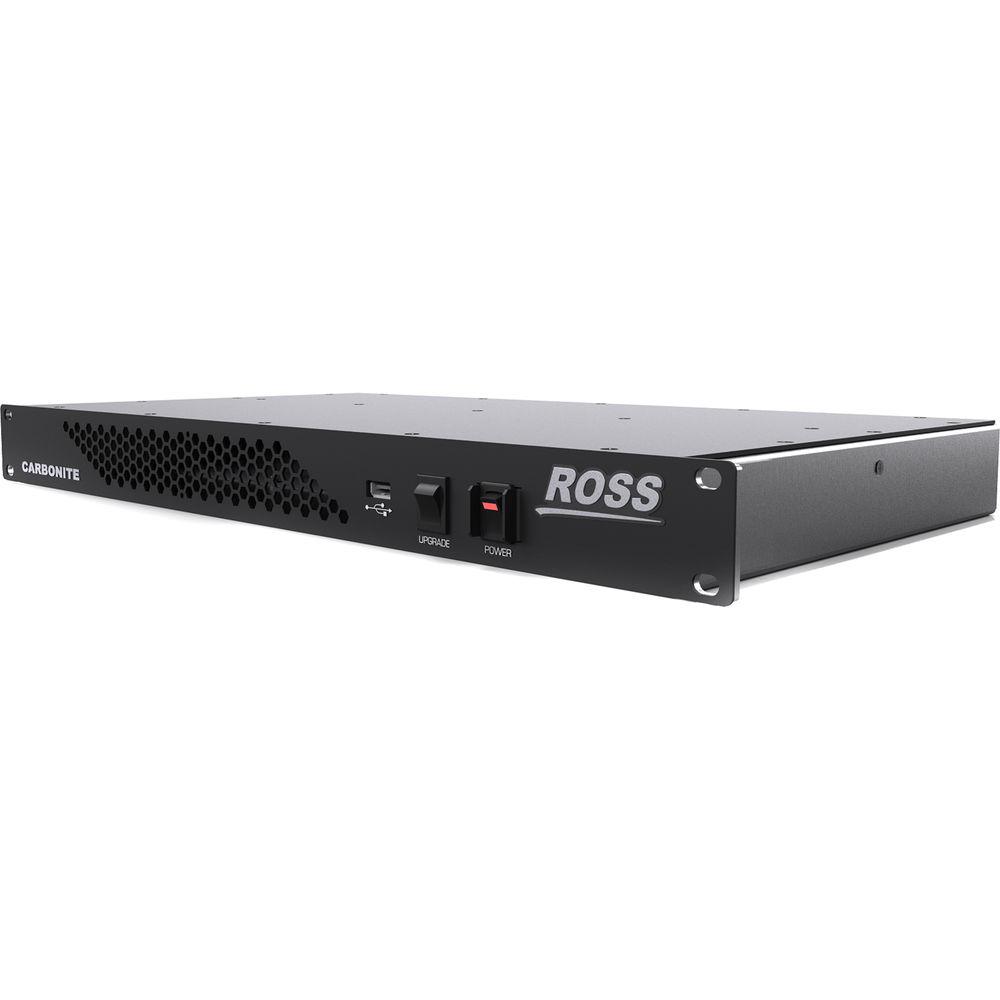

The Carbonite Black Solo 1 RU HD/SD Switcher Engine from Ross Video is an HD/SD video production switcher providing versatile switching in a highly compact form. Designed for live production, the flexible Solo 1 RU Engine is controlled using the CB-9 Control Panel, or via the DashBoard software interface for Mac, Windows, or Linux. Supporting multi-format video resolutions up to 1080p60, the Solo incorporates nine inputs including six HDMI and three HDMI, and six outputs including five SDI and one HDMI.The Solo's multiviewer output supports up to 10 source displays, and features multiple layouts, tally, labeling, and a clock function. Features include robotic camera control for VISCA, Canon BU series, and Ross Cambot cameras. Features typically found in larger switchers that are offered by the Solo include two floating effects channels for PiP or 2D transitions, assignable effects modules, four-channel animation storage with audio, one floating UltraChrome chroma keyer, and powerful 10-bit processing for advanced keying and effects.
    Features
    • Two floating MiniME effects modules can be used anywhere within your signal path
    • Fully configurable multiviewer output with tally, border control, and UMD labeling
    • Add graphics with the included XPression LiveCG software license
    • Powerful 3G processing is compatible with Full HD standards
    • The Ross DashBoard LiveAssist control interface and MediaManager browser provide intuitive control via your computer
    • Store multiple keys and backgrounds for preview
    • SDI and HDMI input connections; assignable HDMI output
    • Four independent media channels are available across the switcher
    • 8GB on-board memory
    • Create animated transitions with audio, and control them from a dedicated selector
    • Six internal frame synchronizers enable mixing of HD and SD materials
    • UltraChrome chroma keyer for detailed keying
    • Four powerful keyers with luma, linear, chroma and DVE keying, plus a fifth keyer for animated media wipes, and DVE transitions
    • Two floating 2D DVE channels can be assigned to a single ME, or distributed across MEs
    • Directly control external devices like servers, robotic cameras, and select audio mixers
In the Box Ross Video Carbonite Black Solo 1 RU HD/SD Switcher Engine
  • 2-Pin Power Supply for CB-9 Control Panel (12V, 4A)
  • XPression LiveCG Software License
  • Limited 1-Year Warranty
  • User Manual PDF 2.7mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Ross Video Carbonite Black Solo 1 RU HD SD Switcher Engine in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ross Video Carbonite Black Specs

    Video Inputs 6 x SDI, BNC
    3 x HDMI
    Video Outputs 5 x SDI, BNC
    1 x HDMI
    Signal Format 3G:
    1080p: 60/59.94/50

    HD:
    1080p: 29.97
    1080PsF: 25/23.98
    1080i: 59.94/50
    720p: 59.94/50

    SD:
    576i: 50
    480i: 59.94
    Signal Processing 10-bit
    ME Number 1 x ME
    2 x MiniME
    SDI Input SMPTE 424M/292M/259M serial digital (non-looping)
    HDMI Input Standard: HDMI 1.4
    Maximum Cable Length Supported High-Speed Cable: 33' (10 m)
    Reference Input SD: Analog black
    HD: Tri-level sync
    Non-terminating, looping
    SDI Output 10-bit SMPTE 424M/292M/259M serial digital
    HDMI Output Standard: HDMI 1.4
    Maximum Cable Length Supported High-Speed Cable: 33' (10 m)
    Power Requirement AC 100–240 V, 50 / 60 Hz, 88 W
    Operating Temperature 32–104°F (0–40°C)

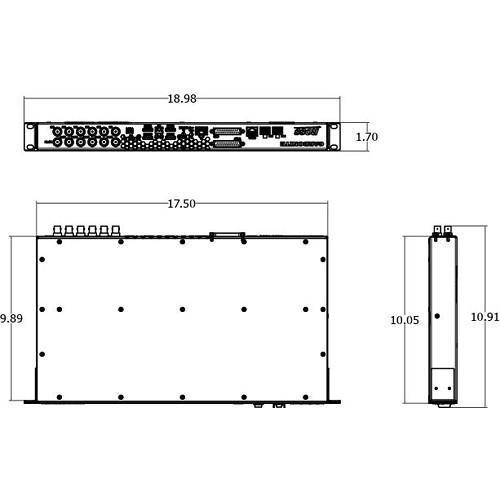

    Dimensions (WxDxH) 18.98 x 10.0 x 1.63" (48.2 x 25.4 x 4.14 cm)
    Weight Not specified by manufacturer
    Package Weight 15.25 lb
    Box Dimensions (LxWxH) 23.9 x 16.4 x 9.8"

    Rating

    70% users recommend this product to others. And what about you?
