User Manual for Ross Video Detour 12G-SDI Relay Bypass 1x4 Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Ross Video Detour 12G-SDI Relay Bypass
- Product category: Distribution Amplifiers (DA's) Ross Video
- Brand: Ross Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ross Video Distribution Amplifiers (DA's)
 |
User manual for the Ross Video Detour 12G-SDI Relay Bypass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ross Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ross Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ross Video product will considerably shorten its lifespan!
|

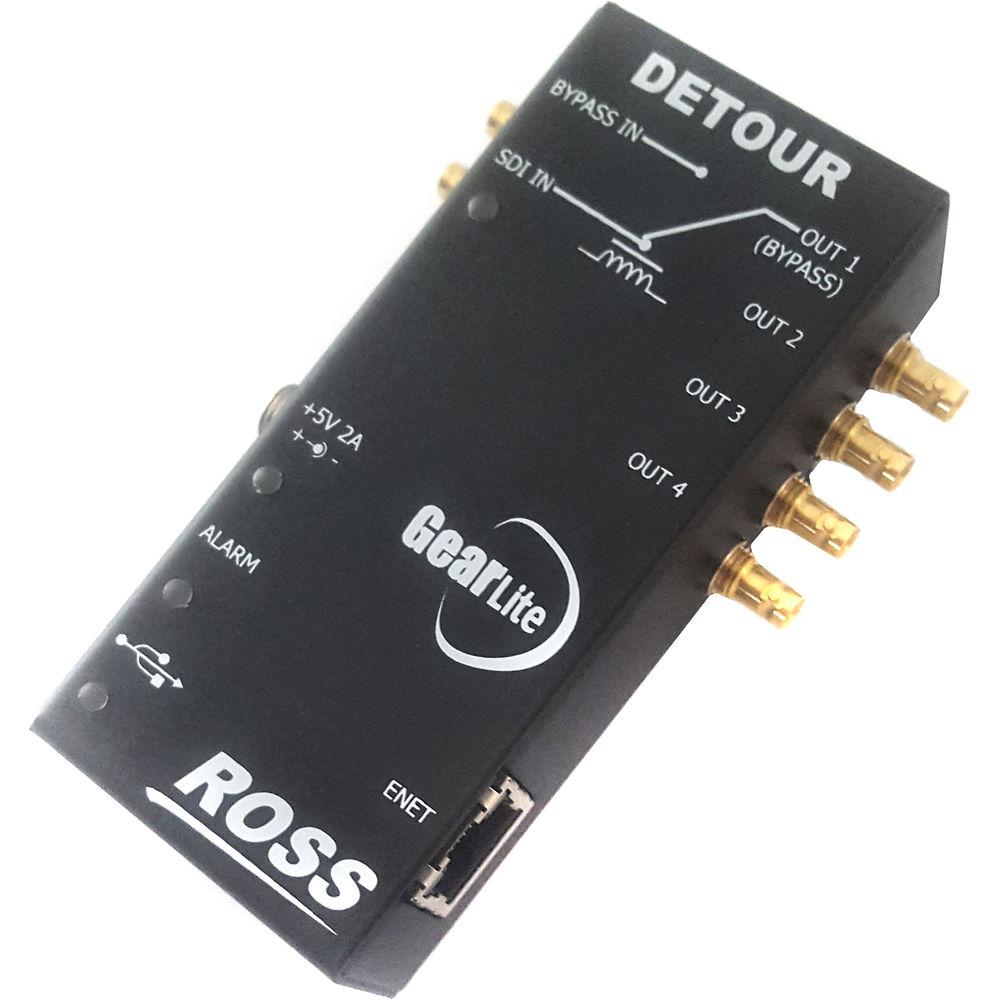

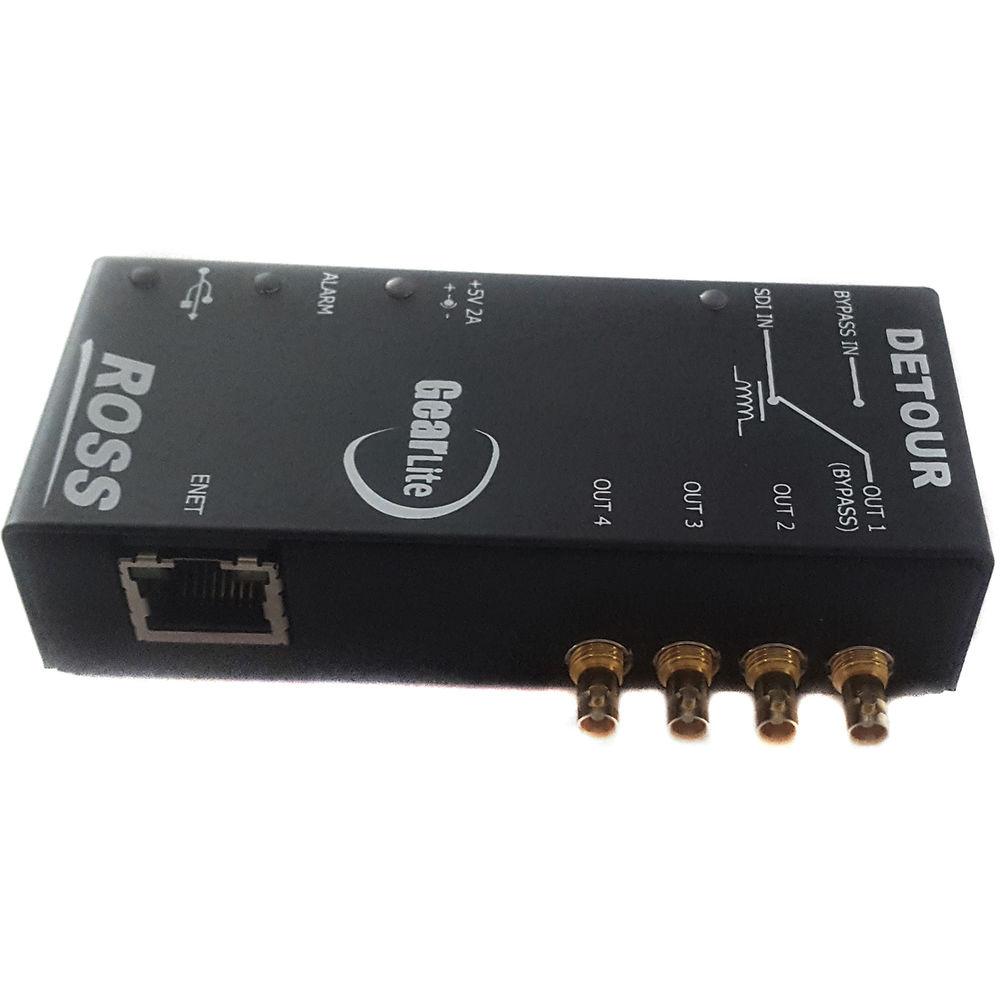

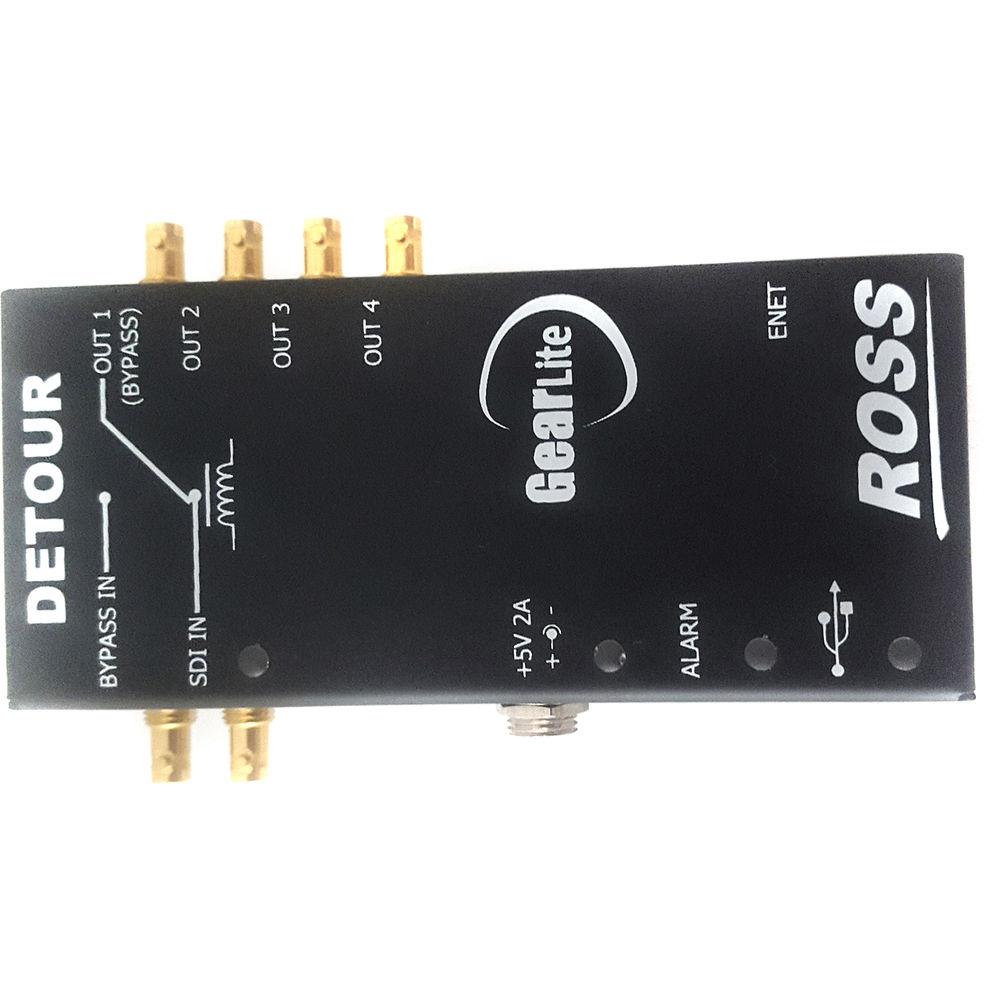

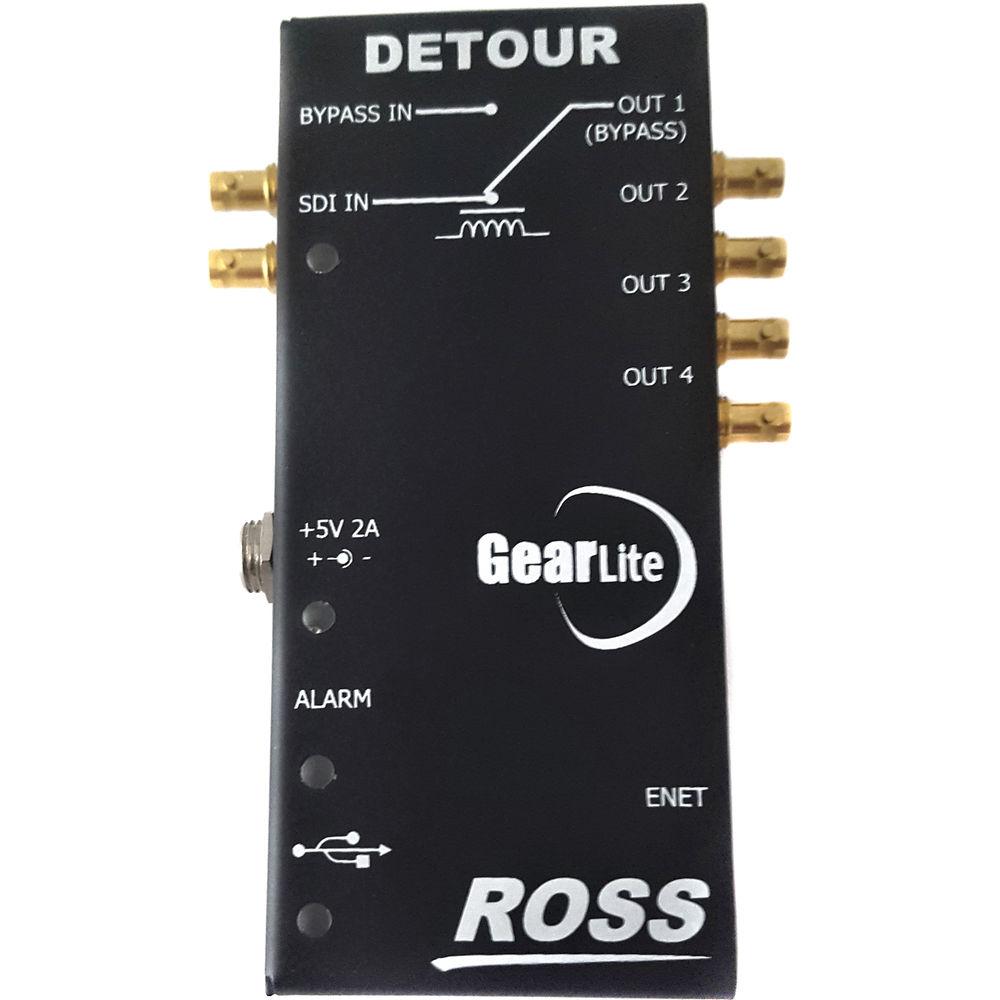

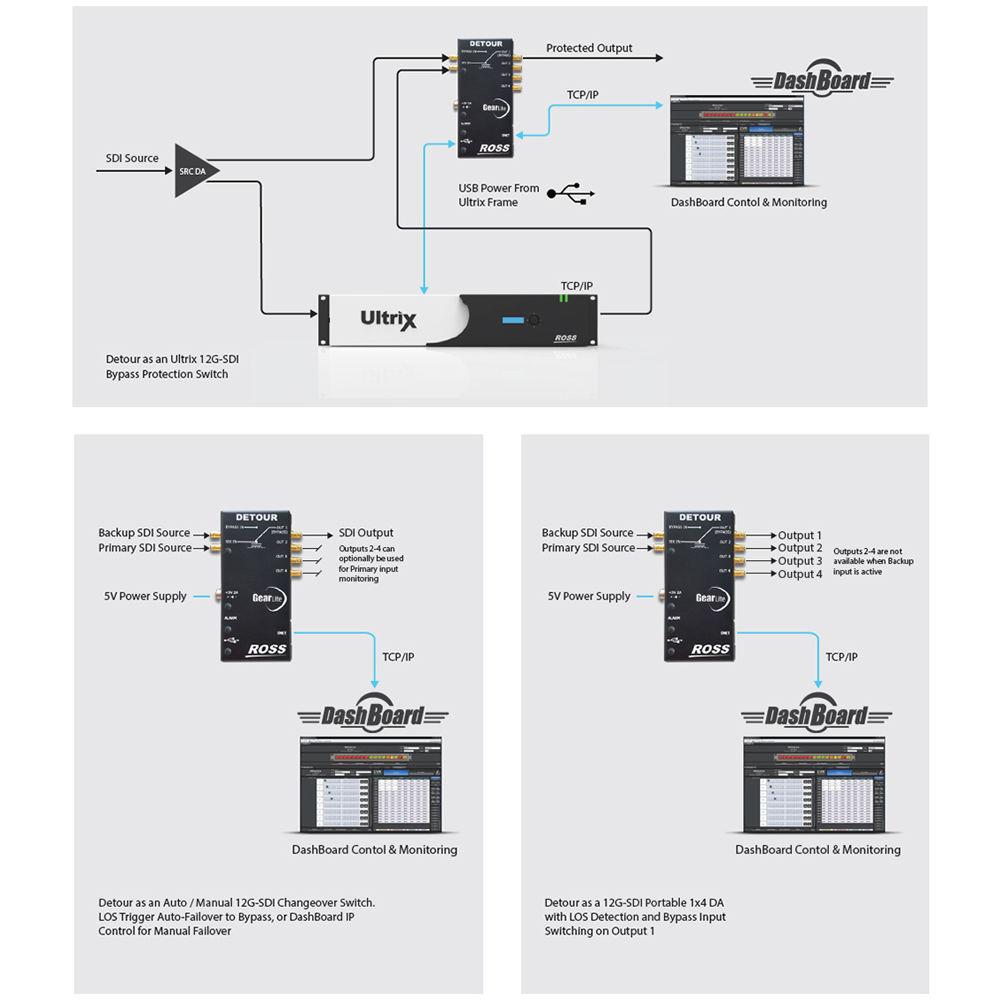

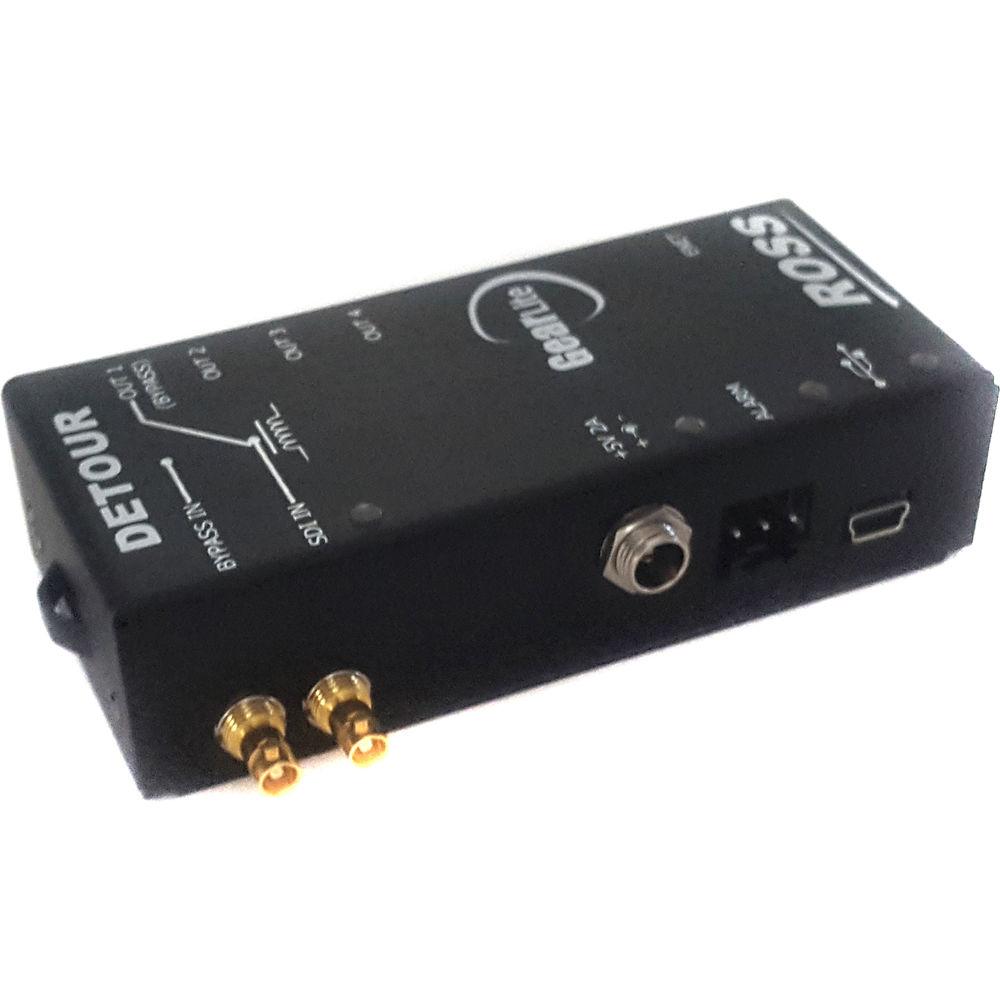

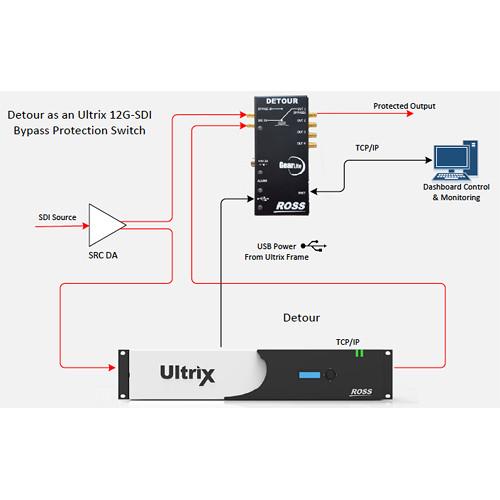

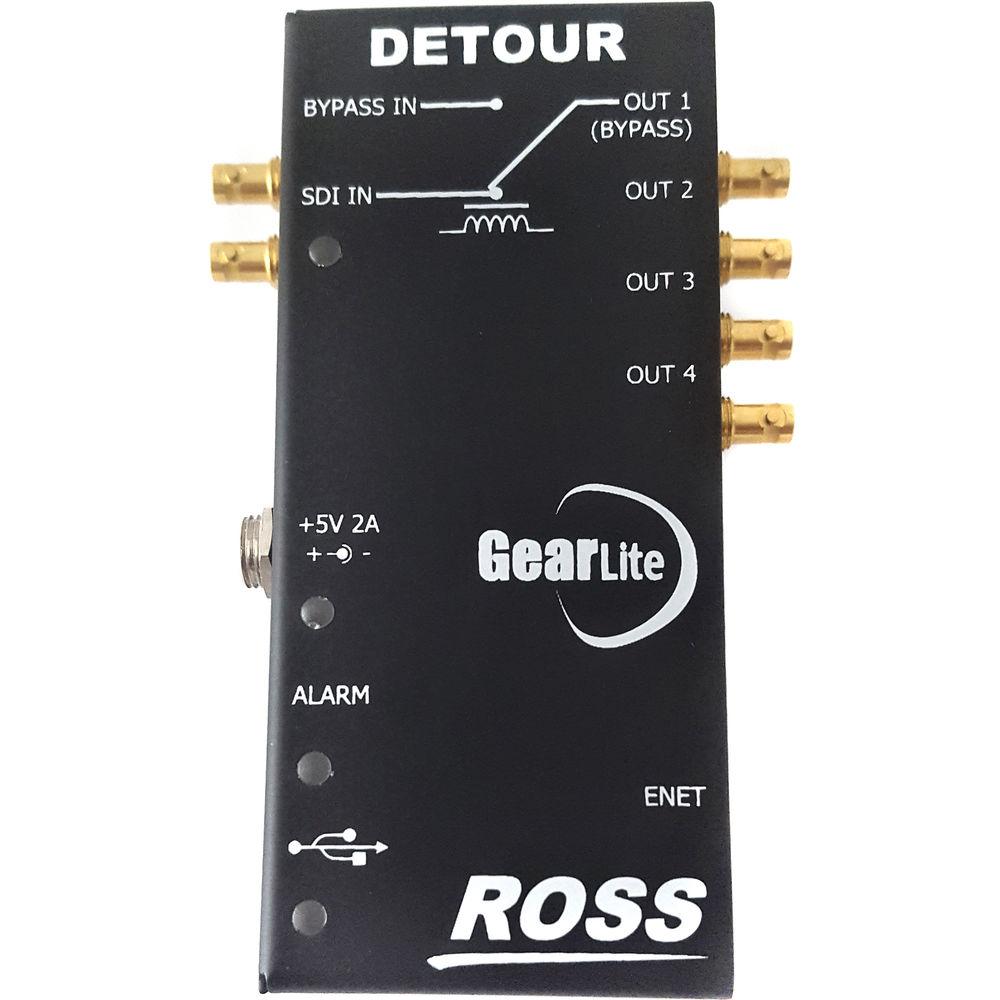

Product description The Ross Video Detour 12G-SDI Relay Bypass 1x4 Distribution Amplifier can distribute a single 4K, HD, or SD-SDI input to four SDI outputs. A secondary failover input allows the Detour to be used in situations where a video feed cannot be disrupted. Put a second distribution amplifier before the Detour and your switching system, and you'll always have a signal reaching the output should your switcher go down. Ethernet control allows for networked configuration. The Detour can be almost used anywhere, as it can be powered off a USB connection. - Up to two independent channels of SDI distribution on one card
- Equalization for SDI signals from 270 Mb/s to 12 Gb/s
- Non-inverting outputs; works with DVB-ASI distribution
- Auto or manual failover to secondary input

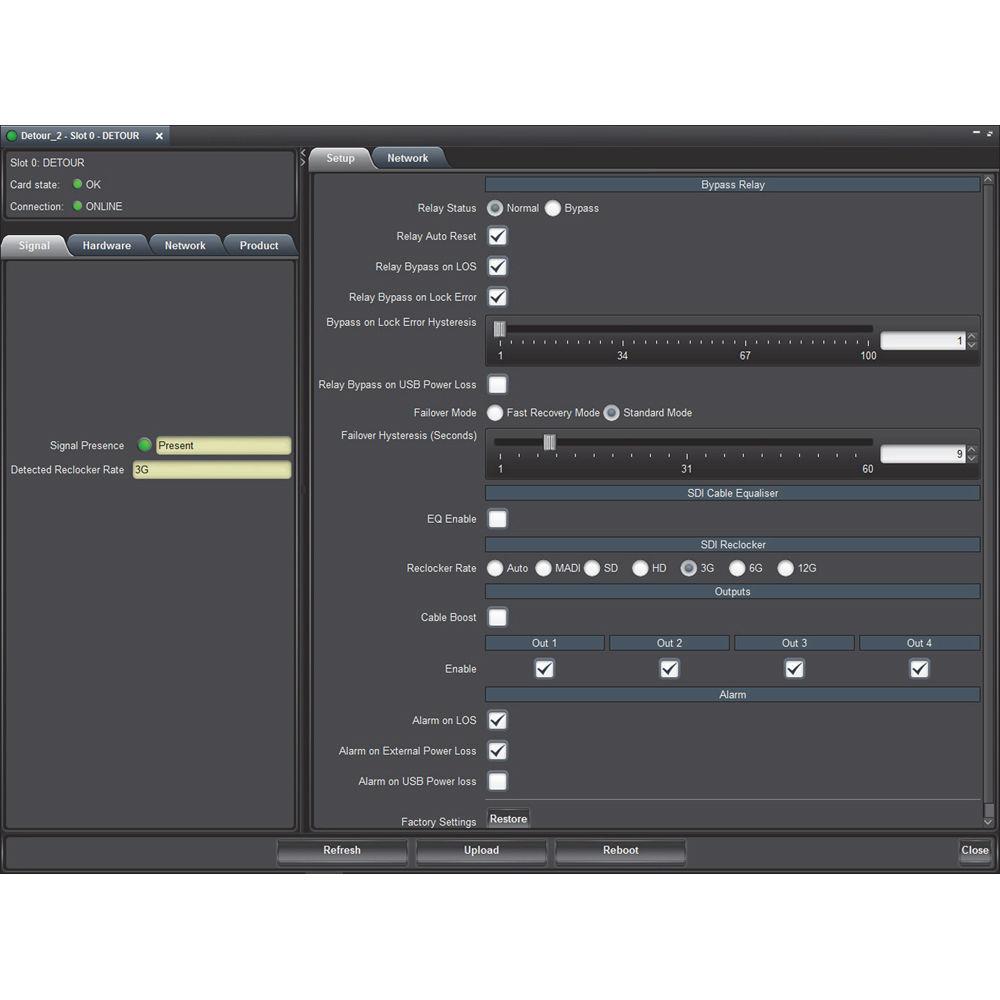

- Control over Ethernet via Dashboard
- Fault monitoring via USB or Ethernet
- Automatic detection of incoming data rate
- Configurable as reclocking or equalizing-only
- Power over USB or external 5V power supply with locking connector
- LED indicators for signal presence and data rate for each channel
In the Box Ross Video Detour 12G-SDI Relay Bypass 1x4 Distribution Amplifier Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ross Video Detour 12G-SDI Relay Bypass 1x4 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoss Video Detour Specs | Inputs | 12G/6G/3G/HD/SD-SDI: 2 x BNC | | Outputs | 12G/6G/3G/HD/SD-SDI: 4 x BNC | | Other I/O | Network: 1 x RJ45
Control: 1 x USB
Power: 1 x Locking barrel | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 15.6 x 9.5 x 3.1" |
