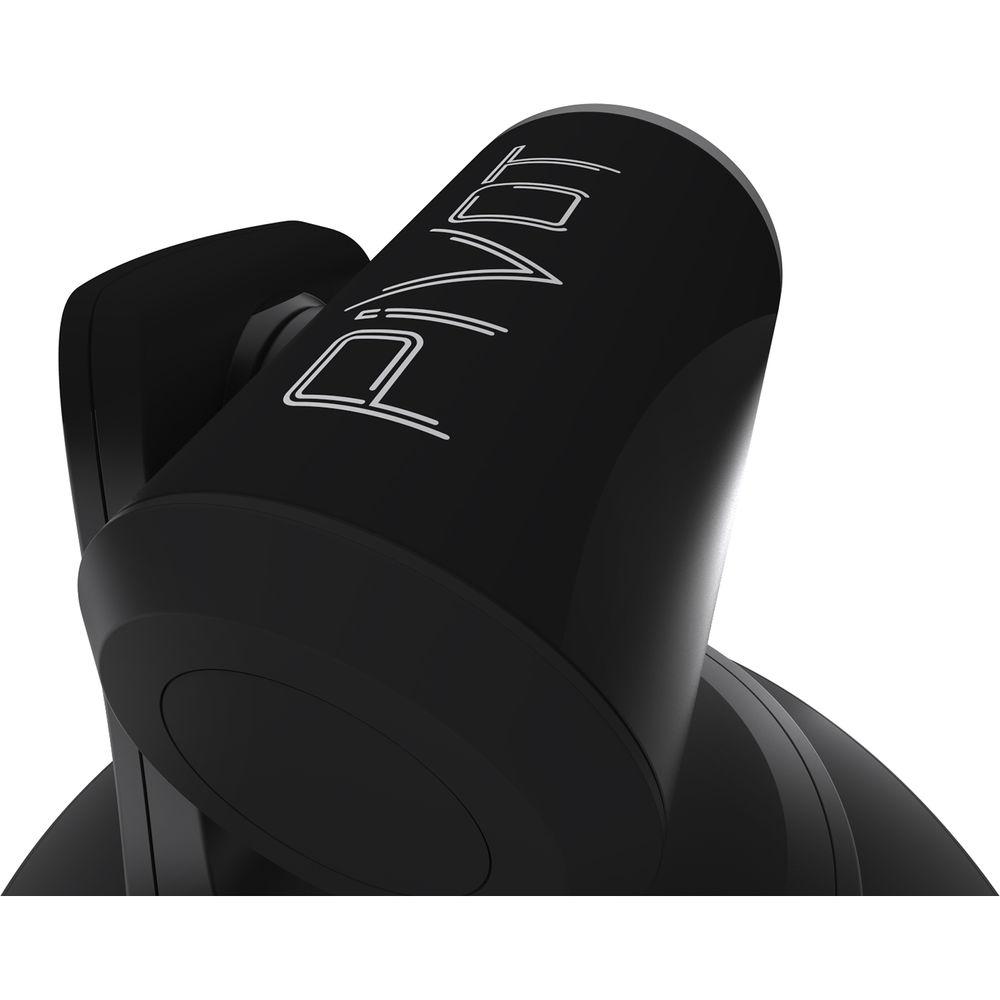

User Manual for Ross Video PIVOTCam Click to enlarge the picture
Contents of the user manual for the Ross Video PIVOTCam
- Product category: PTZ Cameras Ross Video
- Brand: Ross Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ross Video PTZ Cameras
 |
User manual for the Ross Video PIVOTCam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ross Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ross Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ross Video product will considerably shorten its lifespan!
|

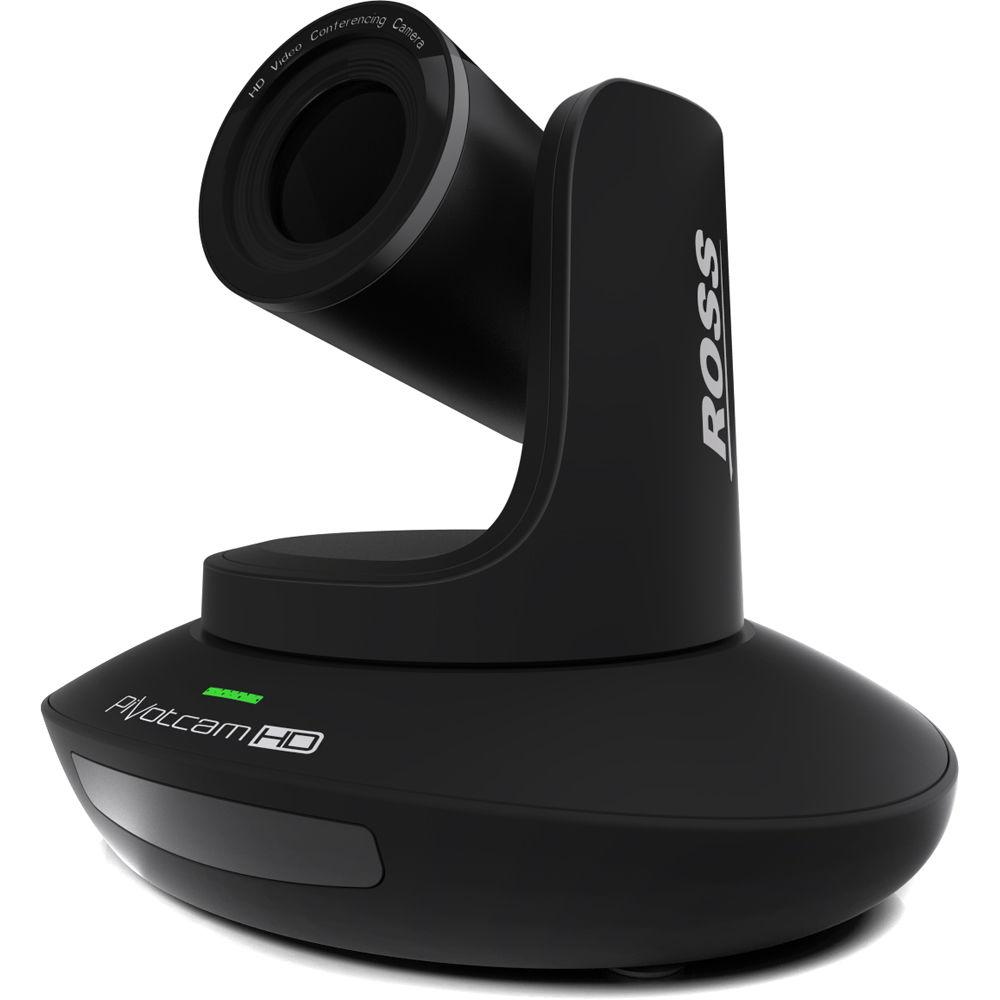

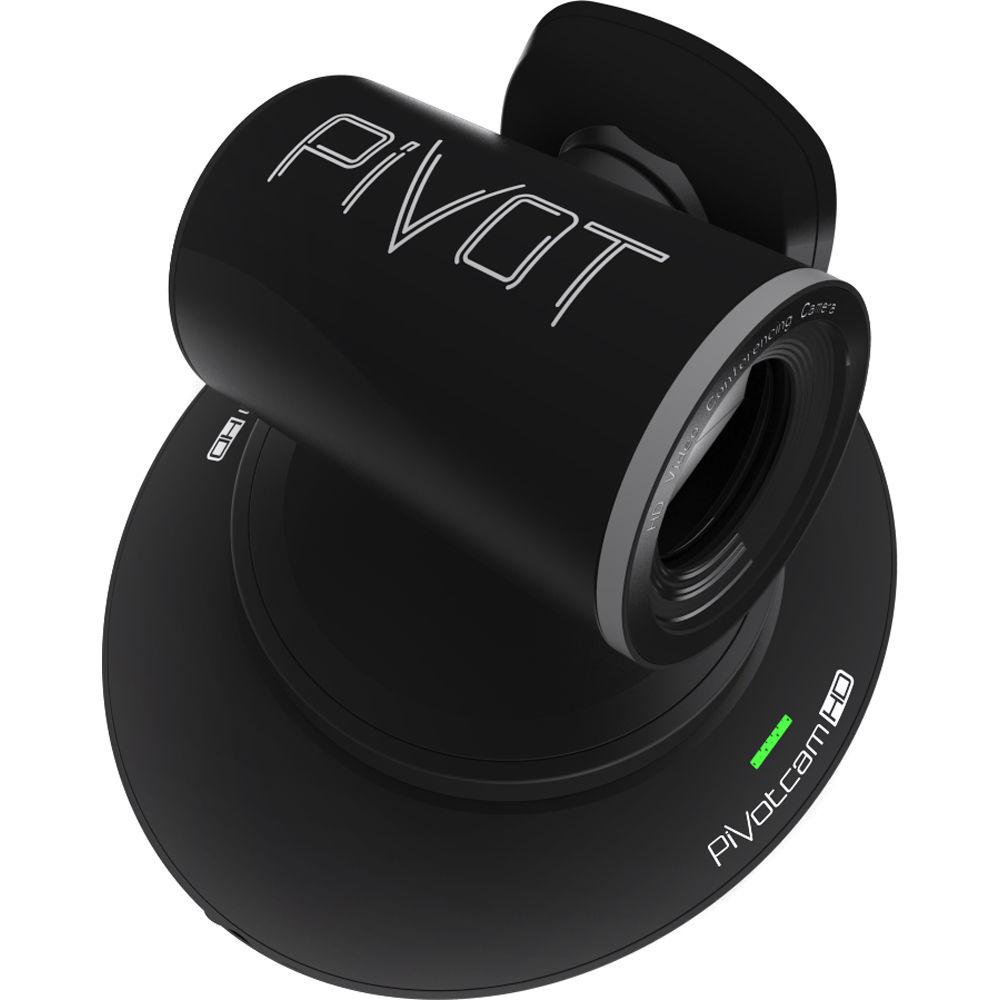

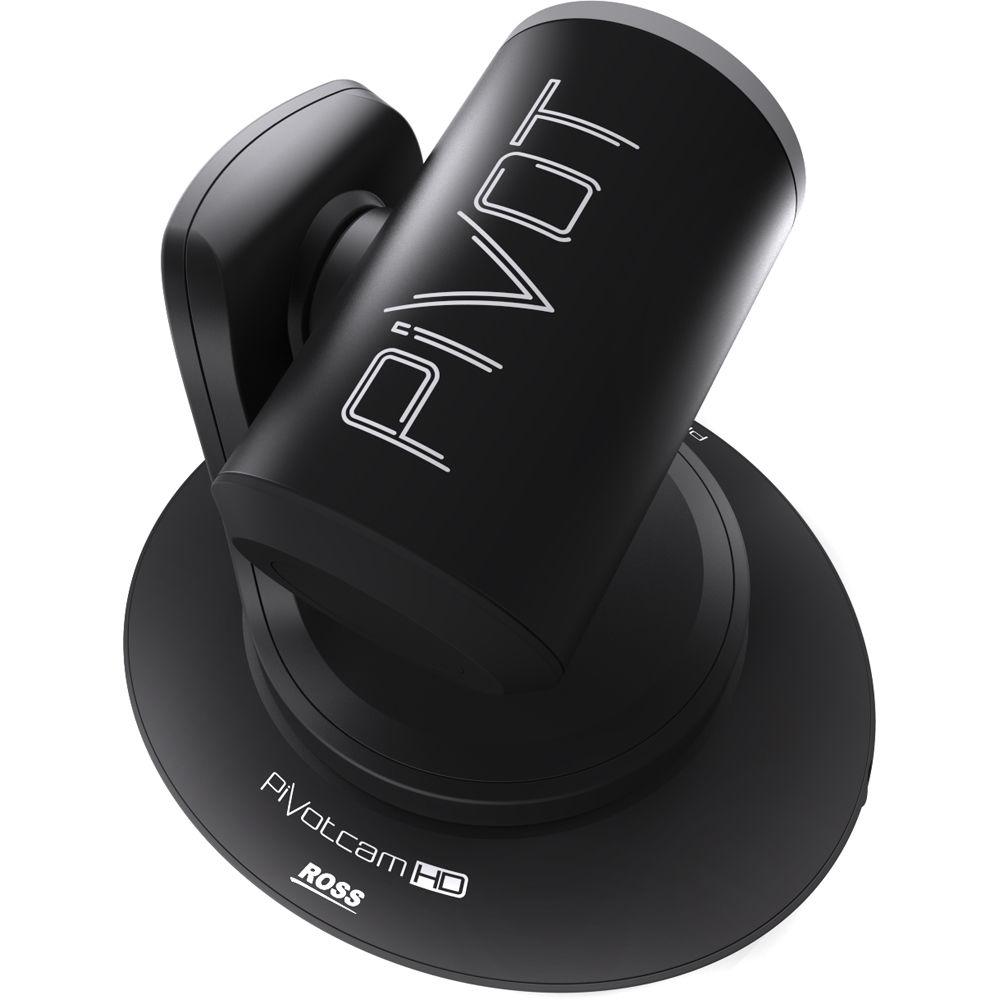

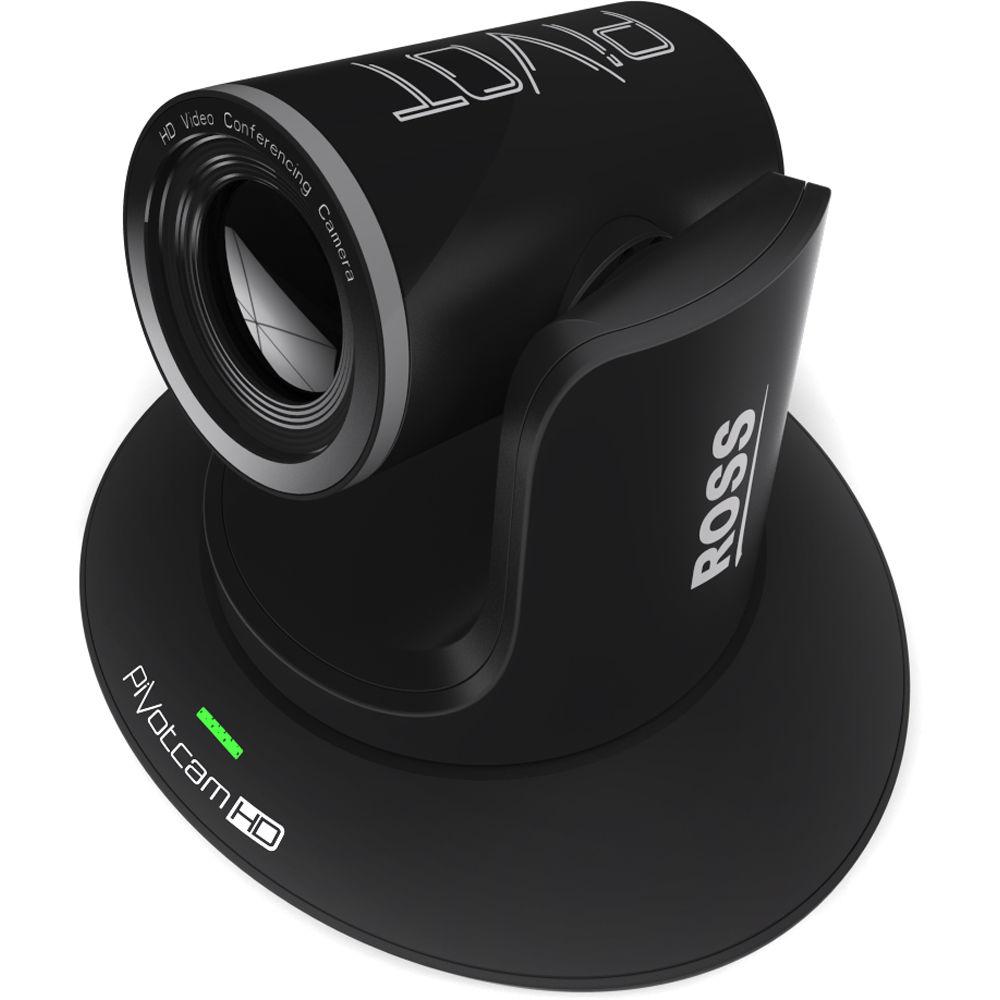

Product description The Ross Video PIVOTCam is a remote-controllable PTZ camera designed for installation in auditoriums, studios, and other venues producing HD or SD video content. Its 20x optical zoom combined with bright f/1.5 optics provide a clean and sharp image via DVI and SDI connections. With VISCA control available, this camera integrates perfectly with Ross Video switchers, like the Carbonite Black. Wall mounts are included to secure the camera without taking up valuable floor space. - Olympus optics provide 20x optical zoom
- Flexible formats including 720p, 1080i, and 1080p
- Total production control via DashBoard and the Lightning Control System, including 128 presets for store and recall of shots
- Camera control fully integrated with Ross production switchers

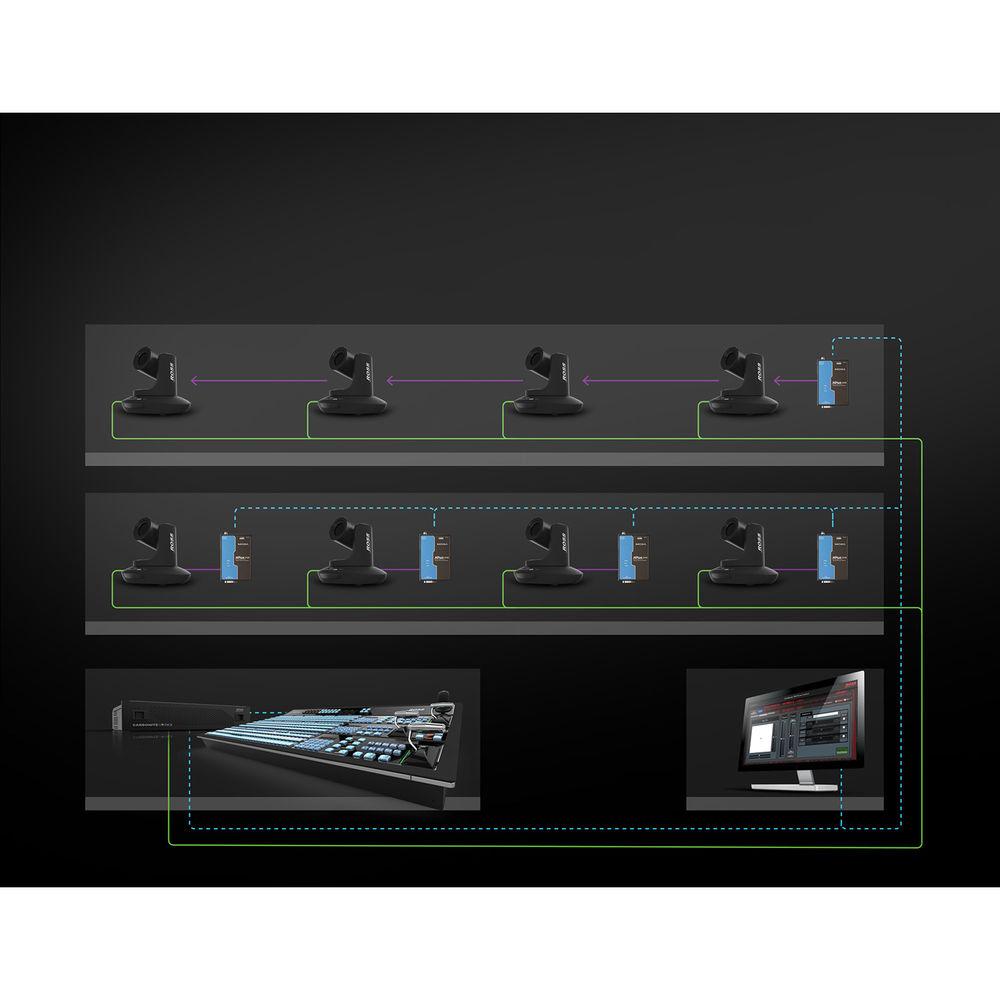

- Simple integration with existing camera control systems via VISCA protocols
- HD CMOS sensor offers flexible SD and HD formats, along with a low signal-to-noise ratio for clear images
- Silently performs smooth and quick maneuvers to get on the next shot
In the Box Ross Video PIVOTCam Power Supply Power Cord RS-232 Control Cable Remote Control Double-Sided Tape Wall Mounts Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ross Video PIVOTCam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

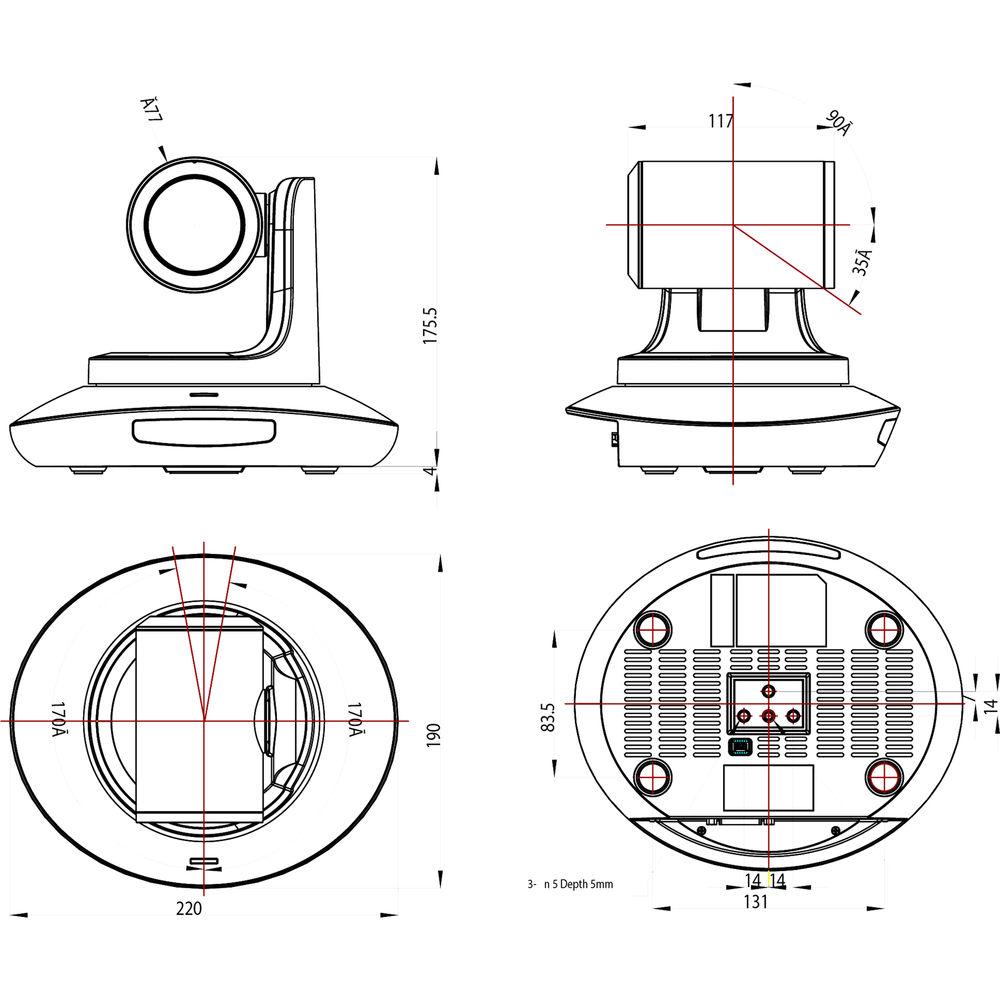

Technical parametersRoss Video PIVOTCam-20 Specs | Sensor | 1/1.8" 1952 x 1241 (2.42 MP) CMOS | | Active Pixels | 1920 x 1080, 2.07 MP | | Signal to Noise Ratio | 75 dB | | Formats Supported | 1080p: 59.94/50/29.97/25
1080i: 59.94/50
720p: 59.94/50/29.97/25 | | Zoom | 20x optical zoom
12x digital zoom | | Focal Length | 6.7-134.5mm | | Aperture | f/1.5-3.4 | | Minimum Illumination | 0.2 lux (day)
0.1 lux (night)
0.005 lux (DSS on) | | Exposure | 1/8 to 1/10000 (manual mode) | | Video Output | DVI-I, 3G-SDI | | Pan/Tilt Angle | Pan: 170°
Tilt: -35 to 80° | | Rotation Speed | Pan: 0.1 to 120°/s Tilt: 0.1 to 80°/s | | Controls | VISCA RS-232C/RS-485, Input: Mini DIN 8-pin type
VISCA RS-232C/RS-485, Output: Mini DIN 8-pin type
VISCA RS-485: 2-wire only | | Daisy Chain | Up to seven connections supported | | Installation | Desktop or suspended | | Presets | 128 presets in camera
Infinite presets in DashBoard | | Control Method | Ross production switchers
DashBoard software
Lighting control system
Overdrive automated production control (APC) | | Input Voltage | 12 VDC, 100-220 VAC, 50-60 Hz | | Current Consumption | 2 A maximum (12 VDC) | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Tripod Mount | 1/4"-20 | | Dimensions | 8.7 x 6.8 x 4.6" / 22 x 17.3 x 11.7 cm | | Weight | 2.8 lb / 1.25 kg | | | | Package Weight | 7.05 lb | | Box Dimensions (LxWxH) | 11.7 x 11.0 x 10.5" |
