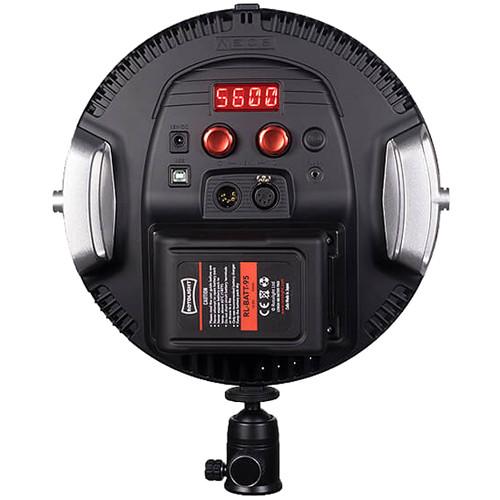

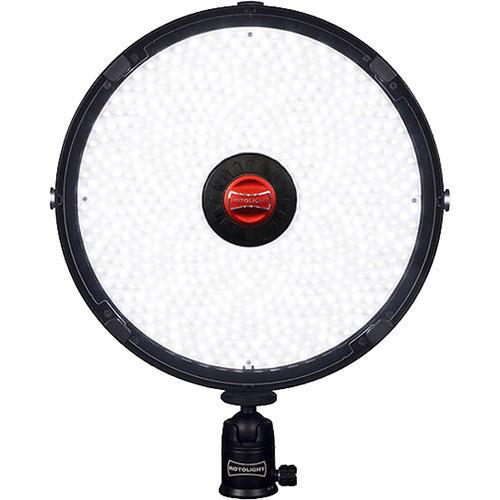

Product description Small enough for on-camera use, the 11.6" diameter AEOS Location LED Light from Rotolight also has a profile of just 0.78", allowing it to be used in very tight spaces, or due to cool-running LEDs, very close to the talent. The AEOS has an impressive color temperature control range, from a warm 3150 to a cool 6300K, to match other fixtures or ambient light conditions and it's fully dimmable. Both of these functions can be controlled on the unit or remotely via DMX. The light's output is rated 96 CRI and 91 TLCI, indicating high color fidelity. The AEOS runs on the included universal AC adapter or on optional batteries via the AEOS's V-mount battery holder.The AEOS has High-Speed Sync Flash Mode (HSS) that flashes at 250 to 500% of the maximum continuous light level. Since the AEOS has an integrated Elinchrom Skyport HSS Flash receiver, the separate purchase of a Rotolight EL-Skyport Transmitter Plus HS will allow you to wirelessly trigger the flash function and even control the color temperature of the flash output. Other features such as CineSFX provide several effects such as fire or lightning to create a sense of excitement or reality on set. True Aperture Dimming actually calculates the correct f-stop at a given distance, while Designer Fade supports custom up or down fades for interviews and video. The AEOS comes with a ball head that allows 360-degree rotation and 200-degrees of tilt, while the included 4-filter kit allows you to diffuse or tweak the color using the kit's filter holder. - Built-In Elinchrom Skyport HSS Flash Receiver
- The AEOS has an integrated Elinchrom Skyport Receiver for wireless triggering of the AEOS' flash function and support of High Speed Sync with cameras that have that function. The separate purchase of a Rotolight EL-Skyport Transmitter Plus HS compatible with your camera brand is necessary to take advantage of this feature. The transmitter uses a 2.4 GHz radio system with a range of up to 656' outdoors and 196' indoors. This system even offers access to 20 channels and four groups and can be used to remotely adjust brightness settings and color temperature. Remote access to CineSFX modes is available as well, and it can sync with other devices thanks to the inclusion of a 2.5mm sync port. Additionally, it runs on two AA batteries and has a mini-USB port for firmware updates.
- High-Speed Sync Flash (HSS)
- Provides a powerful HSS flash mode with zero recycle time at 250 -500% of the maximum continuous light output for traditional photographic workflows, enabling you to freeze action. This feature eliminates the need for users shooting both stills and video to buy a strobe, as it provides an all-in-one solution.
- Bi-Color
- Color temperature variable from 3150 to 6300K or anywhere in between.
- CineSFX
- Provides a suite of customizable cinematic lighting effects, such as lightning, fire, and TV flicker to enhance your video production.
- True Aperture Dimming
- Calculates and displays f-stop for a subject at a given distance, eliminating the need for trial and error shooting, or a light meter.
- Designer Fade
- Provides custom fade up/down production effects for interviews.
- AccuColour
- AccuColour LED phosphor technology ensures the AEOS delivers exceptional color rendering (CRI: 96+, TLCI: 91), eliminating the need to spend time and money correcting color and skin tones in post-production.
- Color Range
- 3150-6300K, integrated accurate Kelvin display.
- Control:
- Local, DMX, or PC sync (Flash).
- Power
- V-Lock battery or mains power, (42W consumption at 100% power). Delivers over 3 hours run time on a standard 95Wh battery.
- Mounting

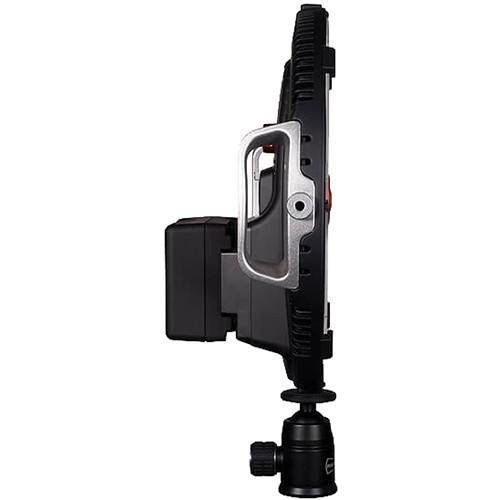

- Integrated aluminum handles, selectable 3/8"-16 or 1/4"-20 female thread or the included 360-degree Pro Ball Head.
- LED
- 100,000-hour LED lifespan - totally flicker-free technology.
- Filters
- Includes 218 Full Diffuser, 250 Medium Diffuser, 184 Cosmetic Peach, 279 1/8 Magenta.
- Lightweight Design
- 3 lb (1.5kg)
- Powerful
- Powerful, soft light output (5750 lux at 3'), reflects signature catch light.
In the Box Rotolight AEOS Location LED Light Professional 360 Ball Head for AEOS LED Light vssaceruszzecwtaarfceqrqsx Replacement Filter Pack for AEOS Power Supply for AEOS LED Light Filter Holder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rotolight AEOS Location LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRotolight Aeos Specs | Light Source | LEDs (100,000-hour lifetime) | | Color Range | 3150-6300K | | CRI / TLCI | 96 (98 Skintone) / 91 | | Power | 100-240 VAC, 50/60 Hz or optional V-Mount battery | | Power Consumption | 42 W at 100% power | | Control | Dimming locally on the fixture or remotely via DMX
Local, DMX, or PC sync (flash)
Compatible EL-Skyport wireless transmitter/receiver system | | Run Time | 3.0 hours with optional 95Wh battery | | Dimming | Yes, locally on the fixture or remotely via DMX | | Photometrics | 5750 lux @ 3.0' (0.9 m) | | Mount | 1/4"-20 and 3/8"-16 female threads
Included ball head | | Dimensions | 11.6 x 11.6 x 0.78" / 29.5 x 29.5 x 2.0 cm | | Weight | 3.0 lb / 1.4 kg | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 15.7 x 15.4 x 6.0" |
