User Manual for Rotolight Anova Pro 56K-S LED Light Click to enlarge the picture
Contents of the user manual for the Rotolight Anova Pro 56K-S LED Light
- Product category: LED Lights Rotolight
- Brand: Rotolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rotolight LED Lights
 |
User manual for the Rotolight Anova Pro 56K-S LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rotolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rotolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rotolight product will considerably shorten its lifespan!
|

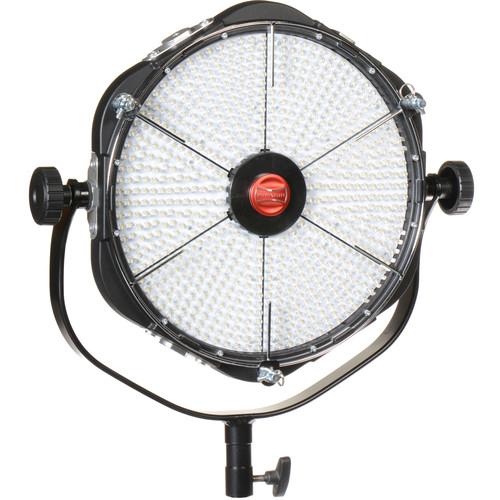

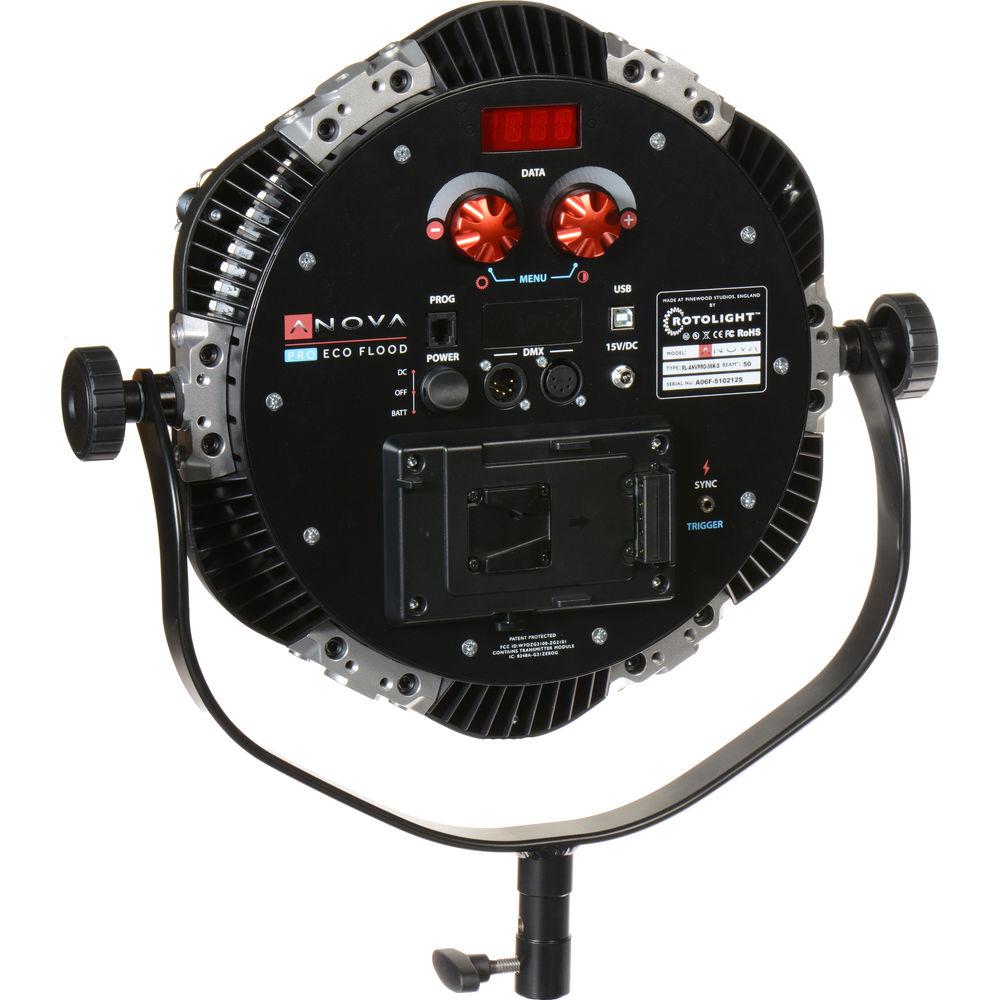

Product description Rotolight Anova Pro Conserves Power Brightly Read More The Anova Pro 56K-S LED Light from Rotolightis a powerful daylight-balanced LED fixture that outputs an impressive 3,121 lumens at a distance of three feet using only 51W of power, 94% less power than a tungsten light of similar brightness. The Anova Pro has a host of unique features, thanks to CINESFX technology that provides effects such as Strobe, Lightning, Fire, Cycle, Throb, Police, TV, Spin, Weld, Spark, Film, Neon and Gunshot. You can even sync your still camera to the Anova Pro for use as a studio strobe. True Aperture Dimming calculates and displays the correct aperture (f-stop) for your subject at a given distance, facilitating your workflow by eliminating the need for metering. Alternatively, you can set your brightness level manually for your preferred aperture. Designer Fade mode provides custom fade up / down interview / production effects for DSLR videographers and creative cinematographers, reducing the time required in post- production. The Anova Pro is powered by its universal AC adapter or by optional V-Mount batteries when mains power is unavailable. - CINESFX
- Provides a powerful arsenal of customizable lighting FX (CineSFX) for television / production / feature film application on set or location (Strobe, Lightning, Fire, Cycle, Throb, Police, TV, Spin, Weld, Spark, Film, Neon and Gunshot). CINESFX eliminates the need for legacy 'flicker box' workflows, saving significant time and cost to achieve powerful lighting FX.
- Flash Sync
- Flash Sync and remote triggering allows Anova Pro to be integrated into a traditional photography workflow, whilst providing a hyper-accurate modeling light, along with control of flash power/duration color temperature and offset, combining the advantages the best of both legacy strobe technology and continuous "shoot what you see light output."
- True Aperture Dimming
- Calculates and displays the correct aperture (f-stop) for your subject at a given distance, facilitating your workflow by eliminating the need for metering. Alternatively, dynamically adjust your brightness level, to work at your desired aperture.
- Designer Fade
- This mode provides custom fade up / fade down interview/ production effects for DSLR videographers and creative cinematographers, reducing time required in post production.

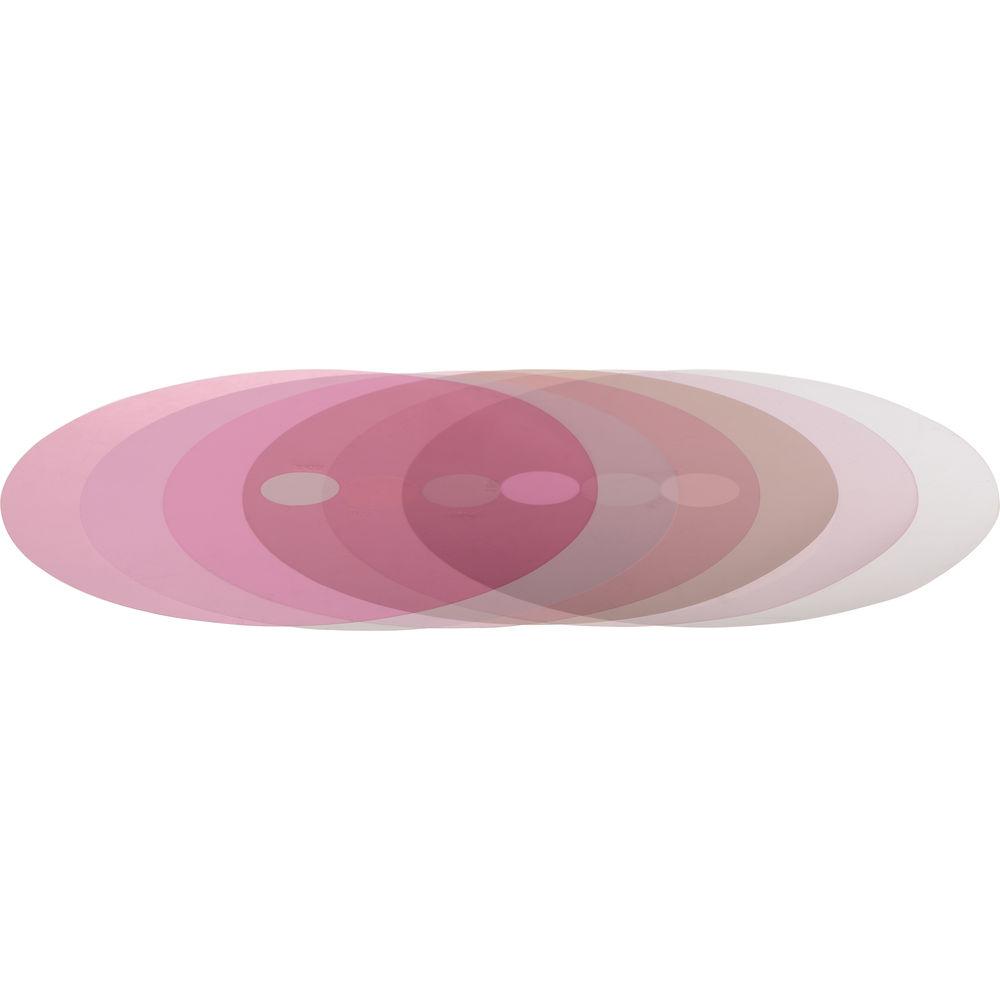

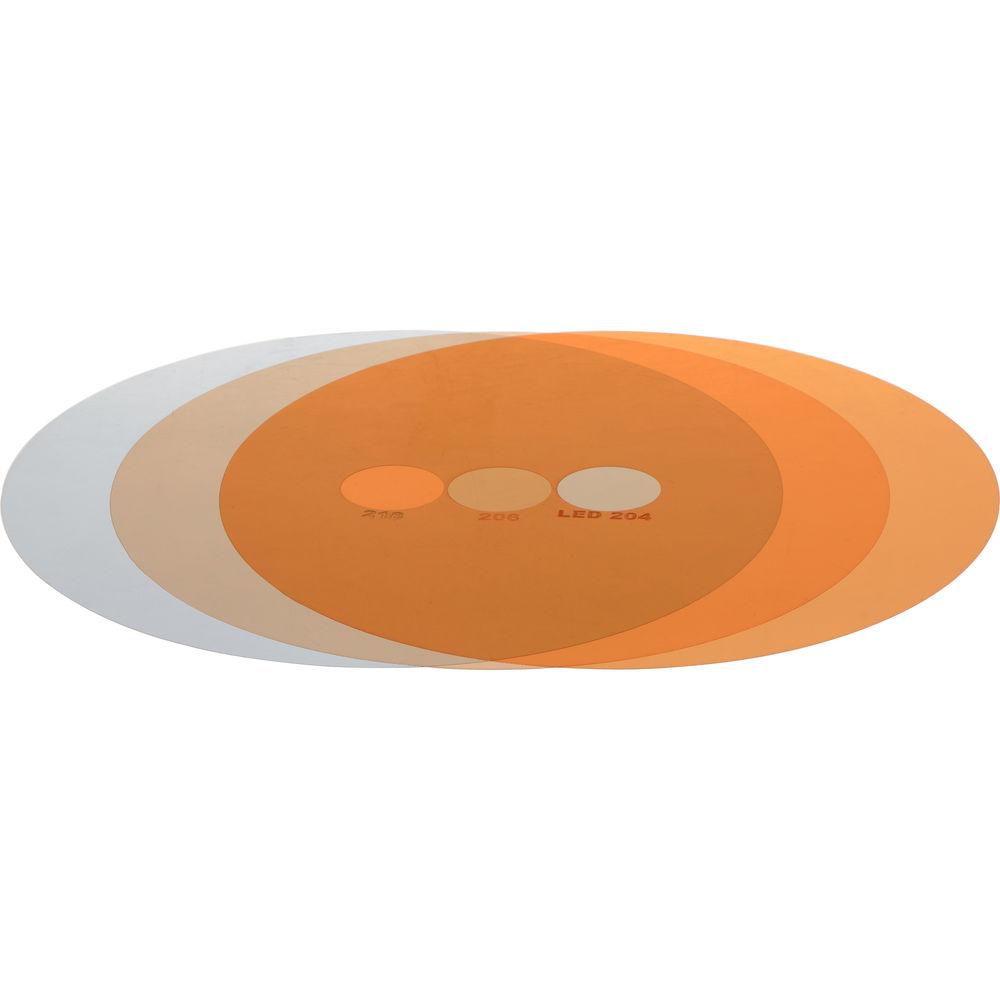

In the Box Rotolight Anova Pro 56K-S LED Light AC Adapter User Manual Green (1/2) Filter Green (1/4) Filter Green (1/8) Filter Full (1.5 Stop) Diffusion Filter 3/4 Diffusion (0.5 Stop) Cosmetic Peach (1 Stop) Filter Color Balance Filter (6300K) Color Balance Filter (4400K) Color Balance Filter (3200K) Limited 1-Year Warranty User Manual PDF 6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rotolight Anova Pro 56K-S LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRotolight Anova Pro 56K-S Specs | | | Beam Angle | 50° | | Color Temperature | 5600K ± 100K | | Color Accuracy Standard | CRI 91
TLCI 86 | | Cooling System | None | | Dimming | Yes | | Display | None | | Lumens | 3892 | | Fixture Dimensions | 17.3 x 19.4 x 4.2" / 44.0 x 49.3 x 10.7 cm | | Fixture Weight | 5.45 lb / 2.47 kg
7.36 lb / 3.34 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount | | DMX Connector | 5-Pin XLR | | Service Connector | USB Type-B | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 15 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 51 W | | | | Package Weight | 14.45 lb | | Box Dimensions (LxWxH) | 23.0 x 22.25 x 8.5" |
