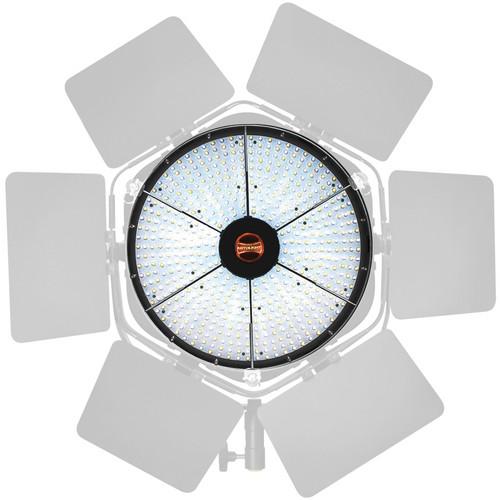

User Manual for Rotolight Anova Solo 5600K Standard LED EcoFlood Click to enlarge the picture
Contents of the user manual for the Rotolight Anova Solo 5600K Standard LED
- Product category: LED Lights Rotolight
- Brand: Rotolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rotolight LED Lights
|
User manual for the Rotolight Anova Solo 5600K Standard LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rotolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rotolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rotolight product will considerably shorten its lifespan!
|
Product description The Anova Solo 5600K Standard LED EcoFlood by Rotolight is a revolutionary LED flood light source with a host of features that will make it indispensable in the studio or on location for large or small productions. Weighing 7.0 lb and measuring 17.3 x 19.4 x 4.2" the Anova manages to output the impressive equivalent of 3900W of tungsten light with a beam angle of 50 degrees. That kind of power requires sophisticated control so the Anova Solo provides wired DMX, Wi-Fi and back panel control options. There's even an optional iPhone / iPad App that allows you to sample the ambient light's color and intensity and accurately reproduce it on site. You can then transmit the info anywhere in the world to match up multiple Anovas being used on location. A fader function allows you to control multiple lights and settings with transitions, wirelessly. The Anova Solo comes with a TVMP connector for 5/8" stud light stands, as well as a 9 piece filter set that includes diffusion, minus green, cosmetic peach and CT Blue and Orange filters. Optional accessories include a louver, barndoors, aluminum hard flight case, softbox, Fresnel attachment, reflectors, and a T-Connector plate. - 5600K Balance
- Daylight balance accurate to +/- 100K. Correction filters are included to achieve 6300K, 4400K or 3200K color balance.
- 50-Degree Beam Angle
- High output for long throw applications.
- Optional Magic Eye App
- Uses iPhone / iPad App to accurately sample both color temperature and intensity and wirelessly transmit and recall settings with DMX-style fader control across the globe to Anova lights on location.
- V-Mount Battery Plate
- A V-mount plate for battery operation is included.
- Wi-Fi and DMX
- Includes built-in Wi-Fi and wired DMX, allowing wireless remote control of brightness, color temperature and system settings via iPhone or iPad.
- Tessellating Design
- Anova's unique design allows users to create a huge honeycomb array of Anovas for larger projects using optional T-Plate connectors and custom yokes.
In the Box Rotolight Anova Solo 5600K Standard LED EcoFlood Lee 216 (Full Diffuser) Lee 250 (2/3 Diffuser) Lee 184 (Cosmetic Peach) Lee 279 (1/8 Minus Green) Lee 249 (1/4 Minus Green) Lee 248 (1/2 Minus Green) Lee 218 (1/8 CT Blue) Lee 206 (1/4 CT Orange) Lee 204 (Full CT Orange) TVMP Mount Limited 1-Year Warranty User Manual PDF 13.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rotolight Anova Solo 5600K Standard LED EcoFlood in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRotolight Anova Solo Specs | | | Beam Angle | 50° | | Color Temperature | 5600K ± 100K | | Color Accuracy Standard | CRI 90 | | Cooling System | None | | Dimming | Yes | | Display | None | | Fixture Dimensions | 17.3 x 19.4 x 4.2" / 44.0 x 49.3 x 10.7 cm | | Fixture Weight | 5.5 lb / 2.5 kg
7.0 lb / 3.2 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount | | DMX Connector | 5-Pin XLR | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Wi-Fi | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 41 W | | | | Package Weight | 14.15 lb | | Box Dimensions (LxWxH) | 22.835 x 22.205 x 8.583" |
