User Manual for Rotolight RL48 Interview Kit V2 Click to enlarge the picture
Contents of the user manual for the Rotolight RL48 Interview Kit V2
- Product category: On Camera Lights Rotolight
- Brand: Rotolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rotolight On Camera Lights
 |
User manual for the Rotolight RL48 Interview Kit V2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rotolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rotolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rotolight product will considerably shorten its lifespan!
|
Product description The Rotolight RL48 Interview Kit V2 centers on two portable LED ring lights that you can mount in various setups around your subject. Two included stands enable mounting on shoe adapters and on 1/4" studs. Using one stand, you can attach one light on your camera's shoe mount and the other on a tripod, lighting stand, pole or other compatible support accessory. The lights also slide right onto most shotgun mics.
Each light features 48 grade-A LED bulbs and delivers an 80W equivalent intensity in a 110° beam angle. You can get the lights as close to your subject as 1.5". Color temperature is fixed at 5600K daylight, and using included filters you can adjust the temperature to 6300K, 4100K and 3200K. You also get filters for diffusion, color and cosmetic effects, and for dimming brightness over a range of 1.5 aperture stops. The filters insert into holders inside the lights. In all you get 24 LEE filters, two packs of 7 that come with each light, and a pack of 10 included with the kit. The lights each power by three optional AA batteries for up to four continuous hours.

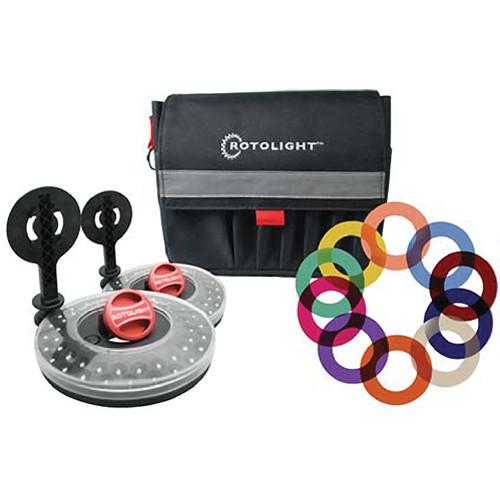

The kit also includes a belt-pouch designed with compartments and pockets to hold both lights, 6 batteries, one stand and a smart-phone. 24 Included LEE Filters - Color Temperature
-
- 2x 6300K Direct Daylight 1/8 CTB #218
- 2x 4100K Mixed Light 1/2 CTO #205
- 2x 3200K Tungsten 15/16 CTO #3200
- Diffusion and Neutral Density
-
- 2x Diffusion Screen #216
- 2x Neutral Density 0.5 Stop #298
- 2x Neutral Density 1 Stop #209
- Color and Cosmetic Effects
-
- 2x 1/8 Minus Green (Magenta) #279
- Medium Amber 020: for afternoon sunlight, candlelight, and side lighting
- Light Lavender 052: for general areas, side lights, basic followspot color and backlight
- Pale Blue 063: cool front light wash for creating an overcast look for cold weather
- Bright Pink 128: for backlighting and side lighting; useful for musicals
- Light Red 182: for theater and television effect lighting as well as cycloramas
- Bedford Blue 712: a smoky warm blue for skin tones
- Liberty Green 730: green for creating mystery and suspense
- Sunlight Yellow 765: for producing a strong sunlight effect
- Cosmetic Peach 184: warm highlight or front light; complementary for most skin tones
- Moroccan Frost 791: smoothes PAR or flood washes of large areas; for houselights and interior color washes
In the Box Rotolight RL48 Interview Kit V2 2 x RL48-B LED RingLight Stealth Edition 2 x Stand for RL48-A & RL48-B Add-On Color Filter Pack for RL48-A & RL48-B Video Accessory Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rotolight RL48 Interview Kit V2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRotolight RL 48-IK-V2 Specs | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 5.3" / 138 mm | | Weight | 6 oz / 90 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.9 x 8.4 x 4.4" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
