Rotolight Sound and Light Kit

Search your instruction manual in PDF to download

User Manual for Rotolight Sound and Light Kit

Click to enlarge the picture
Rotolight Sound and Light Kit Contents of the user manual for the Rotolight Sound and Light Kit
  • Product category: On Camera Lights Rotolight
  • Brand: Rotolight
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Rotolight On Camera Lights

Rotolight Sound and Light Kit Rotolight Sound and Light Kit Rotolight Sound and Light Kit
User manual for the Rotolight Sound and Light Kit contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Rotolight product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Rotolight user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Rotolight product will considerably shorten its lifespan!



Product description

The Rotolight Sound and Light Kit combines an LED ringlight with a compact condenser shotgun mic for use with DSLR cameras and camcorders. The kit features the Rotolight RL48-B LED ringlight, Roto-Mic condenser shotgun microphone, and a set of accessories to get the most out of both products.

The microphone is equipped with an integrated shockmount and hot shoe adapter for attaching to your camera or camcorder. A 3.5mm mini-jack is provided for plugging into your camera's audio input. Gain is switchable form -10, 0, and +10 dB, letting you adjust for loud and quiet audio sources, and a two step high pass filter helps eliminate unwanted low frequency noise and rumble. The microphone is powered using a 9V battery, providing up to 100 hours of use. A Dead Kitten and foam windshield, Roto-Mic carry pouch, and spare rubber bands for the shock-mount come included.

The RL48-B slips over the Roto-Mic to provide a 140° beam angle, providing soft, diffuse continuous lighting for both video and still photography. The color temperature is selectable from 6300K, 5600K, 4100K, and 3200K. The light has an equivalent output of 100W and is powered using three AA batteries, providing up to four hours of continuous use. Included with this kit is a stand mount with hot shoe accessory adapter, an accessory belt pouch, and a set of seven filters, including CTO, CTB, two neutral density, diffusion, and minus green filters.

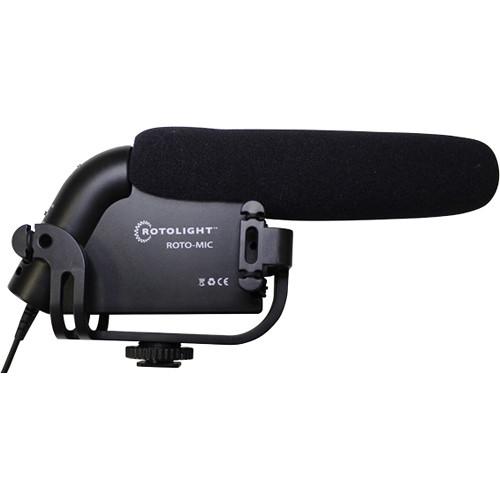

    Roto-Mic
    • Condenser shotgun microphone
    • Integrated shockmount and hot shoe adapter
    • Two step high pass filter
    • 3.5mm mini-jack cable
    • Dead Kitten and foam windshield
    • Carrying pouch included

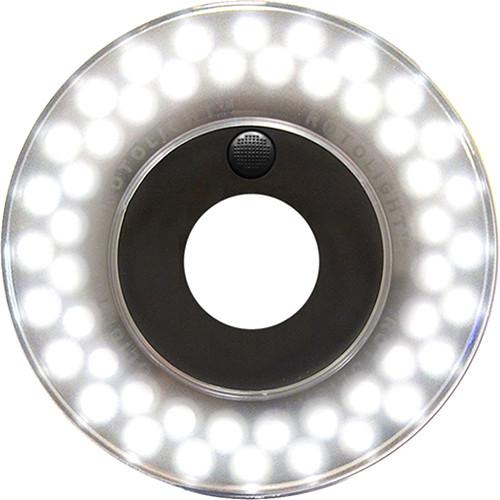

    Rotolight RL48-B
    • LED ringlight
    • 100W Equivalent light output
    • 140° Beam angle
    • 6300K, 5600K, 4100K, & 3200K Adjustable
    • Seven filters
    • Stand mount with hot shoe adapter included
    • Accessory Belt Pouch
In the Box Rotolight Sound and Light Kit
  • Roto-Mic Condenser Shotgun Microphone
  • Dead Kitten Windshield
  • Foam Windshield
  • Roto-Mic Carry Pouch
  • Spare Rubber Bands for Shock-Mount
  • RL48-B LED RingLight Stealth Edition
  • Video Accessory Pouch
  • Stand for RL48-A & RL48-B sezdzsrxdqbcrfcxzwqczbdedyvtb
  • Lee 205 Filter
  • 3200 CTO Filter
  • Lee 218 CTB Filter
  • Lee 209 ND Filter
  • Lee 298 ND Filter
  • Lee 216 Diffusion Filter
  • Lee 279 1/8 Minus Green Filter
  • Limited 1-Year Warranty
  • User Manual PDF 1.8mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Rotolight Sound and Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Rotolight RL 48-SL-KIT Specs

    Type Uni-directional condenser
    Frequency Response 40 Hz to 20 kHz
    Gain Control -10 dB, 0 dB, +10 dB
    High Pass Filter Two step: 80 Hz or Flat
    Power 1 x 9 V Battery
    Battery Life Approx. 100 hours
    Mount Hot shoe adapter
    Power Connector 3.5 mm, mini-jack
    Dimensions 8.7 x 2.4 x 3.9" (22 x 6 x 10 cm)
    Weight 4.3 oz (122 g)
    Tungsten Equivalent 100 W
    Lux 242 lux at 3.28' (1 m)
    Beam Angle 140°
    Color Temperature 6300K, 5600K, 4100K, 3200K
    CRI > 91
    Power 3 x AA batteries
    Battery Life Approx. 4 hours of continuous use
    Dimensions Outside diameter: 5.4" (13.8 cm)
    Inside diameter: 1.5" (3.8 cm)
    Weight 6 oz (170 g)
    Package Weight 1.8 lb
    Box Dimensions (LxWxH) 11.0 x 8.5 x 4.3"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 15 owners. Add your rating and experience with the product.
