Product description
ROXOR GIMBAL DEMO VÍDEO 2016 HD
ROXOR Gimbal Camera open box
ROXOR Gimbal Camera 2.7K@60Mbps President of Swiss Confederation
ROXOR Gimbal Camera 720@120P[Slow Motion] Original Video
ROXOR Gimbal Camera 4K Original Video

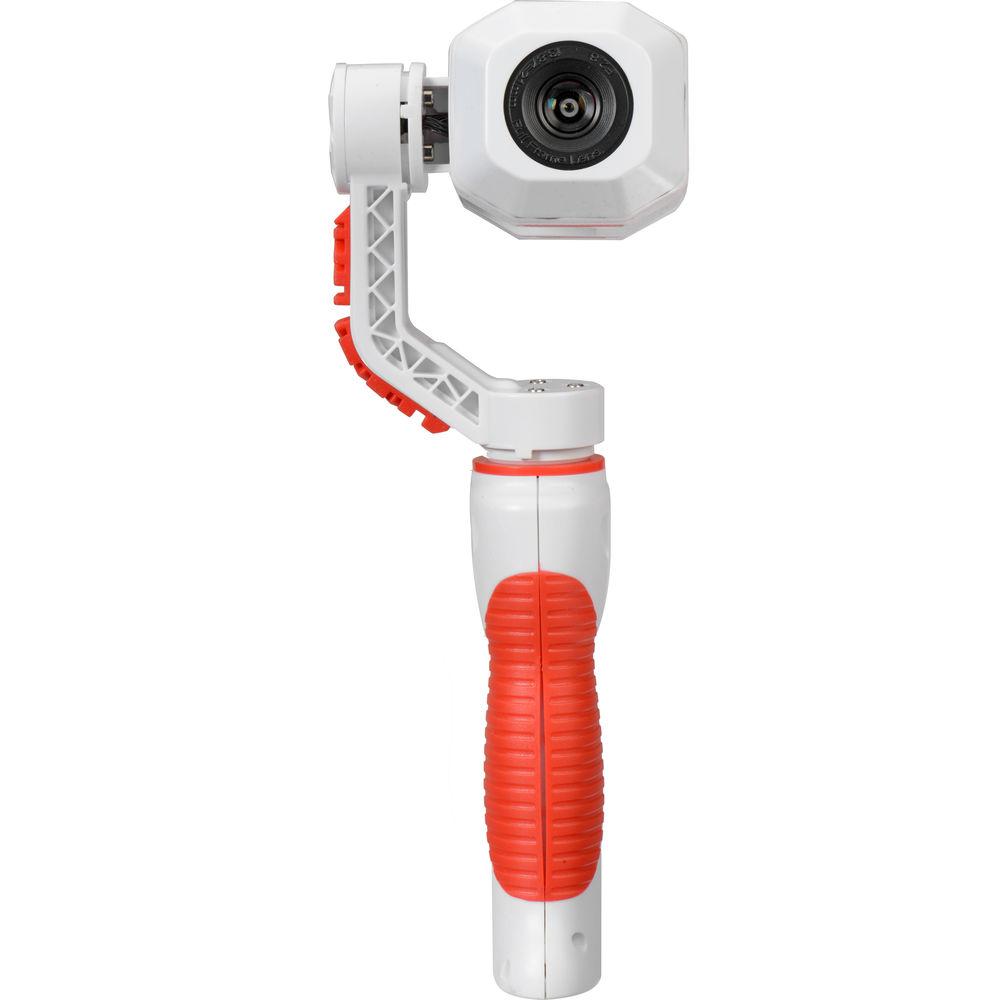

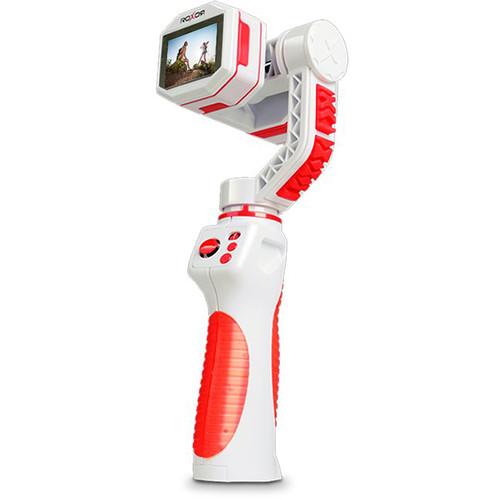

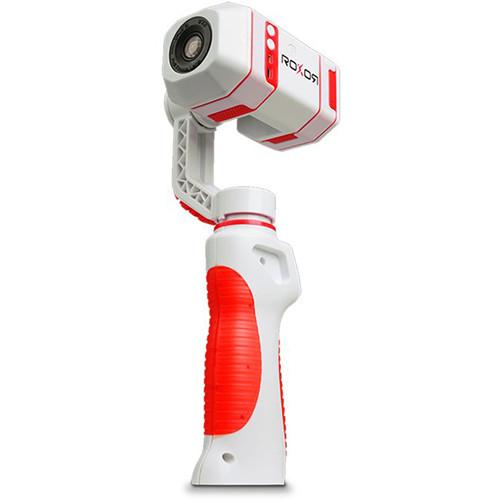

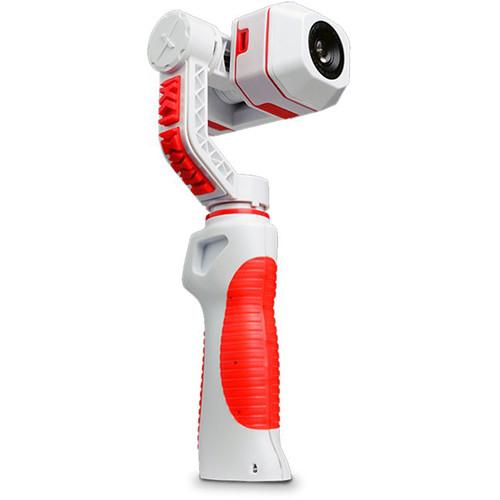

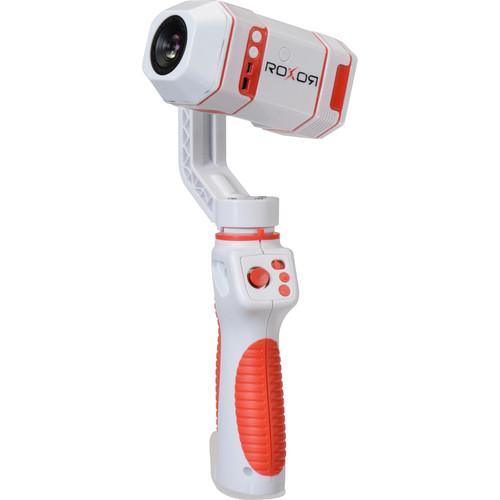

The ROXOR Handle Gimbal Camera combines a camera and 3-axis motorized gimbal into a single handheld unit for shooting fully stabilized video and photos. Featuring a 12.4MP 1/2.3" type Sony CMOS sensor, the ROXOR is capable of capturing up to UHD 4K video at 10 fps, as well as 20MP interpolated photos. For standard frame rate recording, you can record 1080p video up to 60 fps, with 120 fps available at 720p resolution for slow-motion playback. Video can be monitored using an integrated rear LCD screen, or externally over Wi-Fi on your smartphone using a dedicated app.
In addition to video monitoring, the smartphone app enables full gimbal and camera control. Your smartphone can be mounted directly to the handle using an included detachable smartphone holder. Also included is a waterproof wrist-worn remote controller, lanyard, battery, and battery charger. The battery provides approximately two hours of continuous use. All the items, along with the ROXOR itself, can be safely stored inside an included hard case.
Key Features
Three-axis motorized handheld gimbal with built-in camera
12.4MP 1/2.3" Back-illuminated Sony CMOS sensor
UHD 4K Video at 10 fps
1080p up to 60 fps / 720p up to 120 fps / 480p at 240 fps
20MP Still images

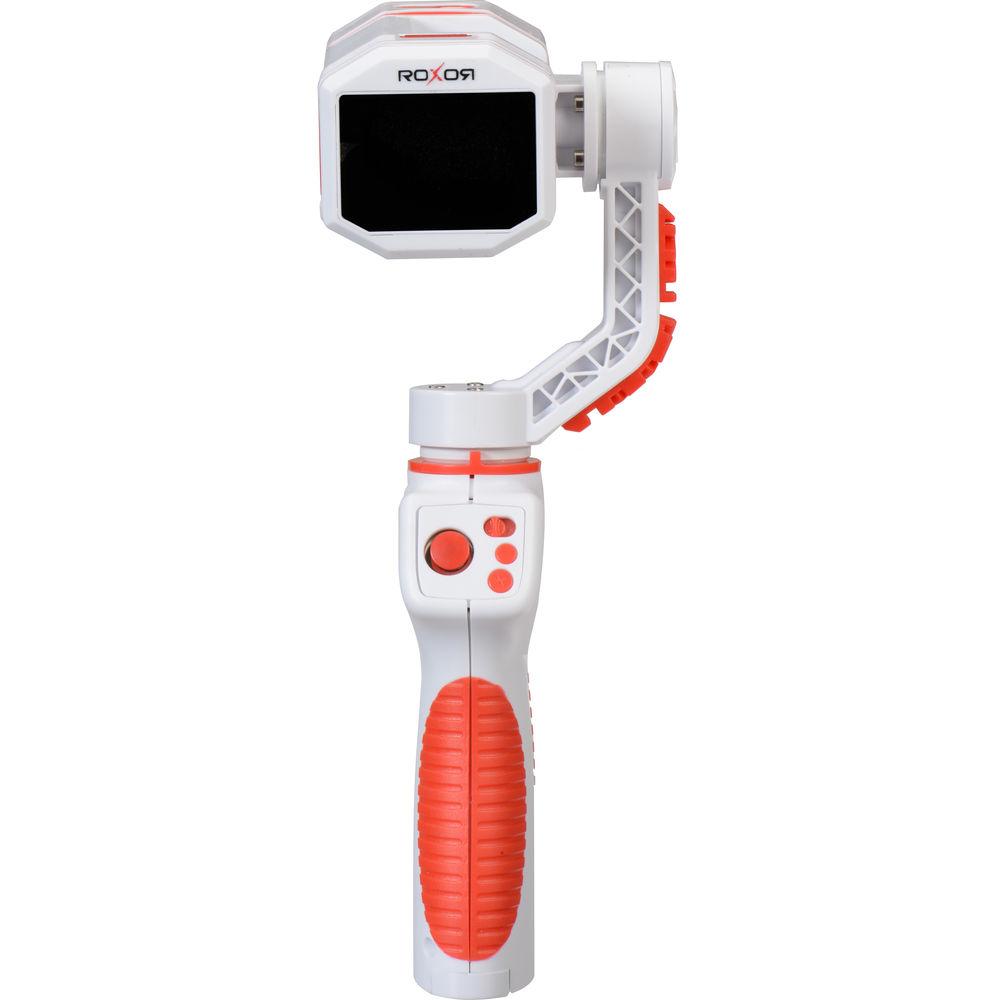

Integrated 2" rear LCD screen
Built-in Wi-Fi for external monitoring and control using smartphone
Interval capture for time lapse
Records to microSD cards up to 32GB
Wireless waterproof wrist-worn remote control included
Rechargeable battery provides approximately two hours of continuous use
Detachable smartphone holder

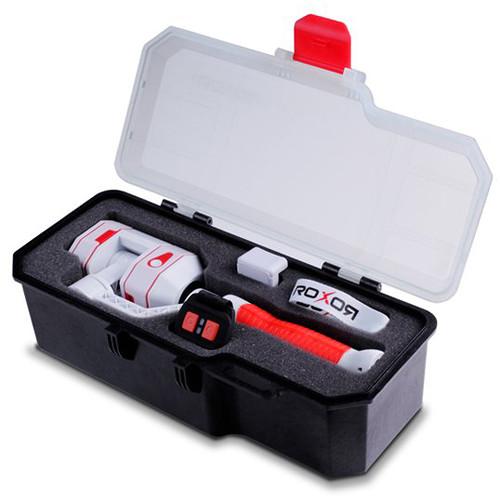

Hard case for storing ROXOR and accessories

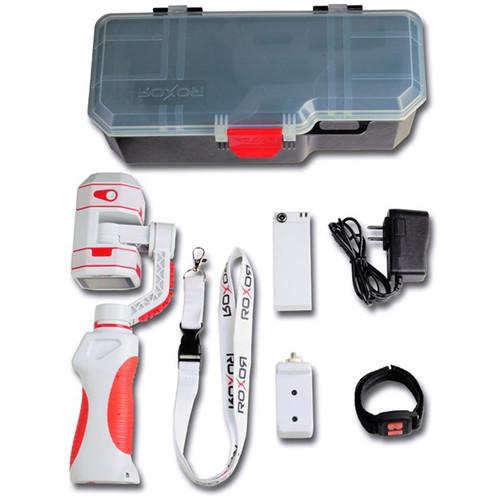

UPC: 643451958805 In the Box ROXOR Handle Gimbal Camera
Waterproof Wrist Remote Controller
Phone Holder
Battery
Charger
Lanyard

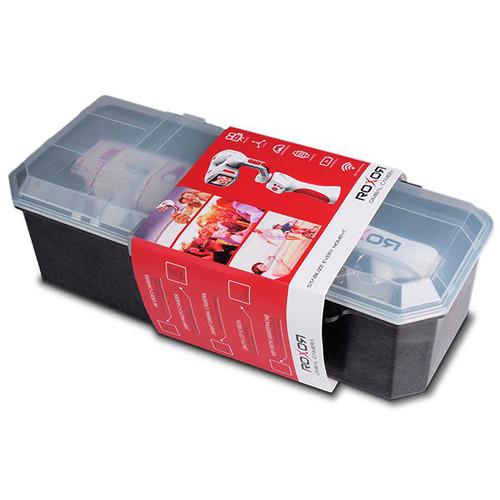

Storage Case
Limited 1-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the ROXOR Handle Gimbal Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
ROXOR ROXOR Specs
Sensor
1-Chip 1/2.3" CMOS
Sensor Resolution
12.4 MP
Maximum Aperture
f/2.8
Lens Elements
8
Recording Media
x microSD/HC (32 GB Maximum)
Video Format
3840 x 2160p 1920 x 1440p at 30 fps 1920 x 1080p at 25/30/50/60 fps 1280 x 720p at 25/30/50/60/120 fps 640 x 480p at 240 fps
Still Image Resolution
JPEG: 20 Megapixel
Channels
Stereo
Display Type
LCD
Touchscreen
No
Screen Size
2"
Resolution
960 x 480
Exposure Modes
Modes: Auto Compensation: -2 EV to +2 EV
Interval Recording
.5 Second 1 Second 3 Second 5 Second 10 Second 30 Second 60 Second
Burst Photo
10 Photos / 1 Second
Remote Control
2.4G Wireless Waterproof Wrist Remote (Included)
Image Stabilization
Optical 3-axis motorized gimbal
Built-In Mic
Yes
Built-In Speaker
Yes
Wi-Fi
Yes
Outputs
1 x USB Mini-B 1 x Micro-HDMI (Type D)
Battery
Rechargeable Battery Pack Max Runtime: 2 Hours per Charge
Charging Method
AC Adapter
Dimensions (W x H x D)
10.6 x 3.7 x 4.3" / 27.0 x 9.5 x 11.0 cm
Weight
17.78 oz / 504 g
Package Weight
2.92 lb
Box Dimensions (LxWxH)
14.05 x 6.7 x 5.5"
