Royer Labs R-10-MP Large-Element Ribbon Microphone

Search your instruction manual in PDF to download

User Manual for Royer Labs R-10-MP Large-Element Ribbon Microphone

Click to enlarge the picture
Royer Labs R-10-MP Large-Element Ribbon Microphone Contents of the user manual for the Royer Labs R-10-MP Large-Element Ribbon Microphone
  • Product category: Ribbon Microphones Royer Labs
  • Brand: Royer Labs
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Royer Labs Ribbon Microphones

Royer Labs R-10-MP Large-Element Ribbon Microphone Royer Labs R-10-MP Large-Element Ribbon Microphone Royer Labs R-10-MP Large-Element Ribbon Microphone
User manual for the Royer Labs R-10-MP Large-Element Ribbon Microphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Royer Labs product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Royer Labs user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Royer Labs product will considerably shorten its lifespan!



Product description

The Royer R-10-MP is a matched pair of passive large-element ribbon microphones designed to deliver smooth, full-range frequency reproduction and high SPL handling for musicians, recording engineers, and live sound mixers in home studios, recording facilities, and live stage applications. Hand-built in California, each mic features a high maximum SPL of 160 dB and a wide, un-hyped frequency response of 30 Hz to 15 kHz. The R-10 utilizes a standard XLR 3-pin output and does not require phantom power.Its figure-8 polar pattern allows pickup of sounds from the front and back of the mic, while maximizing sound rejection from both sides. This provides a directional focus in front of the microphone and allows room reflections behind the mic to be captured. The 2.5-micron aluminum ribbon element is protected from vibrations via an internal shockmount. A three-layer windscreen system tames plosives, strong bursts of air, and proximity-induced bass buildup. The wiring of the ribbon results in humbucking, which aids in preventing noise produced through electromagnetic interference.The R-10-MP ships with two microphone holders, two mic socks, and a carrying case.
  • Figure-8 polar pattern picks up sound from the front and back of the mic and rejects sounds from the sides
  • High maximum SPL of 160 dB allows use on loud sources such as drums and electric guitars
  • 2.5-micron aluminum ribbon constructed with Royer's patented direct-corrugation process
  • 30 Hz to 15 kHz frequency response for full range without harsh high frequencies
  • Built-in windscreen system utilizes three layers to protect against air blasts and plosives and reduce proximity effect
  • Internal shockmount isolates the ribbon from vibration and increases its durability
  • Open grille design reduces standing waves and comb-filtering effects
  • Custom-designed transformer minimizes saturation even at high SPLs
  • Wired for humbucking to reject electromagnetically induced noise
  • Includes microphone holder, mic sock, and carrying case
  • Hand-built in Burbank, California

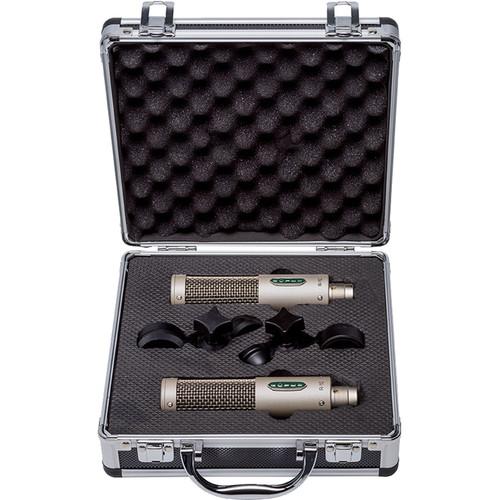

UPC: 899060002686 In the Box Royer Labs R-10-MP Large-Element Ribbon Microphone (Matched Pair)

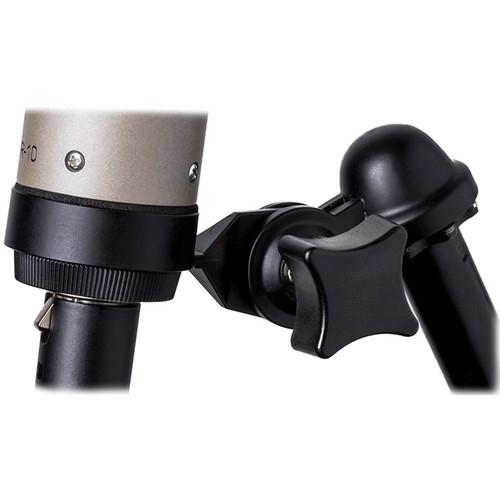

  • 2 x Microphone Holder
  • 2 x Microphone Sock
  • Carrying Case
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Royer Labs R-10-MP Large-Element Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Royer Labs R-10-MP Specs

    Sound Field Mono
    Operating Principle Pressure Gradient
    Transducer Ribbon
    Tube No
    Polar Pattern Figure-8
    Frequency Range 30 Hz to 15 kHz
    Maximum SPL 160 dB SPL 160 dB SPL @ 1 kHz
    135 dB SPL @ 50 Hz
    Pad None
    Impedance 100 Ohms
    Load Impedance 700 Ohms
    Sensitivity -54 dBV/Pa
    Low-Cut Filter None
    Output Connectors 1 x 3-Pin XLR
    Length 5.87" / 149 mm
    Diameter 1.38" / 35 mm
    Weight 12.98 oz / 368 g
    Package Weight 4.25 lb
    Box Dimensions (LxWxH) 9.9 x 9.1 x 3.5"
