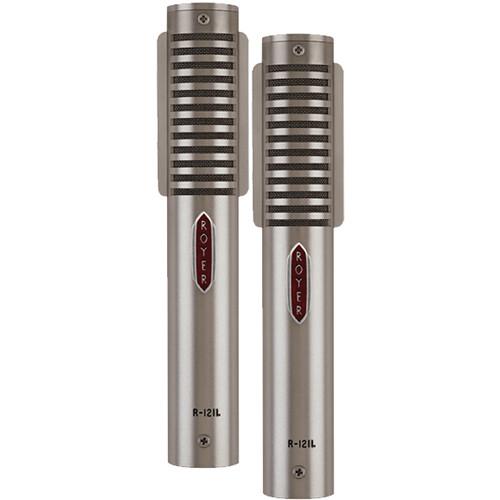

User Manual for Royer Labs R-121 Live MP Ribbon Microphone Click to enlarge the picture
Contents of the user manual for the Royer Labs R-121 Live MP Ribbon
- Product category: Ribbon Microphones Royer Labs
- Brand: Royer Labs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Royer Labs Ribbon Microphones
|
User manual for the Royer Labs R-121 Live MP Ribbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Royer Labs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Royer Labs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Royer Labs product will considerably shorten its lifespan!
|
Product description The R-121 Live MP from Royer is a matched pair of microphones that are based off the R-121 ribbon microphone that has been specially enhanced for live performance applications. The 4-micron aluminum ribbon has a figure 8 polar pattern to provide equal sensitivity on both sides of the element. It also provides consistent performance, regardless of the distance of a sound source.
The ribbon has a smooth, natural response and no active electronics to overload or produce distortion. This gives the mic an exceptionally low self-noise and high SPL capability, and a lack of phase distortion at high frequencies. The ribbon is designed to be exceptionally durable, and it is not affected by heat or humidity, allowing you to take it between venues without worrying about damage. - 4-micron aluminum ribbon is thick and durable, and requires less EQ than a traditional dynamic or condenser mic thanks to its smooth high frequency response
- Figure 8 polar pattern provides equal sensitivity on both sides of the element
- Smooth, natural response provides consistent performance, regardless of the distance of a sound source
- Absence of active electronics prevents overload and distortion giving the mic an exceptionally low self-noise, high SPL capability, and a lack of phase distortion at high frequencies
- Ribbon is not affected by heat or humidity, allowing you to take it between venues without worrying about damage
UPC: 899060002297 In the Box Royer Labs R-121 Live MP Ribbon Microphone (Matched Pair, Nickel) Protective Wood Case Mic Sock Limited Lifetime Warranty Limited 1-Year Warranty on Ribbon Table of Contents
|
Upload User Manual
Have you got an user manual for the Royer Labs R-121 Live MP Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoyer Labs R-121 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 30 Hz to 15 kHz | | Maximum SPL | 135 dB SPL | | Impedance | 300 Ohms @ 1 kHz | | Load Impedance | 1500 Ohms | | Sensitivity | -50 dBV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.13" / 155.70 mm | | Diameter | 1.00" / 25.4 mm | | Weight | 8.61 oz / 244 g | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 18.0 x 14.0 x 6.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
