User Manual for Royer Labs R-122 MKII Active Ribbon Microphone Click to enlarge the picture
Contents of the user manual for the Royer Labs R-122 MKII Active Ribbon
- Product category: Ribbon Microphones Royer Labs
- Brand: Royer Labs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Royer Labs Ribbon Microphones
 |
User manual for the Royer Labs R-122 MKII Active Ribbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Royer Labs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Royer Labs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Royer Labs product will considerably shorten its lifespan!
|

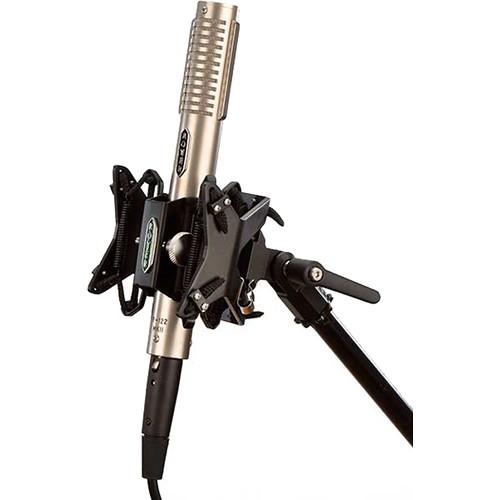

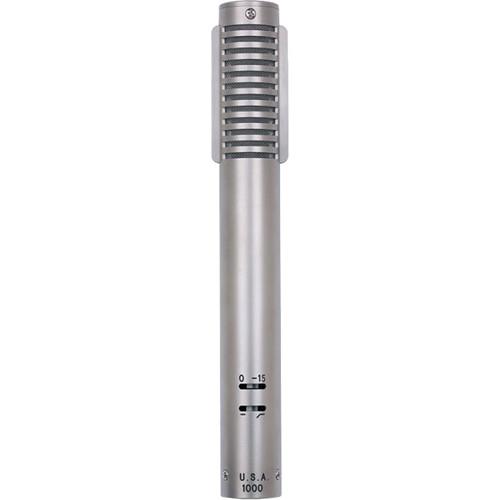

Product description The nickel R-122 MKII Active Ribbon Microphone from Royer is an updated version of the original R-122, figure-8 polar pattern microphone. Like the original, this ribbon mic is powered via 48V phantom power, but this MKII version delivers even better flexibility for ribbons via the addition of a switchable -15 dB pad to reduce the potential for headroom-related distortion, and a switchable bass-cut filter, which reduces the mic's bass buildup or rumble due to proximity effect. The R-122 MKII microphone can be used to capture audio for a variety of instruments such as acoustic guitar, drum overheads, percussion instruments, brass and woodwinds, horn sections, acoustic piano, choirs and orchestras, strings, and more.The R-122 MKII's switchable -15 dB pad is positioned before the microphone's electronics and, when engaged, reduces the potential for headroom-related distortion on the loudest sound sources. Wide open electric guitars are no problem. With the pad engaged, the output is 2 dB lower than Royer's flagship R-121 model. Furthermore, the bass-cut filter, when switched in, starts filtering 6 dB per octave.at 100 Hz. This effectively reduces the mic's bass buildup due to proximity effect. This smooth filter works on vocals, many acoustic instruments, and close-miked electric guitars when less bottom end is desired.In addition, other features include better gain to record softer sound sources, impedance matching that allows the microphone to deliver its full sonic potential, and ribbon technology allowing the ribbon more room to move within the magnetic field for improved dynamics. So, go ahead and plug the R-122 MKll Active Ribbon Microphone in—you'll get full Royer performance and enough level to drive any recording medium (requires 48V phantom power). A microphone sock and a protective wood case are also included. - Phantom-powered circuitry provides high output and impedance
- -15 dB pad before the mic's electronics gives more headroom when activated, allowing you to record louder sources
- Bass-cut filter reduces proximity effect and bass below 100 Hz when activated
- No distortion up to maximum SPL rating
- Extremely low residual noise
- Ribbon element is not affected by heat or humidity
- Absence of high-frequency phase distortion
- Equal sensitivity from front or back of element
- Consistent frequency response regardless of distance
- Rear side of mic records slightly brighter when three feet or closer to sound source
UPC: 899060002556 In the Box Royer Labs R-122 MKII Active Ribbon Microphone (Nickel) Protective Wood Case Mic Sock Limited 1-Year Warranty for Ribbon Element Limited Lifetime Warranty for Microphone Table of Contents
|
Upload User Manual
Have you got an user manual for the Royer Labs R-122 MKII Active Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoyer Labs R-122 MKLLL Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 30 Hz to 15 kHz | | Signal to Noise Ratio | 18 dB A-Weighted | | Maximum SPL | 135 dB SPL Peak | | Pad | -15 dB | | Impedance | 200 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | -36 dB | | Low-Cut Filter | 6 dB/Octave @ 100 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4 mA | | Operating Voltage | 48 V | | Length | 8.11" / 206 mm | | Diameter | 0.98" / 25 mm | | Weight | 10.9 oz / 309 g |
