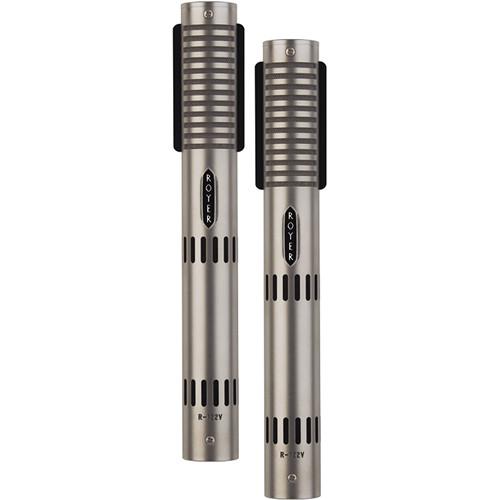

User Manual for Royer Labs R-122V Vacuum Tube Ribbon Microphone Click to enlarge the picture
Contents of the user manual for the Royer Labs R-122V Vacuum Tube Ribbon
- Product category: Tube Microphones Royer Labs
- Brand: Royer Labs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Royer Labs Tube Microphones
|
User manual for the Royer Labs R-122V Vacuum Tube Ribbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Royer Labs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Royer Labs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Royer Labs product will considerably shorten its lifespan!
|
Product description This matched pair of R-122V Vacuum Tube Ribbon Microphones from Royer Labs is the result of additional developments made to the microphone once used as the benchmark to test their R-122 series microphones. This world-class design delivers the benefits of a top-quality ribbon microphone with the output power and warm characteristics associated with the industry's best vacuum tube condensers.
The 2.5-micron aluminum ribbon reproduces audio with startling transparency and detail. Like most ribbon microphones, the R-122V features a figure-8 polar pattern for flexible microphone positioning. The output-stage electronics are built around a JAN mil-spec 5840W vacuum tube for incredible warmth, rich detail and high output gain. A dedicated power supply is included for powering the tube. - JAN mil-spec 5840W vacuum tube electronics wired in a triode configuration provide high-output capability, optimal impedance to the ribbon element, and low-output impedance
- The 2.5-micron aluminum ribbon has a figure-8 pickup pattern to provide equal sensitivity from both sides of the mic and is designed to provide a consistent frequency response, regardless of distance
- Extremely low self-noise keeps the mic from coloring your recordings
- High SPL capabilities are ideal for recording electric guitar and percussion instruments
- Absence of high-frequency peaks, "ringing", and phase shifts
- The ribbon element is unaffected by impedance/load, heat, or humidity
- Extremely low magnetic leakage
- Operates from a dedicated power supply
In the Box Royer Labs R-122V Vacuum Tube Ribbon Microphone (Matched Pair, Nickel) 2 x Power Supplies 2 x Connecting Cables 2 x Shockmounts Carrying Case 2 x Microphone Socks Limited Lifetime Warranty Limited 10-Year Warranty on Tube Limited 1-Year Warranty on Ribbon Table of Contents
|
Upload User Manual
Have you got an user manual for the Royer Labs R-122V Vacuum Tube Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoyer Labs R-122 Specs | | | Operating Principle | Pressure Gradient | | Tube | Yes | | Polar Pattern | Figure-8 | | Frequency Range | 30 Hz to 15 kHz | | Equivalent Noise Level | 18 dB | | Maximum SPL | 135 dB SPL | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | -36 dB | | | | Operating Current Consumption | 150 mA | | Length | 8.11" / 206 mm | | Diameter | 0.98" / 25 mm | | Weight | 10.58 oz / 300 g | | | | Package Weight | 44.0 lb | | Box Dimensions (LxWxH) | 24.0 x 20.0 x 19.0" |
