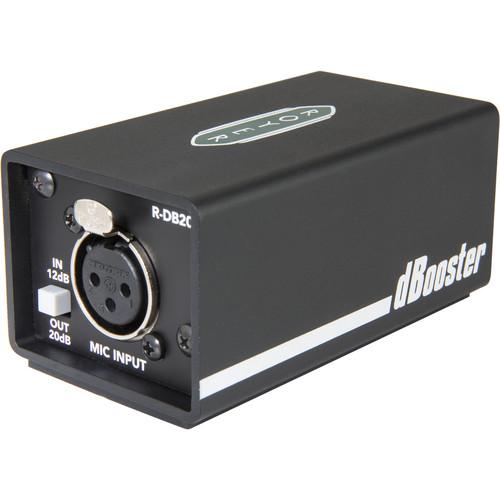

Product description The Royer R-DB20 dBooster boosts the signal of ribbon and dynamic microphones by making use of 48V phantom power, doing so while protecting ribbon mics from phantom power and providing electrical isolation. As such, the box raises the overall level of these mics without adding color, noise, or distortion.
Two levels of boost are on hand: 12 and 20 dB, selectable on the front panel. You can plug a high- or low-impedance source into the dBooster and still get a significant amount of headroom and gain out of the device. This is due, in no small part, to the use of Class-A input circuitry.
The low-impedance output of the R-DB20 dBooster offers a signal optimized to drive a digital interface or a standard microphone preamp, allowing you to use long cable runs with minimal signal loss to boot. - Key Features at a Glance
-
- 12 dB and 20 dB gain stages
- High and low impedance
- Durable case construction
- Low-noise performance
- Low distortion
- Wide frequency bandwidth
- Safe for use on ribbon microphones
- Increases headroom at the preamp
- Provides electrical isolation
- Protects ribbon mics from phantom power
- Minimizes mic loading
- Capable of driving mic splitters and vintage preamps without noticeable distortion or loss of gain
UPC: 899060002709 In the Box Royer Labs R-DB20 dBooster In-Line Signal Booster for Dynamic & Ribbon Microphones Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Royer Labs R-DB20 dBooster In-Line Signal Booster for Dynamic & Ribbon Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoyer Labs R-DB20 Specs | I/O Connections | Balanced XLR | | Gain | 12 or 20 dB, Switchable | | THD+N | At 12 dB Gain: 0.001%, -6 dBu Input Signal, 3.66 V p-p Output Signal
At 20 dB Gain: 0.0015%, -25 dBu Input Signal, 1.3 V p-p Output Signal | | Inter-Modulation Distortion | At 12 dB Gain: <.005% at 2.6 V Output
At 20 dB Gain: <.002% at 800 mV Output | | Self Noise | At 12 dB Gain: <15 dBA (referred to -48 dB, 1 V/pa)
At 20 dB Gain: <11 dBA (referred to -48 dB, 1 V/pa) | | Headroom | At 12 dB Gain: 120 dB (Referred to -48 dB, 1 V/pa) and 4 mV/pa)
At 20 dB Gain: 127 dB (Referred to -48 dB, 1 V/pa) and 4 mV/pa) | | Frequency Response | 20 Hz to 20 kHz (±0.25 dB) | | Input Impedance | 3.6 kOhms | | Output Impedance | 300 Ohms at 20 dB Setting | | Current Draw | Approximately 5 mA at 0 signal and 7.5 mA at Full Output | | Power | 48 V Phantom Power | | Dimensions (L x W x H) | 3.6 x 2.0 x 1.6" / 92 x 51 x 41.3 mm | | Weight | 6 oz / 170 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.85 x 3.35 x 2.35" |
