User Manual for RPS Lighting Studio Wireless TTL Receiver for Canon Click to enlarge the picture
Contents of the user manual for the RPS Lighting Studio Wireless TTL Receiver
- Product category: Radio & Infrared Transmitters RPS Lighting
- Brand: RPS Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RPS Lighting Radio & Infrared Transmitters
|
User manual for the RPS Lighting Studio Wireless TTL Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RPS Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RPS Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RPS Lighting product will considerably shorten its lifespan!
|

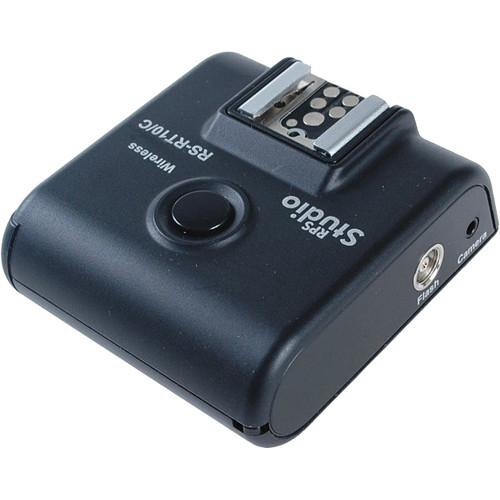

Product description The RPS Studio Wireless TTL Receiver for Canon from Dot Line is an additional receiver for the RPS Studio Wireless TTL Remote Kit. This model is fully compatible with Canon E-TTL II and offers wireless control of speedlights and remote triggering of monolights. The system utilizes a frequency of 2.4 GHz and has a far reaching range of up to 300'. Additionally, it has the ability to work in three different groups and two channels.
The receiver features a 2.5mm port for connection to a camera and has a PC sync port for a wider variety of flash connection options. There are even options available for multi-flash and manual modes as well as high-speed, 1st curtain and 2nd curtain synchronization. Also, each receiver runs on 2 AA batteries. - Compatible Cameras
- Canon EOS 5D Mk II, 5D Mk III, 1Ds Mk III, 1D Mk IV/1D, 7D, 6D, 60D, 50D, 40D, T5i, T4i, T3i, T2i, T1i, XSi, XS
- Support for remote control in P, Av, Tv, and M modes
- Flash exposure bracketing and compensation modes are supported in 1/3-stop increments of ±3 stops
- High-speed sync up to 1/8000 second
- Manual flash mode lets you set output from 1/128 to 1/1 power in 1/3-stop increments
UPC: 034447021236 In the Box RPS Lighting Studio Wireless TTL Receiver for Canon Limited 1-Year Warranty User Manual PDF 4.8mbvrrccqxudt Table of Contents
|
Upload User Manual
Have you got an user manual for the RPS Lighting Studio Wireless TTL Receiver for Canon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRPS Lighting RS-RT10/CR Specs | | | Channels | 2 | | Groups | 3 (A, B, C) | | Wireless Range | 300' / 91 m | | Radio Frequency | 2.4 GHz | | | | Control Modes | Manual, Multi, TTL | | Sync Speed | 1/8000 Sec | | | | Dimensions | 2.8 x 2.4 x 1.8" / 7 x 6 x 4.5 cm (Receiver) | | Weight | 2.5 oz / 70.9 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 7.7 x 4.4 x 1.7" |
