User Manual for RSQ Audio RM-8000 Rechargeable Dual Channel Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the RSQ Audio RM-8000 Rechargeable Dual Channel
- Product category: Karaoke RSQ Audio
- Brand: RSQ Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RSQ Audio Karaoke
|
User manual for the RSQ Audio RM-8000 Rechargeable Dual Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RSQ Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RSQ Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RSQ Audio product will considerably shorten its lifespan!
|

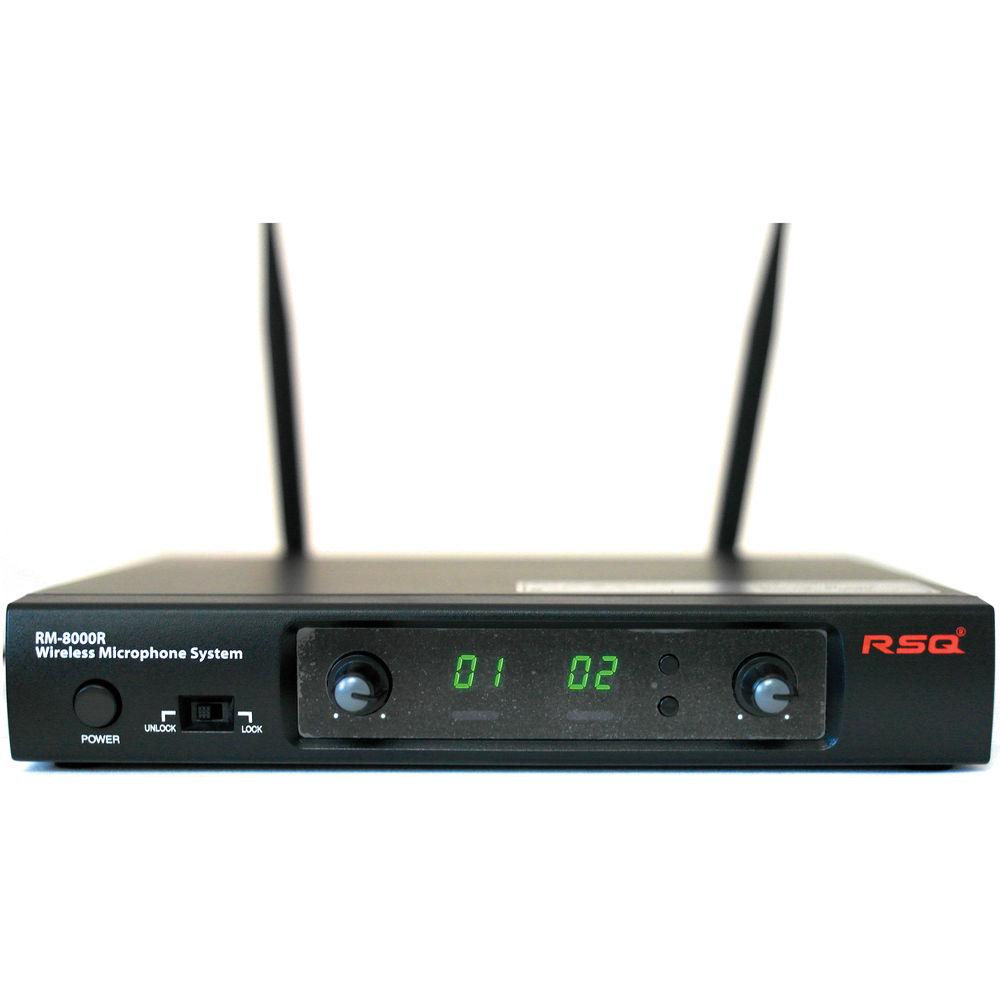

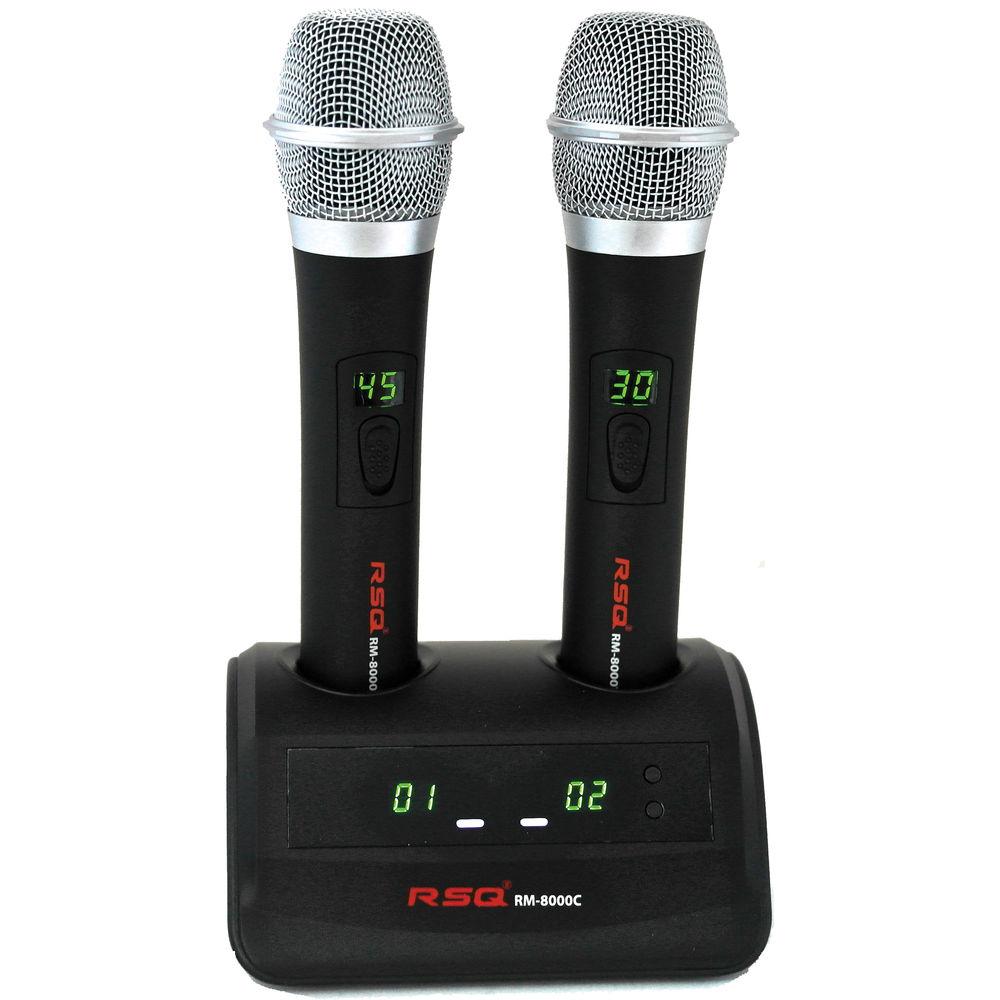

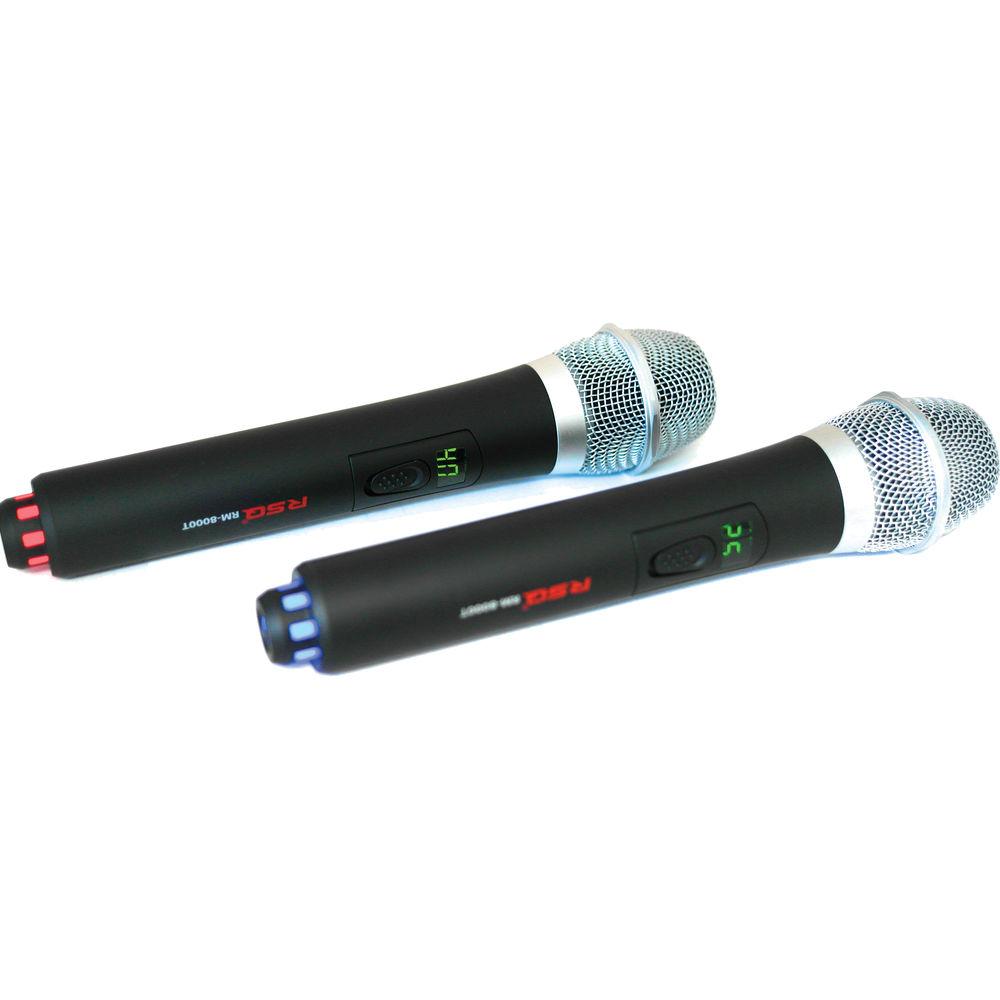

Product description The RM-8000 from RSQ is a rechargeable, dual-channel wireless microphone system featuring two wireless microphones, a two-channel receiver, and dual microphone charger. The system operates with-in the UHF frequency band, ensuring interference-free clear sound. Each microphones channel has its own independent volume control, but both signals may be mixed together to a single "mixed output". -
- Field-proven durable design
- RSQ patented multi-tone decoding function for anti-interference
- RSQ patented pop noise reduction when power on or off
- Displays channel-in-use and battery level
- Link status indicator
- Automatic channel sync between receiver and handheld transmitter
- Semi-automatic frequency lock-out function
UPC: 187586000812 In the Box RSQ Audio RM-8000 Rechargeable Dual Channel Wireless Microphone System (UHF 600 to 960 MHz) 2 x Wireless Microphones Dual Microphone Charger Receiver 2 x Power Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RSQ Audio RM-8000 Rechargeable Dual Channel Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRSQ Audio RM8000 Specs | Modulation | Wideband FM | Frequency Range | 600 to 960 MHz (region dependent) | Range | 500' / 150 m, typical 1640' / 500 m, line-of-sight | Noise Reduction | Compander | AF Response | 60 Hz to 18 kHz (microphone element dependent) | S/N Ratio | > 90 dB | THD | <0.5% | Operating Temperature | 14 to 122°F / -10 to 50°C | | Audio Output Level | 1/4" / 6.3 mm Connector: -8 to +0 dBu (1 kHz, @ ±50 kHz) | Output Impedance | 1/4" / 6.3 mm Connector: 600 ohms | RF Sensitivity | -102 dBm for 40 dB SINAD | Adjacent Channel Rejection | >60 dB | Intermodulation Rejection | >70 dB | Image Rejection | 110 dB typical | Spurious Rejection | 90 dB typical | Antenna | 1/2 dipole | Power Requirement | DC Power Adapter: 12 VDC / 1 A | Power Consumption | <10 W | | Deviation | ±50 kHz maximum | Output Impedance | 50 ohms | Antenna | Intenna | RF Power Output | 10 mW or 50 mW (region dependent) | Power Requirements | Rechargeable Lithium Polymer battery, 3.7 V / 850 mA | Battery Life (approx.) | 12 hours | | Power Requirements | DC Power Adapter: 12 VDC / 1 A | Current Consumption | <700 mA | Channel Control | Channel Configuration: Digital buttons | Dimensions (H x W x D) | Receiver: 1.6 x 9.2 x 6.3" / 4.0 x 23.4 x 16.0 cm Transmitter: 9.7 x 2.2 x 1.3" / 24.6 x 5.5 x 3.4 cm Charger: 3.1 x 5.9 x 3.9" / 7.8 x 15.1 x 9.9 cm | Weight | Receiver: 28.7 oz / 813.0 g Transmitter: 8.3 oz / 235.0 g Charger: 8.5 oz / 240.0 g | | Package Weight | 5.45 lb | Box Dimensions (LxWxH) | 15.7 x 11.1 x 4.2" |
