User Manual for RSQ Audio UHF-6200N 200-Channels Digital Wireless Microphone Click to enlarge the picture
Contents of the user manual for the RSQ Audio UHF-6200N 200-Channels Digital Wireless
- Product category: Wireless Systems RSQ Audio
- Brand: RSQ Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RSQ Audio Wireless Systems
|
User manual for the RSQ Audio UHF-6200N 200-Channels Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RSQ Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RSQ Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RSQ Audio product will considerably shorten its lifespan!
|
Product description The UHF-6200N 200-Channels Digital Wireless Microphone from RSQ Audio is a dual microphone wireless system featuring over 200 frequency channels that make it adaptable for any application. The system features automatic frequency scanning which, at the touch of a button, automatically searches and sets the best available frequency. - 200-channel PLL wireless system
- Commercial grade UHF wireless system
- Multiple systems (up to 100) can be used together allowing up to 200 channels simultaneously
- Easy-to-Use IR channel switching function

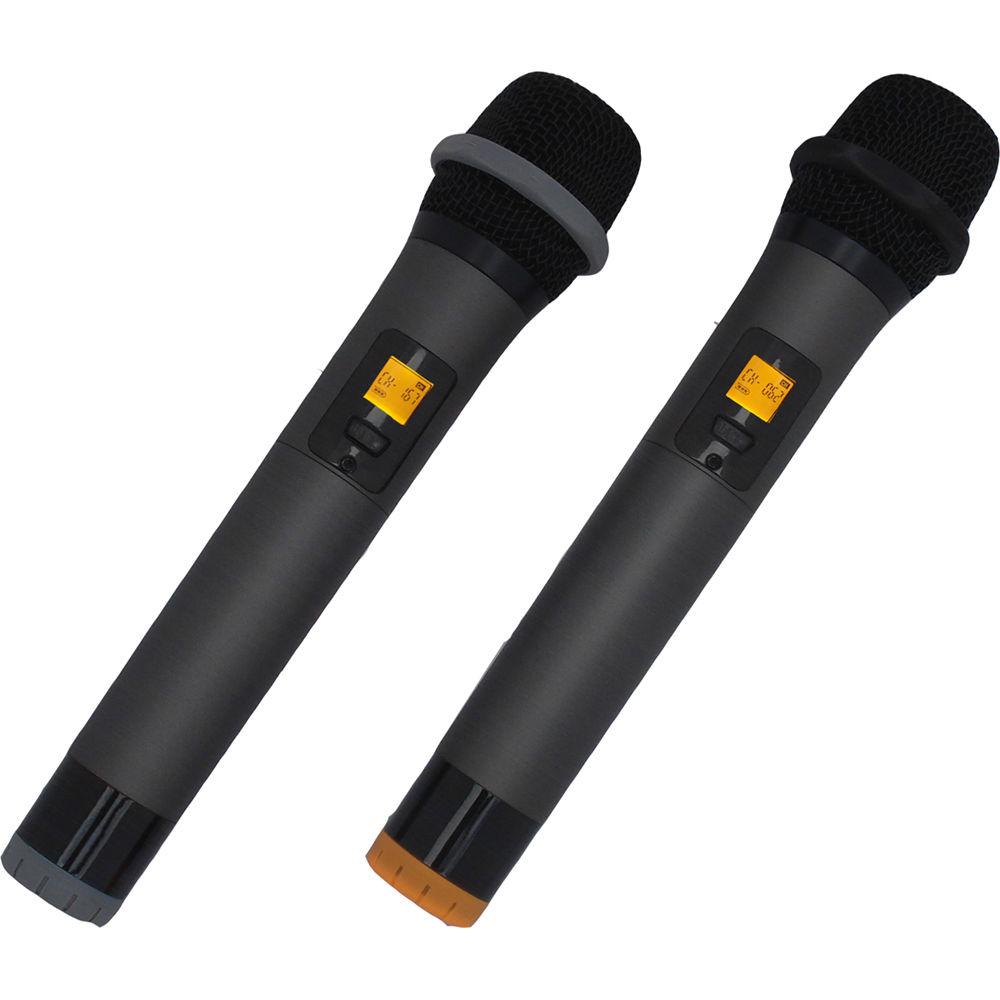

- Two highly sensitive and durable microphones with LCD indicators

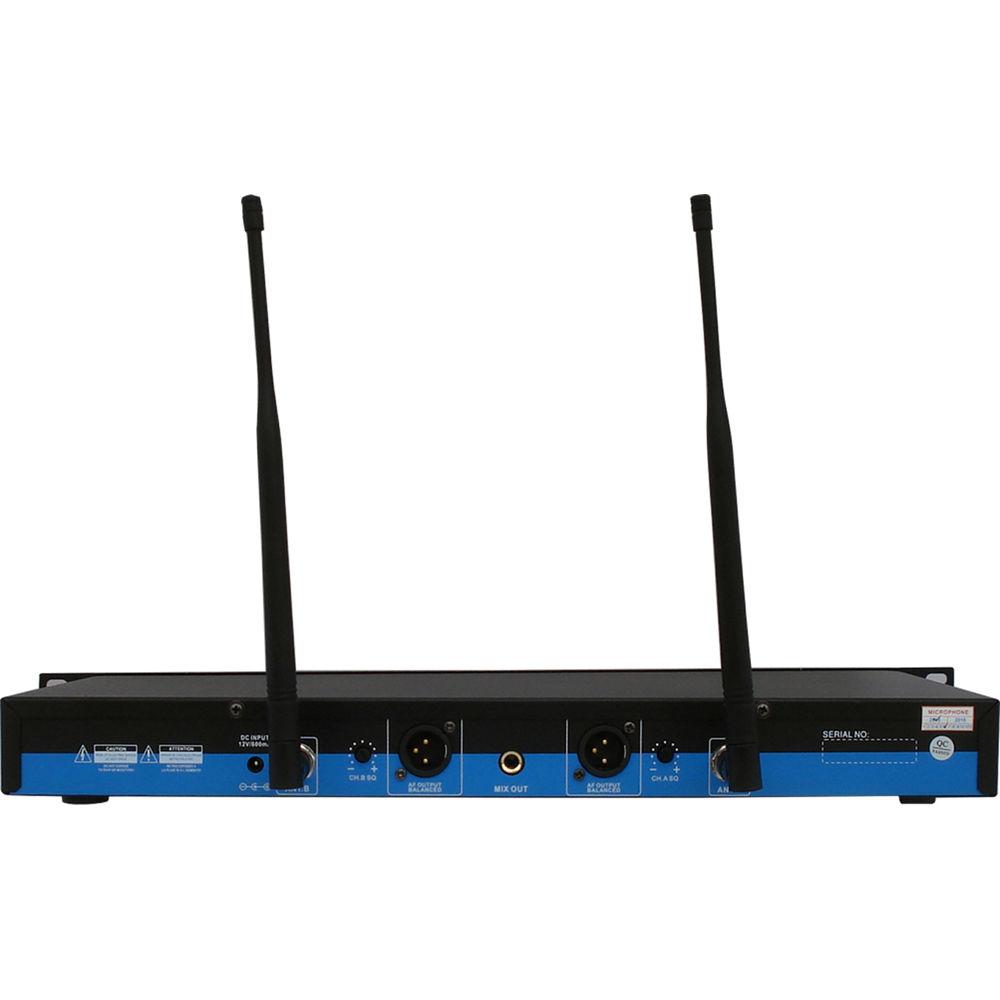

UPC: 187586000911 In the Box RSQ Audio UHF-6200N 200-Channels Digital Wireless Microphone UHF-6200N Dual Channel Receiver 2 x UHF-6200N Handheld Transmitter Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the RSQ Audio UHF-6200N 200-Channels Digital Wireless Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRSQ Audio UHF6200N Specs | Oscillation Mode | PLL (Digital Frequency Synthesizer) | Modulation | Wideband FM | Frequency Range | 614 to 698 MHz | Working Range | 65' (20 m) typically; 500' (150 m) line of sight. (NOTE: Operating range depends on many variables, including RF signal absorption, reflection and interference) | S/N Ratio | S/N & F/N Ratio: ≥ 80 dB | Sensitivity | 5 dBuV | Audio Output | Balanced (XLR Port): 250 mV / 600 Ohms (2 each) Mixed (1/4" Port): 400 mV / 3 KOhms (1 each) | Working Voltage | 12 to 16 VDC | Working Current | ≤ 350 mA | | Transmitter Power | 30 mW (Depend on applicable country regulations) | Oscillation Mode | PLL (Digital Frequency Synthesizer) | Stability | < 30 ppm | Dynamic Range | ≥ 100 dB | Battery | AA x 2 | Frequency Response | 50 to 15,000 Hz (microphone element dependent) | Maximum Sound Pressure | 130 dB SPL (sound input) | | Package Weight | 8.3 lb | Box Dimensions (LxWxH) | 21.6 x 17.3 x 3.4" |
