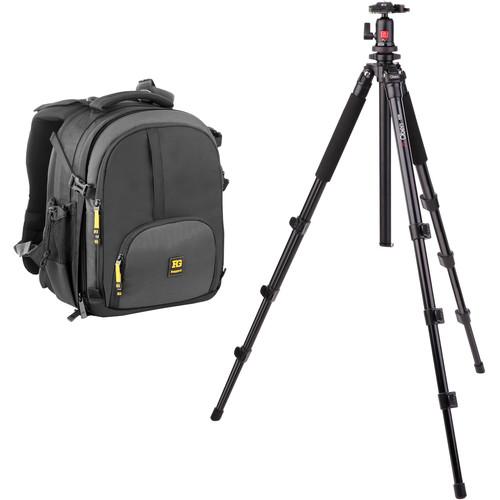

Ruggard Thunderhead 35 DSLR Laptop Backpack

User Manual for Ruggard Thunderhead 35 DSLR Laptop Backpack and Tripod Kit

• Product category: Backpacks Ruggard
• Brand: Ruggard
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Ruggard Backpacks

Product description

• Ruggard Thunderhead 35 DSLR & Laptop Backpack (Black)
  • Ruggard Thunderhead Photo Backpacks
  Ideal for traveling and hiking, this black, water-repellent Thunderhead 35 DSLR & Laptop Backpack from Ruggard holds a DSLR with an attached zoom lens such as a 70-200mm, 3 additional lenses, and a flash between padded touch-fastened dividers inside a spacious main compartment. This bag is packed with pockets of all sizes, and one of them is a dedicated compartment which will hold most 13" laptops. Additionally, there is a side attachment for securely storing your tripod.

  The front of the backpack features small, medium, and large pockets and the main zippered compartment, which unzips all the way down providing full front access to your gear. Each side of the backpack provides a mesh slip pocket with a drawstring closure and the base has a zippered pocket, which stores a removable rain cover.

  At the back behind the laptop compartment, there is a contoured breathable mesh padded panel and shoulder harness. The harness features sternum and padded hide-away waist straps for additional support as well as a trolley sleeve for attaching the backpack to your luggage. For quickly grabbing the backpack, the top features a sturdy and comfortably padded grip handle.

  Construction

  • 600D Oxford nylon exterior with water-repellent coating and 1680D ballistic nylon front
  • 150D polyester interior
  • Exterior YKK zippers with zipper pull tabs to assist in opening
  • Quick-release strap on each side secures the main compartment
  • Two D-rings at the front of each shoulder strap for attaching accessories
  • Exterior attachment loops for securing optional accessories
  • Dual compression straps on top of shoulder straps
  • Dual protective hard rubber feet at base

  Small Zippered Pocket

  • Two interior mesh slip pockets on flap
  • Two interior fabric slip pockets at the back
  • Two pen slots
  • Key leash

  Large Zippered Pocket

  • Large mesh slip pocket with snap-button closure on flap
  • Clear business card sleeve
  • One small zip pocket
  • Two laminated mesh slip pockets
  • Two fabric slip pockets
  • Large and small slip pockets

  Main Gear Compartment

  • Three interior laminated mesh zip pockets on flap
  • Three memory card pockets with touch-fastened tabs on flap
  • Two elastic touch-fastened security straps protect camera gear
  • Nine small and two large padded touch-fastened dividers

  Exterior Pockets

  • Rear padded zip side-entry compartment holds most 13" laptops
  • Front vertical zip pocket holds smartphone or passport
  • Mesh slip pocket with drawstring closure on each exterior side of backpack
  • Zippered base pocket stores removable rain cover

  Side Tripod Attachment

  • Side mesh pocket functions as tripod cup
  • Two quick-release belts help secure top of tripod

  Carrying Comforts

  • Breathable mesh padded shoulder straps and back panel
  • Padded waist belts with accessory attachment loops tuck away into back panel
  • Rear trolley strap for attaching to luggage
  • Sternum straps with attached security whistle
  UPC: 847628564718
• Oben AC-1441 4-Section Aluminum Tripod with BA-111 Ball Head
  • Ruggard Thunderhead Photo Backpacks
  The Oben AC-1441 4-Section Aluminum Tripod with BA-111 Ball Head provides reliable support for DSLRs, point-and-shoot cameras or video cameras up to 11 lb. The tripod's three-section legs are fabricated from high tensile strength aluminum. It rises to a maximum height of 61.6" with the center column fully extended and folds down to a compact 21.3" for transport. Flip locks on the legs facilitate rapid setup and break down. Three leg angles: normal (80°), low (55°) and extra low (24°) are available via angle adjustment tabs at the joint of each leg. You can reverse the column with a twist of the butterfly knob or split it in two and use the short column for macro and low angle shooting as low as 8.3" from the ground. Any combination of leg angles can be combined to accommodate uneven terrain, stairs or obstructions. A built-in bubble level helps you square up your compositions. For extra stability, the center column employs a spring-loaded counterbalance hook. The included BA-111 ball head features a single-action knob that controls its rotation and 360 degree panning while a robust ball-locking mechanism secures it solidly. The head's four bubble levels ensure accurate panoramas. The BA-111's built-in quick release comes with a camera plate that features a standard 1/4"-20 screw and a retractable, removable video pin to provide additional stability for camcorders. Since the head is removable, locking screws underneath the collar thwart torsion when re-attaching. The tripod comes with a carry case and shoulder strap for storage and transport.
  • A spring-loaded counterweight hook is located at the bottom of the center column. The column can be separated into two parts to give you a short column for low angle and macro work
  • Leg cushions on two legs provide a firm grip in cold or wet weather
  • Two included hex keys attach to a tripod leg, so you're always ready to tighten components
  • Padded carry bag provides a snug fit for the tripod/head combination and features two heavy-duty zippers, an interior pocket with a zipper, and a shoulder strap
  • Angle adjustment locks keep legs at the chosen angles
  • Center column is grooved to prevent rotation
  • Angled rubber feet for maximum contact with the ground
  • Tripod features reversible 1/4"-20 and 3/8"-16 screw to fit almost any head
  UPC: 847628556317

• Thunderhead 35 DSLR & Laptop Backpack (Black) crwrbryqzsdaxxrs
• 2 x Quick-Release Belts
• 2 x Elastic Security Straps
• 9 x Small Dividers
• 2 x Large Dividers
• Removable Rain Cover
• Security Whistle
• Limited 5-Year Warranty

• Oben - AC-1441 4-Section Aluminum Tripod with BA-111 Ball Head

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ruggard Thunderhead 35 DSLR & Laptop Backpack (Black)

  Features	Laptop Compartment
  Carrying/Transport Options	Backpack Straps, Top Handle, Trolley Sleeve, Waist Belt
  Camera Support Strap	Tripod

  Laptop Compartment Screen Size	13.0"
  Laptop/Tablet Compartment Dimensions	10.8 x 14.2" / 27.3 x 36.2 cm

  Exterior Dimensions	12 x 8 x 15.25" / 30.5 x 20.3 x 38.7 cm
  Exterior Material	Nylon
  Type of Closure	Zipper
  Water Resistance	Rain Cover

  Interior Dimensions	11 x 5 x 14.5" / 27.9 x 12.7 x 36.8 cm
  Interior Material	Polyester
  Weight	4.1 lb / 1.9 kg

  Box Dimensions (LxWxH)	15.0 x 10.0 x 9.5"

• Oben AC-1441 4-Section Aluminum Tripod with BA-111 Ball Head

  Head Type	Ball Head
  Base Mount	1/4"-20 & 3/8"-16 Threads
  Camera Mounting Screw	1/4"-20 Male

  Load Capacity	11 lb / 5 kg
  Maximum Working Height	61.6" / 156.7 cm
  Max Height without Center Column	49.5" / 125.7 cm
  Minimum Working Height	8.3" / 21.1 cm
  Folded Length	21.3" / 54.1 cm
  Materials	Aluminum Alloy
  Weight	3.3 lb / 1.5 kg

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4
  Bubble Level	Yes

  Center Column Features	Reversible
  Center Column Shape	Faceted
  Center Column Sections	2
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	24.0 x 5.0 x 5.0"
