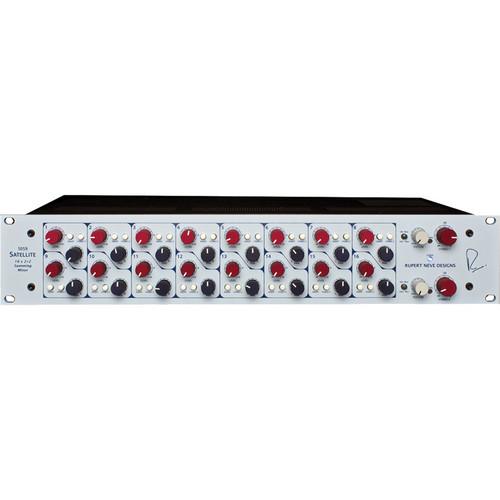

User Manual for Rupert Neve Designs 5059 Satellite 16 x 2 2 Summing Mixer Click to enlarge the picture
Contents of the user manual for the Rupert Neve Designs 5059 Satellite 16
- Product category: Analog Recording Mixers Rupert Neve Designs
- Brand: Rupert Neve Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rupert Neve Designs Analog Recording Mixers
|
User manual for the Rupert Neve Designs 5059 Satellite 16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rupert Neve Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rupert Neve Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rupert Neve Designs product will considerably shorten its lifespan!
|
Product description The Rupert Neve Designs 5059 Satellite 16 x 2+2 Summing Mixer is an analog mixer with 16 inputs over two 25-pin D-sub cables and dual stereo XLR outputs housed in a 2U rack-mountable chassis. The mixer features class-A amplifiers and a custom transformer circuit design by renowned electronics engineer Rupert Neve.
Stereo outputs 1 and 2 both feature continuously variable control of the sound's texture by engaging a button which toggles between the silk blue, silk red, and bypass circuits. By turning the master texture knob you can saturate the custom transformers to add sparkle, thickness, color, and warmth to your sound.
With this mixer, you can adjust the signal level, panning position, and insert sends to outboard analog equipment for all 16 channels. You can also use the stereo outputs to sum channels into stem mixes, add harmonics, and send the stem to outboard analog equipment for processing. For example, channels 1 through 8 could be summed and sent as a stem mix to stereo 2 output, then sent through an outboard analog compressor, and then patched in as a stereo input on channels 15 and 16. This would enable you to apply the same processing to all eight tracks as a cohesive group, such as when recording a drum kit with multiple microphones.
The stem on channels 15 and 16 could then be sent through stereo output 1 to a tape recorder or an analog to digital converter (ADC) connected to a digital audio workstation (DAW).
Utilizing the send and return 25-pin D-sub connections, multiple summing mixers can be connected together to add more channels and open up additional routing possibilities. - Channel Controls
- Each of the 16 channels on the mixer features one rotary knob for changing the channel level between -∞ and +10 dB, one rotary knob for adjusting the panning with a 3 dB pan law, one insert button to route the channel through the send and return circuit, and one stereo 2 button for sending the channel to stereo 2 output for stem summing
- Output Controls
- Stereo 1 and stereo 2 both feature a button for toggling between the silk blue, silk red, and bypass circuits, a rotary knob for adjusting the texture, and a rotary knob for adjusting the stereo output level between -infinity and 0 dB
- Silk Texture Control
- Both Stereo 1 and stereo 2 outputs each have their own silk harmonic texture circuit. Pressing the silk button once engages the red silk circuitry, which removes negative feedback from the transformers and adds harmonic sparkle to the mids and highs. It can be used to add brightness and presence to vocals and guitars. Pressing the silk button again engages the blue silk circuitry which removes negative feedback and adds harmonic warmth and thickness to the lows and low mids. It can be used to add weight and boominess to the bass and kick drum. Pressing the button a third time bypasses the silk texture circuitry
- Channel Insert Send and Return
- By engaging the insert button, the insert send and return signal is switched in for the regular input signal. This allows you to patch outboard analog equipment such as a compressor into the signal chain
- Signal Presence and Clip Indicator LED
- Green LEDS illuminate to indicate the presence of a signal and red LEDs illuminate when the stereo buss is within 3 dB of clipping
- Ground Lift Switch
- The ground lift switch separates the signal ground from the chassis ground for removing ground loop noise from the signal
In the Box Rupert Neve Designs 5059 Satellite 16 x 2+2 Summing Mixer Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rupert Neve Designs 5059 Satellite 16 x 2 2 Summing Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRupert Neve Designs 5059 Specs | Front Panel Controls | 16 x channel level rotary knob
16 x channel pan rotary knob
16 x insert send/return push button
16 x stereo 2 send push button
2 x silk blue, silk red, bypass Button
2 x stereo output texture rotary knob
2 x stereo output level rotary knob | | Back Panel I/O Ports | 1 x 25-pin D-sub line inputs 1 through 8 connection
1 x 25-pin D-sub line inputs 9 through 16 connection
1 x 25-pin D-sub insert send 1 through 8 connection
1 x 25-pin D-sub insert send 9 through 16 connection
1 x 25-pin D-sub insert return 1 through 8 connection
1 x 25-pin D-sub insert return 9 through 16 connection
2 x balanced XLR pairs stereo 1 and stereo 2 | | Frequency Response | 100 K load, ±0.1 dB from 20 to 20,000 Hz
-3 dB @ 3.5/185,000 Hz | | Noise | IEC-A-Weighted
Buss outputs: -106 dBV
Single channel assigned @ -∞: -104 dBV
Single channel assigned @ unity: -103 dBV
Un-weighted, 22 to 22,000 Hz: Single channel assigned @ +10 dB: -100dBV | | Outputs | Buss
Single channel assigned @ -∞: -101 dBV
Single channel assigned @ unity: -100 dBV
Single channel assigned @ +10dB: -97 dBV | | Signal-to-noise | +20 dBu output un-weighted, 22 to 22,000 Hz: 116 dB
+20 dBu output, IEC A weighted: 119 dB
+4 dBu output un-weighted, 22 to 22,000 Hz: 100 dB
+4 dBu output, IEC A weighted: 103 dB | | Output Level | Summing busses to XLR outputs, maximum output level, 20 to 40,000 Hz: +26 dBu
Single channel to buss, maximum output level, 20 to 40,000 Hz: +24.5 dBu | | Total Harmonic Distortion/Noise | 1 k Hz @ +20 dBu output: better than 0.003%
20 Hz @ +20 dBu output: better than 0.005% | | Total Harmonic Distortion | Silk Engaged
Blue Silk: 100 Hz @ +20 dBu output, texture control 12 o'clock: 0.2% typical
Blue Silk: 100 Hz @ +20 dBu output, texture control fully CW: 0.65% typical
Red Silk: 100 Hz @ +20 dBu output, texture control 12 o'clock: 0.1% typical
Red Silk: 100 Hz @ +20 dBu output, texture control fully CW: 0.35% typical | | Slew Rate | 4 V/μs | | Crosstalk | Buss 1 to Buss 2
1 kHz: Better than -90 dB
10 kHz: Better than -70 dB | | | | Power / Consumption | AC mains, 100 to 240 VAC 50/60 Hz
45 W | | Fuse | 85 W | | Rack Size | 2U | | Dimensions (H x W x D) | 3.5 x 19 x 8" (8.9 x 48.3 x 20 cm) | | Weight | 23 lb (10.4 kg) | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 21.7 x 14.2 x 8.9" |
