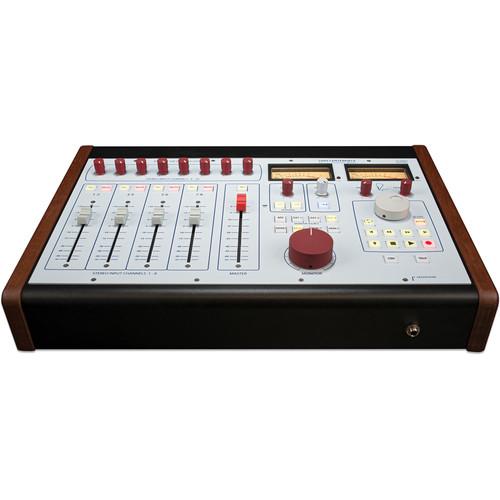

Product description The 5060 Centerpiece 24 x 2 Desktop Mixer from Rupert Neve Designs is a Class-A analog console with custom transformers, flexible monitoring, DAW transport controls, and a 24 x 2 mix-buss. The 5060 Centerpiece features a modular, hybrid analogue/digital mix system which allows you to outfit your studio with exactly what you need. It integrates stem outputs from the DAW with the rest of your control room, sums the final mix, and provides 2-track outputs, source selection, and speaker feed outputs from the monitor section. - ± 24V Class-A topologies provide a detailed and spacious mix buss
- Blue and red silk modes and texture control to fine tune harmonics and tonality
- Eight microphone input channels with professional grade 100mm faders
- 16 Active inputs with 8 stereo rotary faders
- VU Meters with peak indicators display RMS signal of selected monitor source
- Talkback dim control for speakers
- Shuttle/Jog wheel and transport controls from DAW through MIDI or USB interconnection
In the Box Rupert Neve Designs 5060 Centerpiece 24 x 2 Desktop Mixer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rupert Neve Designs 5060 Centerpiece 24 x 2 Desktop Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRupert Neve Designs 5060 Specs | Stereo Output | Channels 1-8 Max Input Level:
Fader at 0: 25.4 dBu @ 1 kHz
Fader at +10: 15.2 dBu @ 1 kHz
Channels 9-24 Max Input Level:
Trim at 0: 25.4 dBu @ 1 kHz | | Maximum Output Level | 25.4 dBu (any combination of inputs) | | THD + N | Channels 1-8, Fader at Unity, THD+N BW <10 hz - 80 khz
+20 dBu, 20 Hz: 0.023%
+20 dBu, 2 kHz: 0.0022%
+20 dBu, 20 kHz: 0.016%
Channels 9-24, trim at unity, THD+N BW <10 hz - 80 khz
+20 dBu, 20 Hz: 0.023%
+20 dBu, 2 kHz: 0.0032%
+20 dBu, 20 kHz: 0.017% | | Noise | BW 22 Hz - 22 kHz
Channels 1-24: Better than -90 dBV
Channels 9-24: Better than -100 dBV | | Crosstalk | +10 dBu, 10 kHz, L/R: -49 dB
Channel to Channel: CMRR at 1K input to channel 1
0 dBu Fader at Unity: -70 dBu | | Frequency Response | 10 Hz to 120 kHz: +/- 0.25 dB
185 kHz: -3 dB | | IMD | +4 dBu, CCIF/DFD: 0.0008% | | Silk Control | Noise:
+20 dBu in, 20 Hz: Better than 5%
+20 dBu in, 200 Hz: Better than 0.2%
Frequency Response:
0 dBu in, 20 kHz: 2.3 dBu
Distortion:
+20 dBu in, 20 Hz: Better than 5%
+20 dBu in, 200 Hz: Better than 0.15%
Frequency Response:
0 dBu in, 30 Hz: -1 dBu Texture control at maximum | | Monitor Outputs | Max Output Level @ 1 kHz: +25 dBu
THD+N:
+20 dBu, 20 Hz: 0.023%
+20 dBu, 2 kHz: 0.0032%
+20 dBu, 20 kHz: 0.017%
Noise:
1-24: Better than -90 dBV
9-24: Better than -100 dBV | | Headphones | Maximum Output Level: Better than +20 dBu, unloaded
THD+N:
2 kHz into 68 ohms, 16 dBu Output: Better than 0.02%
Noise (22 Hz - 22 kHz): Better than -85 dBV
Minimum Load: 16 ohms; recommended (8 absolute min) | | Connectors | 1 x 25-pin D-Sub, main balanced input 1-8
2 x 25-pin D-Sub, auxiliary balanced input 9-24
2 x 25-pin D-Sub, send/return 1-8
6 x 3-pin XLR monitor, output
1 x 1/4" TRS phone jack, talkback output
1 x 1/4" TS phone jack, talkback remote
4 x 1/4" TRS phone jack, insert/return L-R
2 x 3-pin XLR stereo, output
2 x DIN MIDI, input/output
1 x USB
1 x IEC power | | LED | Trigger Threshold: +22 dBu | | Dimensions | 18.5 x 12.5" x 5.8" (47.0 x 31.8 x 14.7 cm) | | Weight | 26.0 lb (11.8 kg) |
