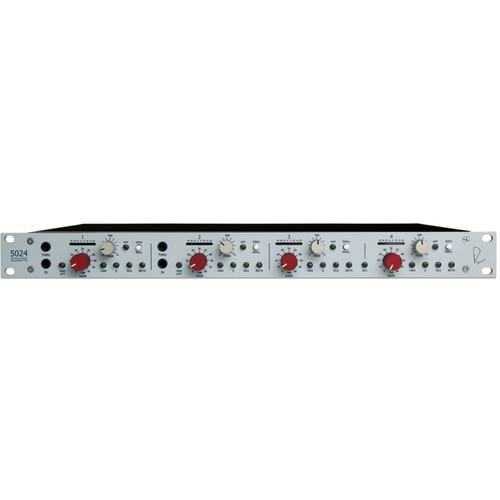

Product description The Portico 5024 Quad Mic Preamp from Rupert Neve Designs is a four-channel microphone preamplifier that offers a versatile way to connect microphones, instruments, and line-level sources. Channels One and Two feature 1/4" Hi-Z instrument inputs, and a 1/4" THRU output to pass the connected signal to an external piece of gear. A Mid/Side decoding button enables you to control the Mid level on channel Three, and Side level on channel Four. Every channel features a Silk button, which engages circuitry that adds vintage-style warmth to the signal. There are buttons on every channel to activate phantom power, phase reverse, mute, and a high-pass filter that gives you the option to cut at 30 or 90 Hz. All of the XLR inputs are transformer-balanced, and its balanced XLR outputs are transformer-coupled. - Every channel features custom transformers and class-A circuitry
- 0 to 72 dB Gain knobs and -6 to +6 dB Trim knobs on every channel
- When the Gain knobs are set at 0 dB and the phantom is turned off, the 5024 can handle signals of +25 dBu without the need for pads, and act as line-level inputs with an impedance of 10k ohms
- Eight-segment LED meters on every channel
- Ground Lift buttons on channels One and Two
UPC: 752423657049 In the Box Rupert Neve Designs Portico 5024 Quad Mic Preamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rupert Neve Designs Portico 5024 Quad Mic Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRupert Neve Designs 5024 Specs | Number of Channels | Four | | Inputs | 4x transformer balanced XLR mic-level inputs
2x 1/4" transformer-isolated Hi-Z DI inputs | | Outputs | 4x transformer-coupled, balanced XLR line-level outputs
2x 1/4" THRU outputs (on front panel) | | Phantom Power | 48 Volts DC +/- 1% | | Gain Range | Unity to +66 dB in 6 dB steps, Trim continuously adjustable from -6 dB to +6 dB
Line Input: Trim continuously adjustable from -6 dB to +6 dB | | Maximum Output Level | 20 Hz to 40 kHz is +26 dBu | | Frequency Response | Main Output, no load: -3 dB @ 2 Hz -3 dB @ 160 kHz | | Noise | Measured at Main Output, unweighted, 22 Hz to 22 kHz
Terminated 150 Ohms
With gain at unity better than -100 dBu
With gain at 66 dB better than -62 dBu
Equivalent Input Noise better than -128 dBu
Noise factor 1.5 dB | | THD & Noise | @ 1 kHz, +20 dBu output: Better than 0.002%
Silk Engaged: Better than 0.2%
Second Harmonic @ 20 Hz, +20 dBu out Better than 0.004% @ 20 Hz
+20 dBu out Better than 0.020%
IM Distortion: Better than 0.002%
Slew rate Better than 4 V/uS
High Pass Filter: Frequency: Selectable either 30 Hz or 90 Hz
Slope: 12 dB/Octave Bessel | | Crosstalk | Measured channel to channel: Better than -90 dB @ 15 kHz | | High-Pass Filter | Frequency: 30 Hz or 90 Hz
Slope: 12 dB/Octave Bessel | | Power Requirements | 3-Pin EIC Input
100 to 240 VAC
50/60 Hz
0.5A | | Rackmount | Yes, 1U | | Dimensions (WxDxH) | 19 x 9 x 1.75 (48.26 x 22.86 x 4.45 cm) | | Weight | 18 lb (8.2 kg) | | | | Package Weight | 13.45 lb | | Box Dimensions (LxWxH) | 22.7 x 14.6 x 6.9" |
