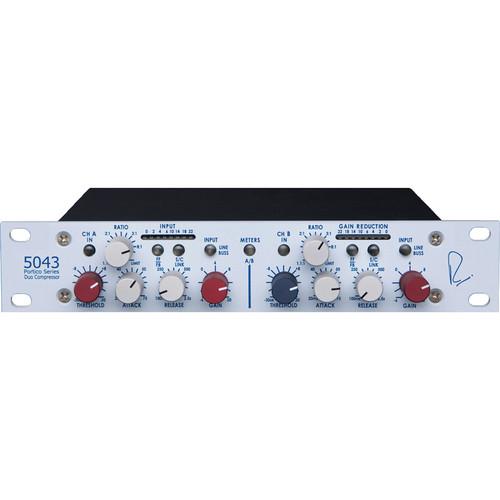

User Manual for Rupert Neve Designs Portico 5043 Compressor Limiter Duo Click to enlarge the picture
Contents of the user manual for the Rupert Neve Designs Portico 5043 Compressor
- Product category: Dynamics Processors Rupert Neve Designs
- Brand: Rupert Neve Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rupert Neve Designs Dynamics Processors
|
User manual for the Rupert Neve Designs Portico 5043 Compressor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rupert Neve Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rupert Neve Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rupert Neve Designs product will considerably shorten its lifespan!
|
Product description The Rupert Neve Designs Portico 5043 Compressor Limiter Duo (Horizontal Mount) is an analog signal processing device designed for both recording and mixing applications. It can be rackmounted horizontally in an optional Rupert Neve Designs 5221-RM rack-mounting frame. For processing, the device consists of two independent compressor-limiters designated "A" and "B". Each can be used on its own, connected together for stereo operation, or connected sequentially to enable composite compression.
The compressor is used to control the dynamics of an incoming signal. When the amplitude of the incoming signal exceeds the compressor's user-specified threshold, the compressor will reduce the incoming signal according to a user-specified ratio. You can set the threshold between -36 dB to +22 dB and the ratio between 1.1:1 and 40:1. For finer-tuned controls, you can set the compressor to engage the incoming signal at a speed of 20 to 75 mS with the attack knob. You can also set the compressor to disengage a signal between a speed of 100 to 2,500 mS via the release knob. By adjusting the threshold, ratio, attack time, and release time you can compress and enhance the dynamic range of the signal so that the quiet sounds and loud sounds are closer to one another in volume. After compressing a signal, you can also use the Portico's gain knob to attenuate or make the signal louder and punchier overall between a range of -6 dB to 20 dB.
As an added feature, the compressor can also function as a limiter when set to a very high ratio, such as 40:1. If the incoming signal exceeded the threshold by 40 dBU, the outgoing signal would exceed the threshold by only 1 dBU. Using the compressor as a limiter prevents the signal from clipping and protects the rest of the equipment in your signal chain. - Buss or Line Input
- The "INPUT" buttons on the front of the device switches the incoming signal between the Buss input and line-level input. The Buss input is useful when routing other Portico modules into the unit for mixing. The line-level input features a transformer-balanced 10K impedance bridging input so that the device may be inserted into any part of your signal chain at line level
- Feed-Forward and Feed-Back Compression
- On the front of the device is a push button that switches between feed-forward compression and feed-back compression. Feed-forward compression utilizes the input of the device to control compression. Feed-back compression utilizes the output of the device to control compression. Both forms of compression are useful depending upon the material being compressed
- Link Multiple Units Together via TRS
- You can daisy chain multiple compressor-limiter units together via the rear-panel link jack. When linked, the control voltage of any engaged compressor-limiter will be present in the back-panel link jack. When both channels of a unit are linked and engaged, their internal control voltage is internally linked and is present on the back-panel link jack
- Stereo Operation
- When the LINK push buttons on both channels are selected, both A and B sides of the device will be linked together, share the same settings, and function as a stereo compressor
- Composite Operation
- By connecting the output of one side of the compressor to the input of the other side, you can build complex composite compressors. For example, side A could be used as a low-ratio compressor to give the signal more presence, and side B could be used as a high-ratio limiter to prevent the signal from clipping
- Side-Chaining and Ducking
- By engaging the LINK push button, the signal from channel A can be used to control the amplitude of channel B, or vice versa. This is useful when you want to use one channel to side-chain compress or duck the other channel, such as when you want to reduce the music playback level on one channel when making a speech announcement on the other channel
- Meters
- The device features two peak LED meters in green, yellow, and red to indicate output level and gain reduction. A central "METER SELECT" button switches the meters between channel A and channel B. The output level meter ranges from -10 to 10 dBU for the green LEDS, 10 to 20 dBU for the yellow LEDS, and 20 dBU and above for the red clipping LEDS. The gain reduction meter ranges from 1 to 22 dBu
UPC: 752423657087 In the Box Rupert Neve Designs Portico 5043 Compressor Limiter Duo (Horizontal Mount) 12 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rupert Neve Designs Portico 5043 Compressor Limiter Duo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRupert Neve Designs 5043 Specs | Gain Range | Continuously variable from -6 to +20 dB | | Threshold Range | Continuously variable from -36 dB to +22 dB | | Ratio | Continuously variable from 1.1:1 to "Limit" (40:1) | | Attack | Continuously variable from 20 to 75 mS | | Release | Continuously variable from 100 to 2500 mS | | Compressor | Feed-Forward or Feed-Back VCA control | | Inputs | Selectable
2 x XLR
2 x 1/4" Buss input jack for Portico series Buss outputs | | Maximum Output Level | Balanced and Floating Transformer Output: +25 dBu | | THD & Noise | At 2 kHz, +20 dBu output level, no load
Main output, compressor bypassed: better than 0.001%
Main output, compressor engaged: better than 0.06%
Noise: mostly 2nd harmonic
Measured at main output, un-weighted, 22 Hz to 22 kHz, terminated 40Ω
With gain at unity, compressor disengaged: better than -103 dBu
With gain at unity, compressor engaged: better than -92 dBu | | Frequency Response | Main output, unity gain at 18 Hz: -3 dB
Main output, unity gain at 150 kHz: -3 dB | | Crosstalk | Measured channel to channel: Better than -80 dB at 16 kHz | | Meters | Monitors INPUT LEVEL and GAIN REDUCTION of either channel A or channel B | | Power | Voltage Range: 9 to 18 VDC, 9 W
Connector: 0.2 x 0.1" (5.5 X 2.5 mm) DC jack, center positive | | Current Consumption | At 9 VDC: 1.0 A typical
At 12 VDC: 730 mA typical
At 15 VDC: 570 mA typical
At 18 VDC: 480 mA typical | | Dimensions (W x H x D) | 9 x 1.75 x 8.5" (22.9 x 4.4 x 21.6 cm) | | Weight | 8 lb (3.6 kg) | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 13.9 x 12.0 x 5.5" |
