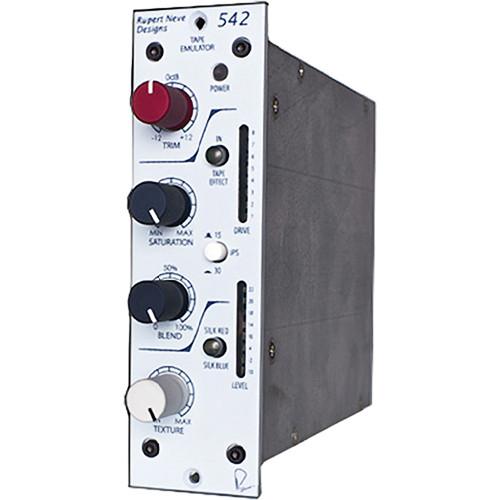

Product description The Portico 542 Tape Emulator from Rupert Neve Designs is a single-channel 500 series rack module that simulates the sound of analog tape, and adds texture to your audio with its dedicated Silk circuitry. The emulation of tape is achieved with analog hardware, as opposed to digital processing. The 542 features a "True Tape" circuit, which utilizes an authentic magnetic record head and a replay amplifier, giving the applied audio the warmth of tape compression. Texture can be added by pushing the Silk button, selecting Red or Blue mode, and adjusting a knob. This adds harmonic content that's reminiscent of vintage Neve equipment.
Tape Effects can be added in by pressing an illuminated button. A Saturation knob enables you to dial in the amount of effects, and a Blend knob lets you mix the pre and post signals. A 15 / 30 IPS button lets you select between the emulations of those two tape-based characteristics. Two eight-segment LED meters are on the face of the 542, one dedicated to Drive, the other to Level. When your signal hits the yellow LED in the Drive meter, a Soft Clip functionality kicks in, protecting your signal from peaking. A 500-Series power supply/rack is required for operation. UPC: 752423656967 In the Box Rupert Neve Designs Portico 542 Tape Emulator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rupert Neve Designs Portico 542 Tape Emulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRupert Neve Designs 542 Specs | Function | Tape Emulator | | Number of Channels | Single | | Inputs | 1x XLR | | Outputs | 1x XLR | | Controls | 1x Trim knob, +/- 12 dB
1x Saturation knob
1x Blend knob
1x Texture knob
1x Tape Effect In button
1x 15/30 IPS button
1x Silk button | | Maximum Output Level | 23.25dBu | | Frequency Response | Line amp specifications, with tape circuit disengaged:
Measured at +10dBu, trim at unity
Main Output +/- 0.25 dB from 5 Hz to 60 Khz -2 dB @ 120 kHz
Tape FX specifications:
15 IPS, Input @ -0 dBu -3dBu @ 28 kHz Saturation @ minimum 0dBu @ 10 Hz +5dBu Peak @ 60 Hz
Saturation @ maximum -3dBu @ 20 kHz -3dBu @ 12.5 Hz +2.4dBu Peak @ 60 Hz
30 IPS, Input @ -0 dBu -3dBu @ 120 kHz Saturation @ minimum -3dBu @ 10 Hz +3.15dBu Peak @ 125 Hz
Saturation @ maximum -3dBu @ 100 kHz -3dBu @ 12.5 Hz
+1.3dBu Peak @ 110 Hz | | Noise | Line amp specifications, with tape circuit disengaged:
Measured at Main Output, un-weighted, 20 Hz - 22 kHz, Input Terminated 40 Ohms
Unity Gain: better than -100dBu
Tape FX specifications:
Measured at Main Output, un-weighted, 20 Hz - 22 kHz, Input Terminated 40 Ohms
Saturation @ minimum: better than -100dBu Saturation @ maximum: better than -100dBu | | Total Harmonic Distortion/Noise | Line amp specifications, with tape circuit disengaged:
@ 1 kHz, +20dBu output level: better than 0.0025% @ 20 Hz, +20dBu output level 0.07% Typical (2nd and 3rd harmonic)
Tape FX specifications:
15 IPS, Input @ -0 dBu 0.4% @ 3 kHz to 1% @ 175Hz typical
Saturation @ minimum greater than 1% below 175 Hz typical
Saturation @ maximum 1% at 6 kHz typical 0.3% @ 1 kHz to 3% @ 50 Hz typical
30 IPS, Input @ -0 dBu 1% at 1 kHz typical
Saturation @ minimum 0.6% @ 400 Hz 5% @ 20 Hz typical
Saturation @ maximum 1.5% @ 20 kHz to 0.4% @ 1 kHz typical 0.4% @ 1 kHz to 2 %@ 50 Hz typical | | Meters | 1x 8-segment Level meter
1x 8-segment Drive meter | | Power Requirements | Supplied by 500 series rack with 110-125 mA @ +/- 16V DC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 2.175 lb | | Box Dimensions (LxWxH) | 10.1 x 7.8 x 3.0" |
