User Manual for Rupert Neve Designs RNDI Active Transformer Direct Interface Click to enlarge the picture
Contents of the user manual for the Rupert Neve Designs RNDI Active Transformer
- Product category: Direct Boxes Rupert Neve Designs
- Brand: Rupert Neve Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rupert Neve Designs Direct Boxes
 |
User manual for the Rupert Neve Designs RNDI Active Transformer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rupert Neve Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rupert Neve Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rupert Neve Designs product will considerably shorten its lifespan!
|

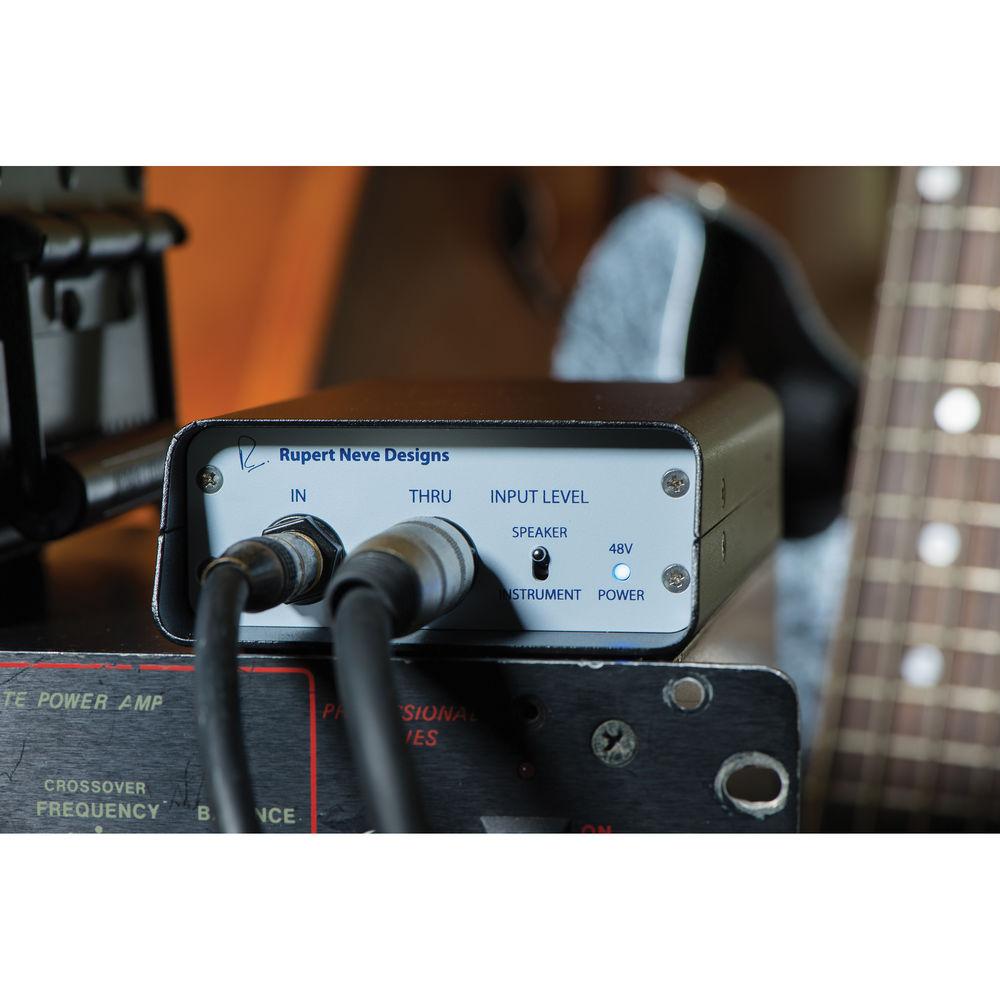

Product description Designed by the man himself to convey the undiminished tone and vitality of the source instrument while balancing and isolating the original signal, the Rupert Neve Designs RNDI Active Transformer Direct Interface raises the bar for DIs. The product of experimentation with new transformer designs, the interface uses class-A biased discrete FET amplifiers with low-impedance, transformer-balanced outputs to deliver consistent performance over cable stretches as far as 100' with minimal loss of high-frequency information.

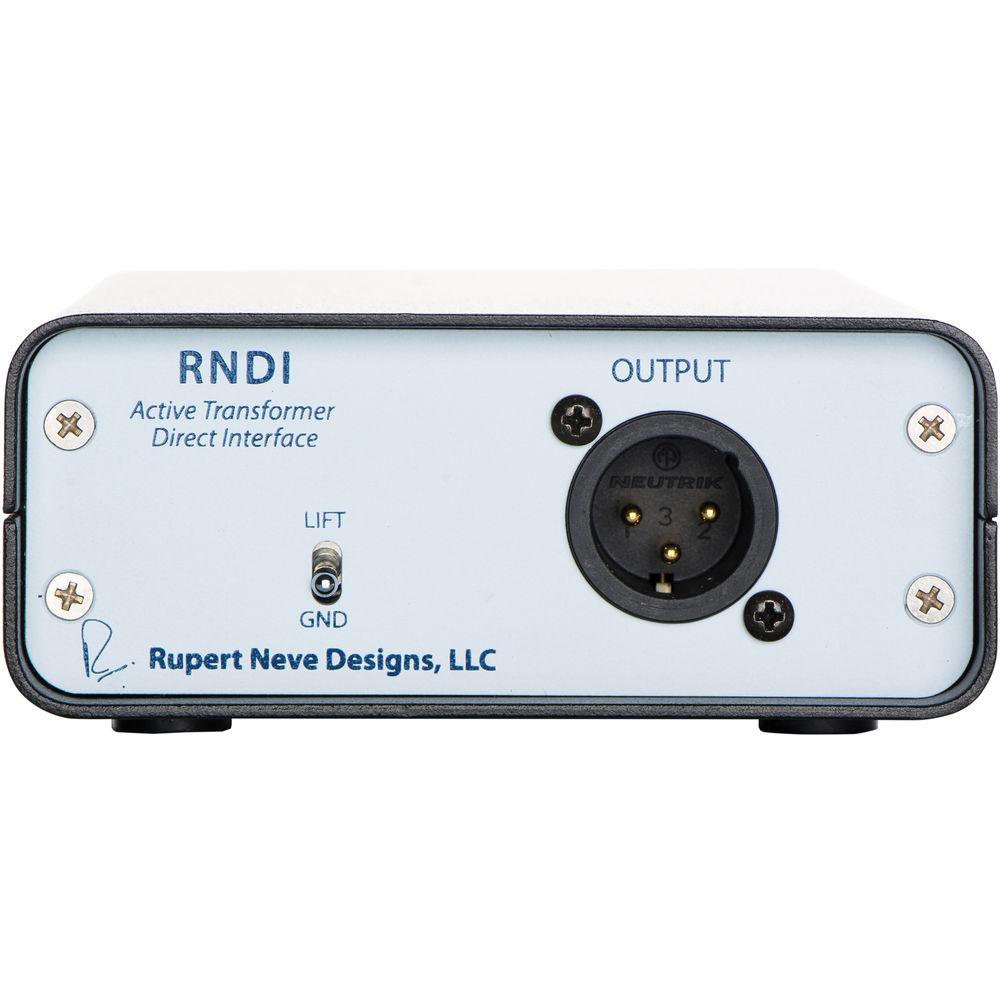

The unit is powered by industry-standard 48V phantom power on an XLR connection and creates a very high-impedance input of 2 MOhms to ensure consistent performance for a wide variety of instruments. The class-A design ensures that there is no crossover distortion added to the signal, which would otherwise add upper order odd harmonics which are musically dissonant. Instead the unit provides 2nd order (octave) and some 3rd order (fifth above octave) harmonics to enliven the sound. The discrete design of the system means there are no integrated circuits or digital components that can detrimentally effect the sound signature.

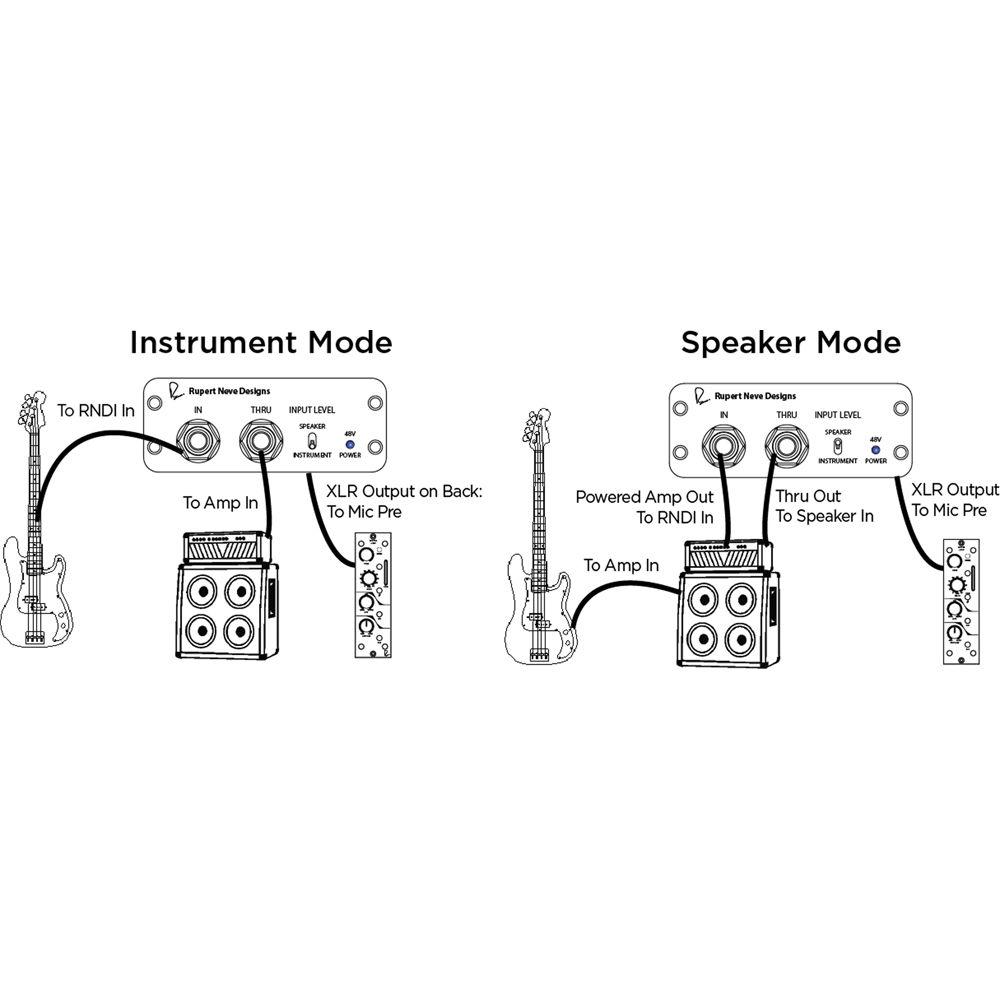

In instrument mode, the DI offers the user +21.5 dBU of gain, which is also capable of working with professional line-level sources like interfaces, CD players, and drum machines without a pad. This allows the unit to act as a "Re-Preamp" so you can change the tonality of a previously recorded piece of music. To do this, simply connect a channel output of the audio interface to the input of the DI and engage 48V power. By "Re-Preamping", you can apply the tone of another preamp to the source and more accurately automate or control the drive level on the preamp.
When placed in speaker mode, the unit can handle the output of a 1000W power amplifier (92 Vrms or 266 Vp-p) to capture the full tone of the instrument, preamp, EQ, inserts, and the amplifier's output stages before hitting the speakers. This allows the engineer to avoid any bleed in a live environment and any unwanted tone added by the speaker cabinet or microphone. When used with modern speaker emulation plug-ins, this allows the engineer to take advantage of the flexibility of digital modeling and the non-linear response of an actual analog amplifier. - Direct Tone
- Features class-A discrete components to deliver the legendary Neve tone
- Headroom
- Provides +21.5 dBU of gain for professional line-level sources without a pad in speaker mode. This makes the unit capable of handling the full output of a 1000W power amplifier (92 Vrms or 266 Vp-p)
- Rugged Steel Frame

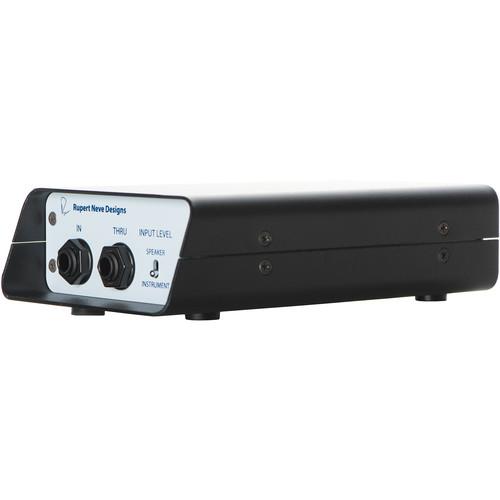

- Features an industrial-grade powder-coated steel chassis built to withstand the stresses of life on the road
- Variety of Sources

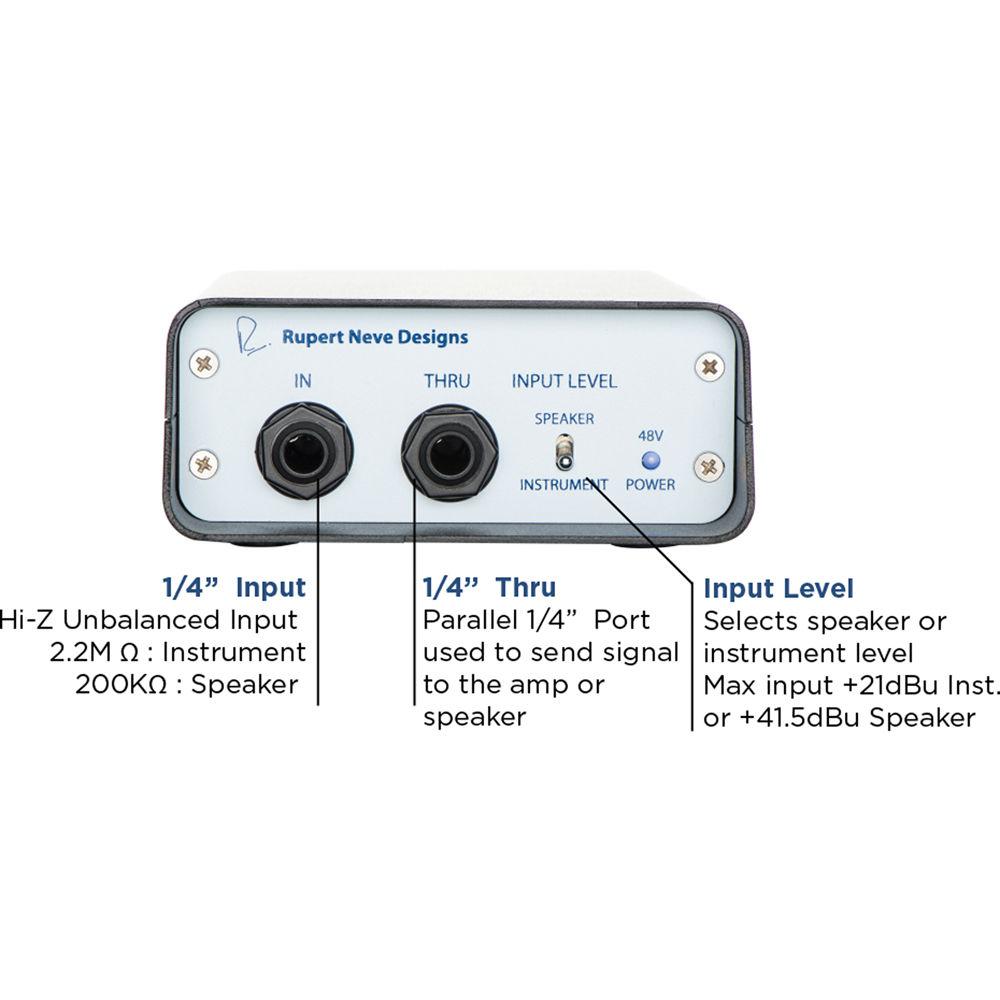

- Provides consistent performance across a variety of sources due to its 2 MOhms discrete FET input and high headroom. Works well with everything from basses, guitars, acoustic instruments, keyboards, and even professional line-level devices. In instrument mode, you can even connect a professional line-level interface output to "Re-Preamp" a previously recorded source
- Drive Longer Lines
- Utilizes a low-impedance transformer-coupled output, below 50 ohms, to drive long cable lines while retaining high-frequency content
- 1/4" THRU Output
- Uses a THRU output in Instrument mode to feed the amplifier input for sound reinforcement
- Phase Coherence
- Keeps the sound well-balanced and natural, especially important when blending the direct signal with a microphone capture of the same source
- Phantom Power
- Uses 48V phantom power with a blue LED indicator
UPC: 752423657315 In the Box Rupert Neve Designs RNDI Active Transformer Direct Interface Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rupert Neve Designs RNDI Active Transformer Direct Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRupert Neve Designs RNDI Specs | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 10.1 x 7.8 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Rupert Neve Designs RNDI Active Transformer Direct Interface
| Subject: Rndi troubleshooting | | Date: 09.04.2022 02:38:49 | Name: Greg Wenk | | I can't seem to get a signal to my interface. I have it hooked up as directed and shave sound through the amp but the light doesn't come on and it doesn't show any signal to my interface. Any suggestions? Thanks | | Post reply |
