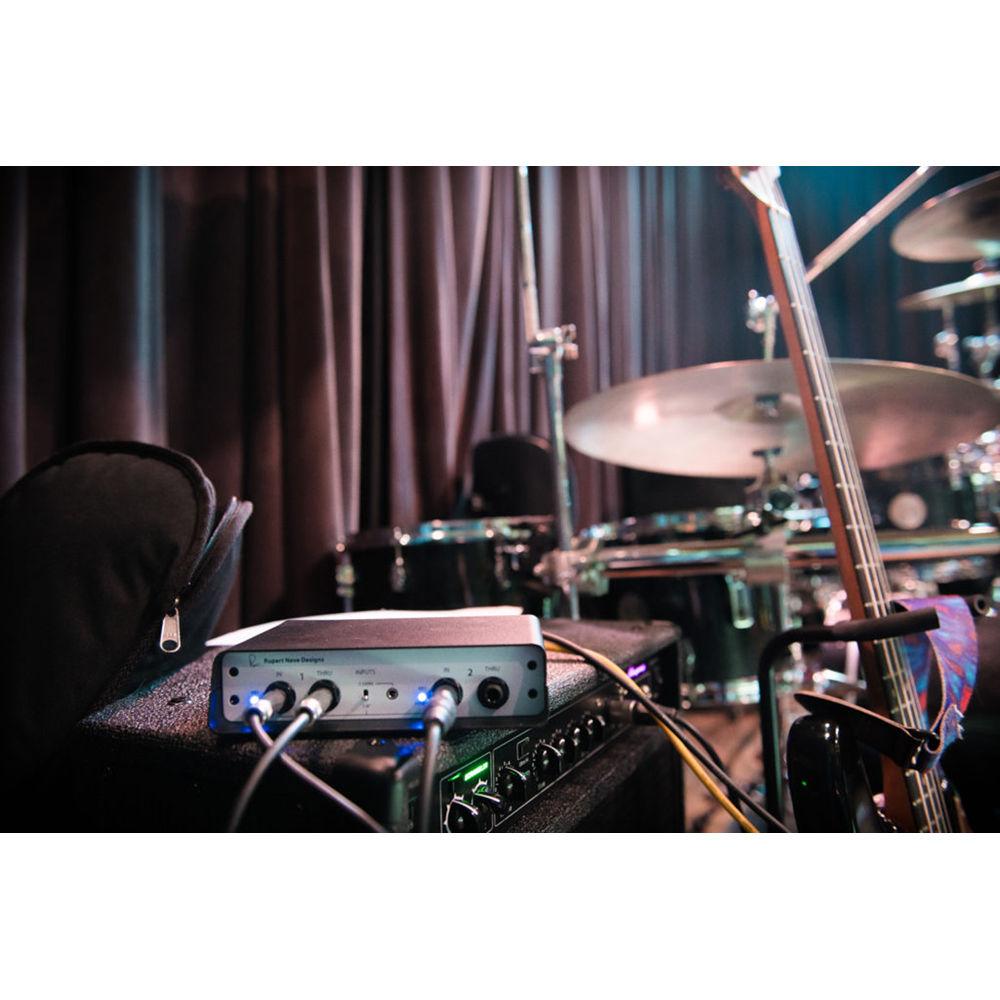

Product description Designed for guitarists, keyboardists, bass players, and other instrumentalists, the Rupert Neve Designs RNDI-S is a stereo DI box that employs the same architecture and design of the well-regarded RNDI. The DI Box utilizes custom RND transformers as well as Class-A biased, discrete FET amplifiers. This ensures both a rich tone and high headroom so that you maintain a powerful tone when you plug your instrument into a house PA, mixing desk, or recording interface.

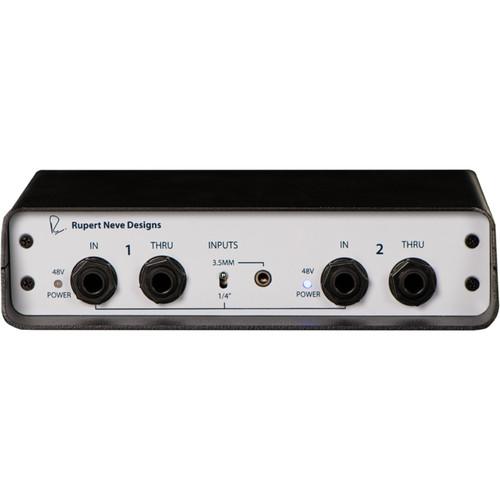

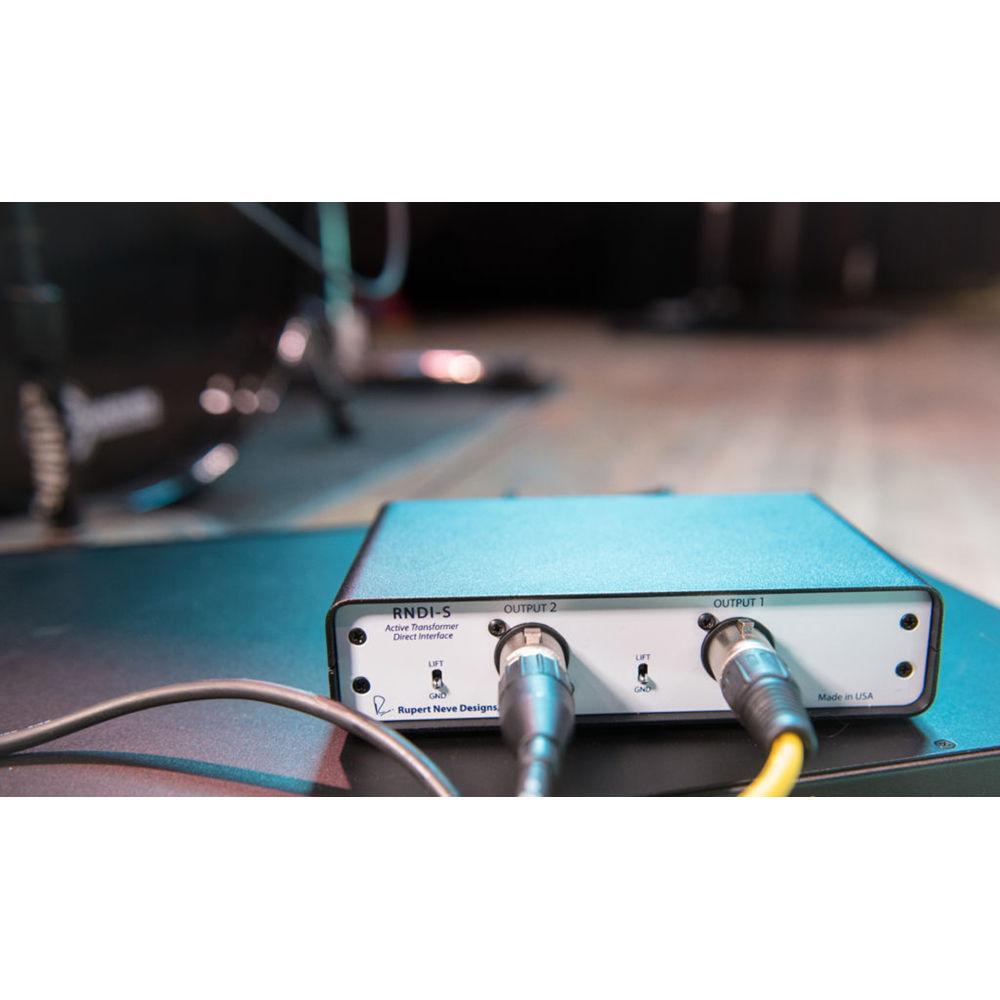

The device sports two 1/4" instrument inputs and a stereo 3.5mm auxiliary input for consumer-grade devices. You can switch between the 3.5mm input and the 1/4" section by toggling the front-panel switch. Two 1/4" thruputs are on hand should you want to route parallel signal to your onstage amplifier. On the rear of the RNDI-S, you'll find two XLR outputs for feeding the house PA or recording interface. Ground-lift switches allow you to minimize any hum associated with ground loops. The unit is powered via 48V phantom power straight from the house or recording interface.
The unit sports a virtually flat frequency response from 30 Hz to 63 kHz, and quite little in the way of distortion. Because of its transformer-coupled outputs, the RNDI-S can drive long cable lines with minimal signal loss. You can mount the RNDI-S into a rack-shelf via its 4-hole pattern, specifically sized for 6-32 machine screws. - Key Features at a Glance
-
- Custom Rupert Neve Designs transformers for rich, powerful tone
- Exceptional performance with any instrument
- Discrete FET amplifiers ensure clarity
- Drives long cable lines with minimal loss
- Rugged steel frame built for life on the road
- Powered by 48V phantom power
- Excellent phase coherence at all frequencies
UPC: 752423657414 In the Box Rupert Neve Designs RNDI-S Stereo DI Box for Keyboards, Basses & More Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rupert Neve Designs RNDI-S Stereo DI Box for Keyboards, Basses & More in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRupert Neve Designs RNDIS Specs | I/O | 2 x 1/4" Instrument Inputs, Phone Type
2 x 1/4" Instrument Thruputs, Phone Type
1 x 3.5 mm TRS Auxiliary Input, Phone Type
2 x XLR Outputs | | Noise | > -110 dBV (22 Hz to 22 kHz, Measured Output, Unweighted, Source Impedance 150 Ohms) | | Input Impedance | Instrument: 2.2 MOhms
Auxiliary: 95 kOhms | | Output Impedance | < 40 Ohms | | Frequency Response | 30 Hz to 63 kHz (±0.25 dB)
12.5 Hz to 120 kHz (±1 dB)
5 Hz (-3 dB) | | Maximum Input Level | Instrument Input: +20.5 dBu, Typical | | Maximum Output Level | 11.5 dBu, Typical | | THD + N | 0.35%, Typical (2nd and 3rd Harmonic at 1 kHz, +20 dBu Input Level, No Load)
0.009%, Typical (2nd and 3rd Harmonic at 1 kHz, -20 dBu Input Level, No Load)
0.9%, Typical (2nd and 3rd Harmonic at 20 Hz, -20 dBu Input Level, No Load) | | Crosstalk | Instrument Input: -115 dB at 10 kHz
Auxiliary Input: -108 dB at 10 kHz | | Power Requirements | 48 VDC, 4.5 mA per Channel, Phantom Powered | | Rackmountable | 4-Hole Pattern at Bottom of Unit, for 6-32 Machine Screws | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 2.885 lb | | Box Dimensions (LxWxH) | 10.2 x 8.85 x 3.0" |
