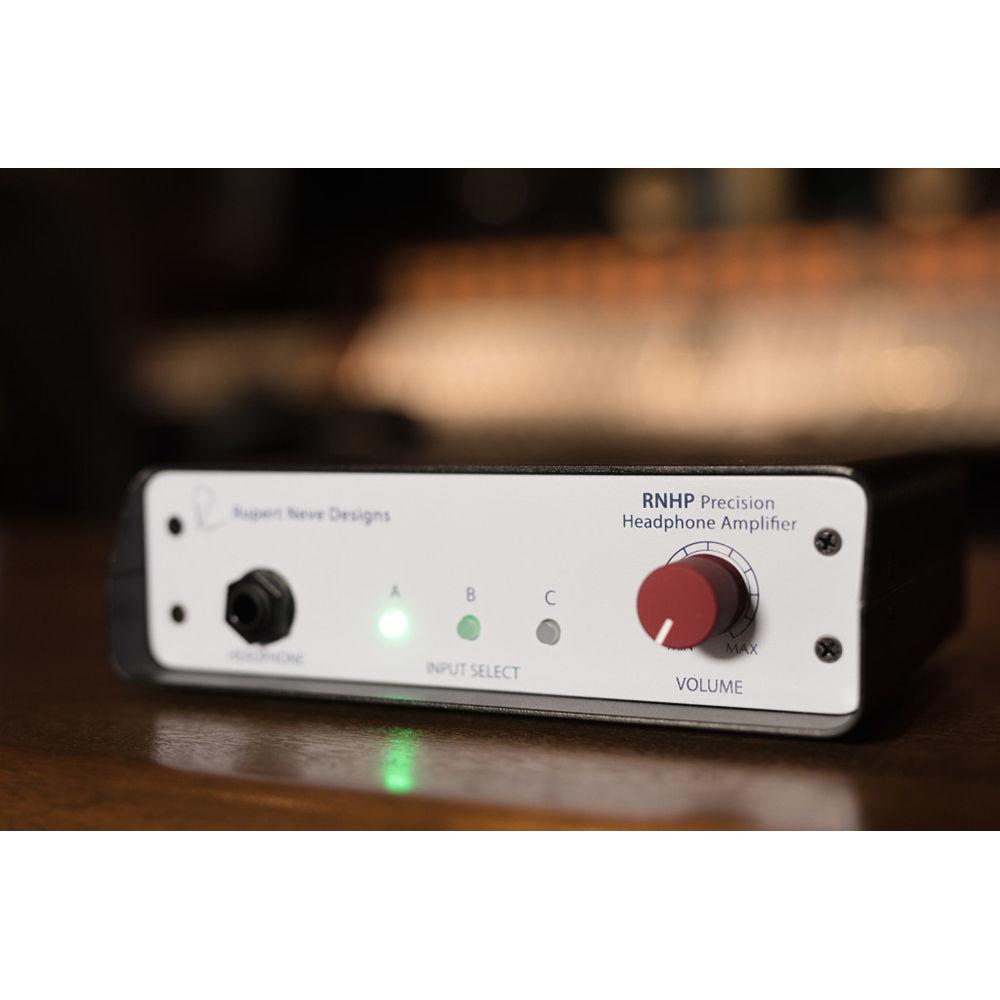

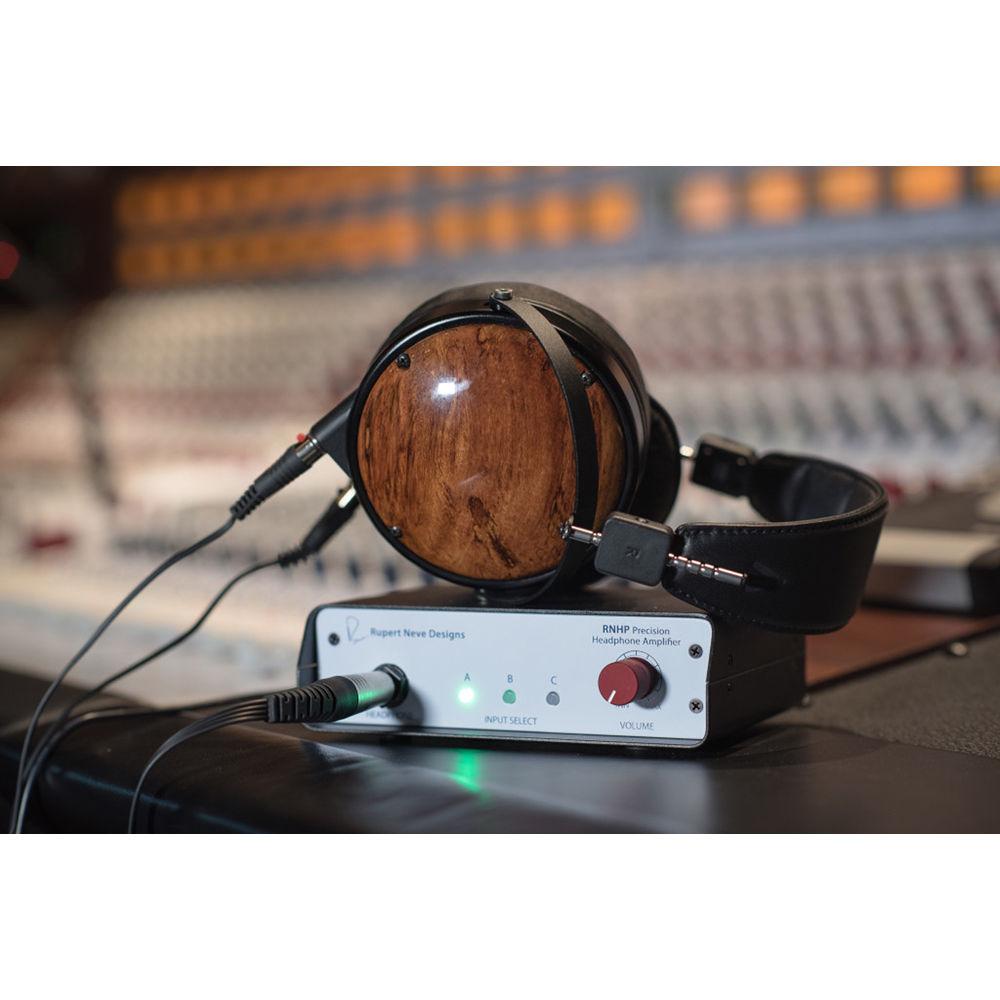

Product description Rupert Neve Designs: RNHP Precision Headphone Amplifier Read More rusdtefubcywbsbqbexvyydwq The RNHP Precision Headphone Amplifier from Rupert Neve Designs is a dedicated 24V reference-quality headphone amplifier that has a specifically-calibrated +4 dBu balanced line input, an unbalanced RCA input, and a 1/8" stereo mini-jack input, housed in a rugged VESA-mountable steel chassis. The headphone amplifier is based on the output circuit in the popular 5060 Centerpiece Desktop Mixer and has wide-open sonic performance with the ability to drive any pair of headphones up to 600 Ohms. The RNHP allows you to perform, mix, and enjoy your music with a new level of clarity. The 24V power supply is also included. - Precision Sound
- Wide-open, extremely detailed sound quality allows you to get the most out of your headphones
- Dedicated Power
- High-power, high-headroom design can effortlessly drive high-impedance (up to 600 Ohms) headphones even during the loudest, most dynamic tracking sessions
- Reliable Translation
- The near-zero output impedance (.01 Ohm at 1 kHz), direct-coupled amplifier design provides for excellent translation with any pair of headphones

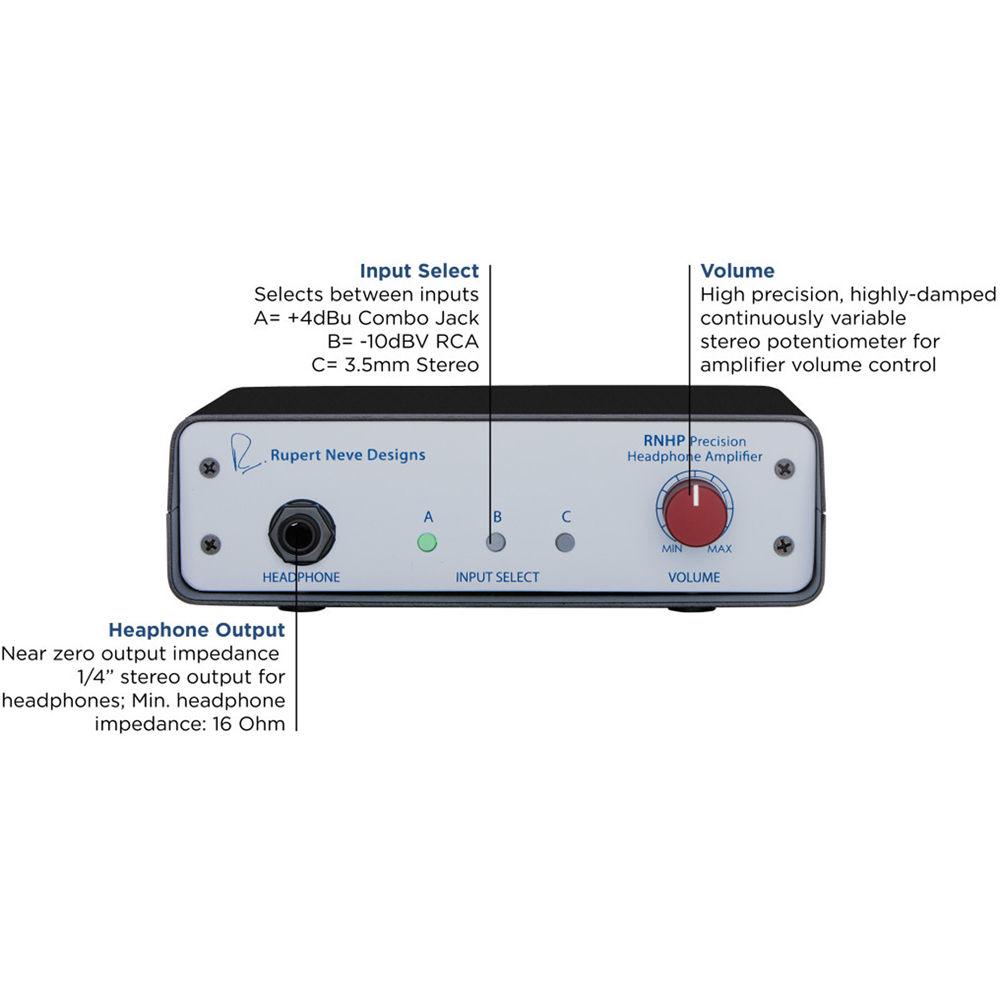

- Precision Stereo Potentiometer
- The highly damped stereo potentiometer is designed to give you precise level control and maintain perfect left-right balance

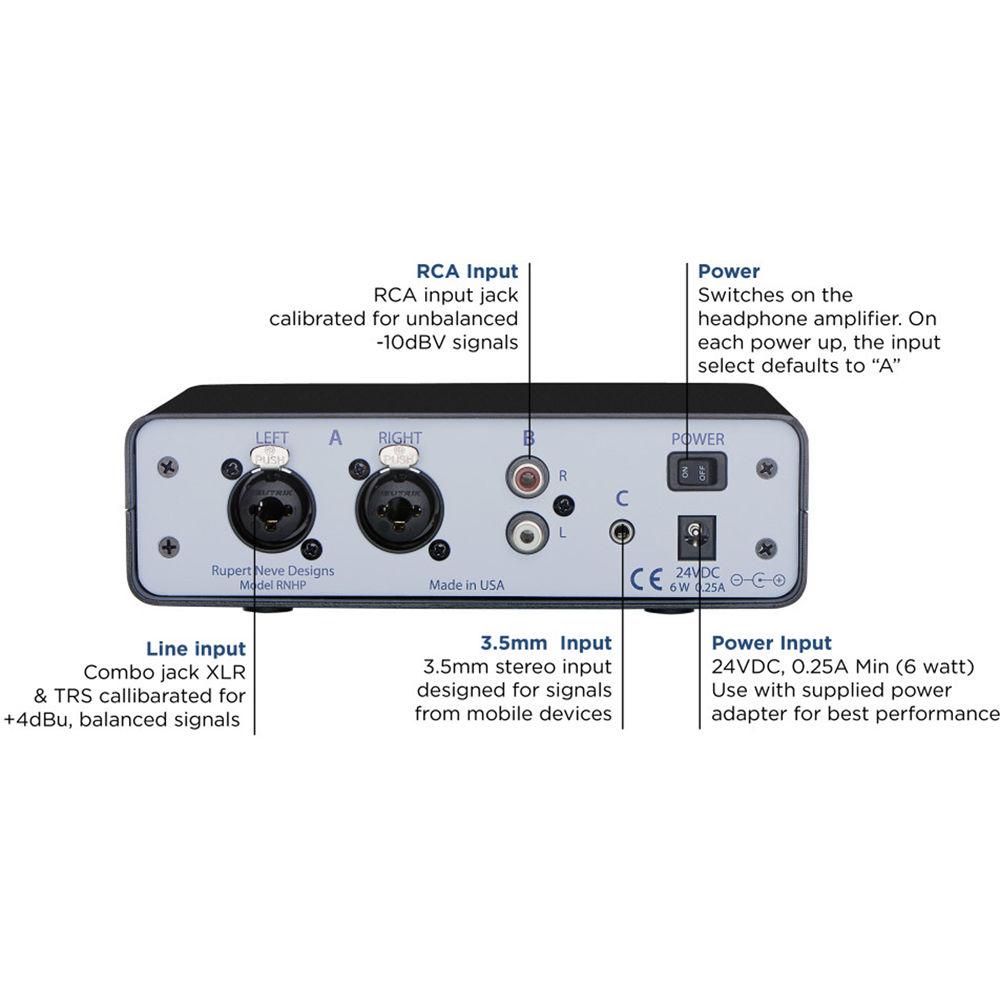

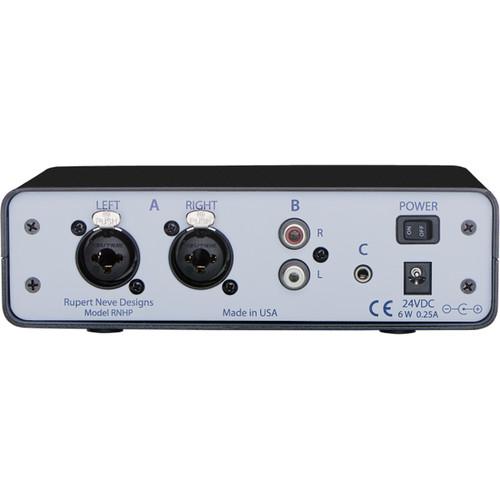

- Professional Line Input
- The calibrated +4 dBu line input is selected with the "A" switch. The combo jack accepts either XLR or TRS inputs for balanced professional devices
- RCA Input
- The unbalanced RCA input is calibrated for -10 dBV signals and is selected with the "B" switch. The RCA jack is commonly used with home stereo devices or prosumer equipment
- 1/8" Input
- Stereo 1/8" (3.5mm) input is specifically calibrated to work with mobile devices like smartphones, computers, and digital cameras

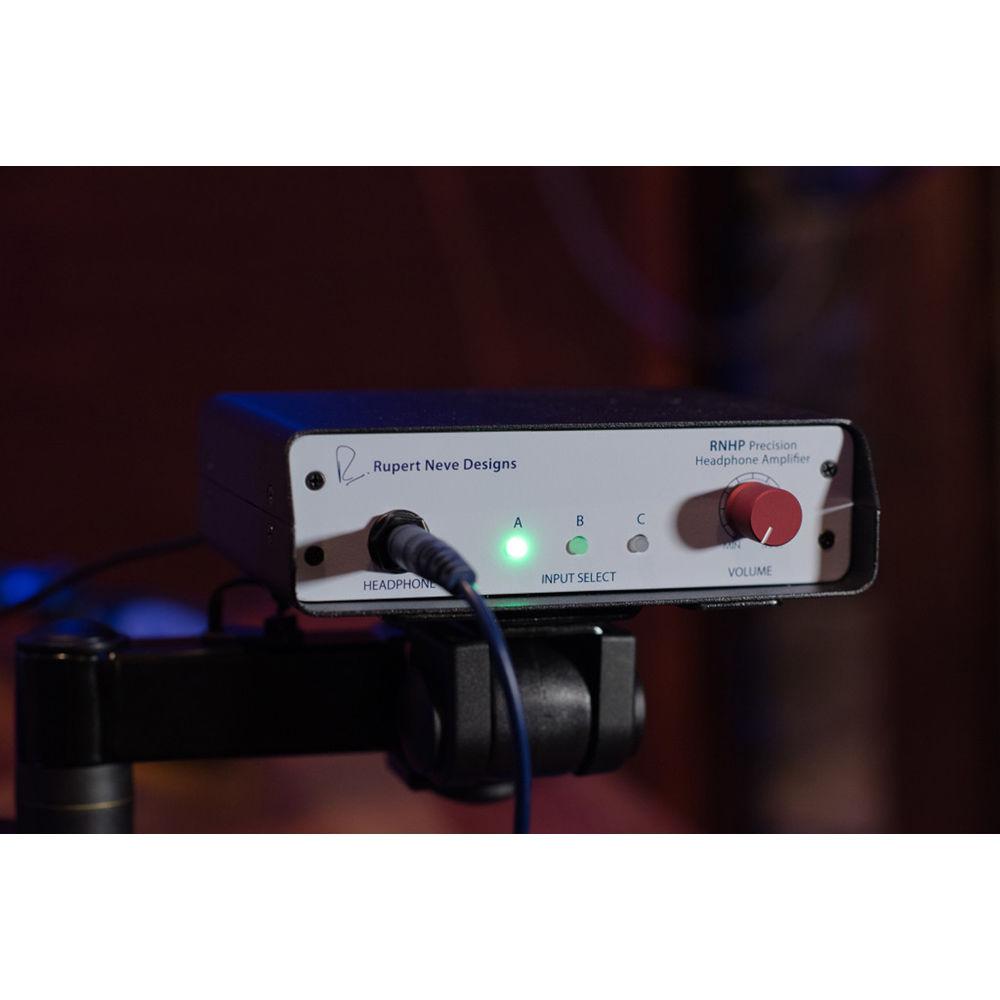

- VESA Mount
- The VESA 100 compatible mount enables you to mount the RNHP wherever it needs to be. Common mounts are pole-mount arm for mic stands, pivoting multi-arm desk mount, and wall / surface mount for securing upside-down under a table, music stand, or other studio furniture

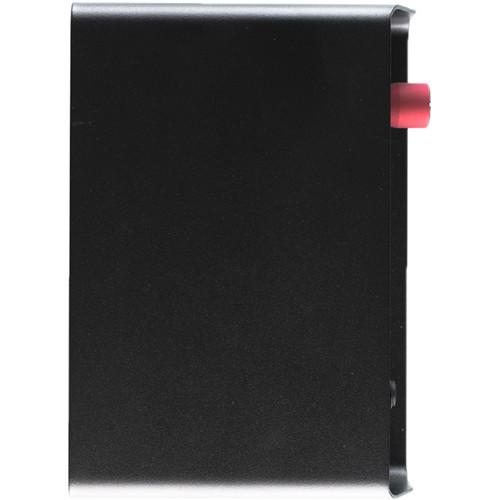

- Steel Clamshell Chassis
- The RNHP's rugged, solid-steel chassis is built to a high industrial standard with an overhang to protect the connectors and main level control from glancing blows, as well as shock-absorbing rubberized feet
- 24 VDC Input
- The RNHP can be powered using either the included 6W power supply or a 24V, 0.25A min battery (sold separately)
UPC: 752423657346 In the Box Rupert Neve Designs RNHP Precision Headphone Amplifier Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rupert Neve Designs RNHP Precision Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRupert Neve Designs RNHP Specs | Maximum Input Levels | "A" XLR I/P: +22.8 dBu @ 1 kHz
"B" RCA I/P: +14.7 dBu @ 1 kHz
"C" 1/8" (3.5 mm) I/P: +3.3 dBu @ 1 kHz | | Output Power | Measured with typical headphones, Z=44 Ohms: 3.617 VAC RMS @ 1 kHz = 300 mW RMS
16 Ohms Typical Load: 1.933 VAC RMS @ 1 kHz = 230 mW RMS
150 Ohms Typical Load: 5.108 VAC RMS @ 1 kHz = 175 mW RMS | | Output Impedance | .08 Ohms @ 1 kHz, 16 to 150 Ohms load, 0 dBu input | | Frequency Response | +/- 0.2 dB from 10 Hz to 120 kHz | | Noise | Measured with typical headphones, Z=44 Ohms, BW 22 Hz to 22 kHz
"A" XLR Input: -101.9 dBV
"B" RCA Input: -100.9 dBV
"C" 1/8" (3.5mm) Input: -88.8 dBV | | Power Supply Requirements | 24 VDC @ 0.25 Amp (6 watt) minimum. (use with supplied power adapter, for best output power and noise performance)
(May be used with a properly configured 24 V battery as well) | | Dimensions (W x D x H) | 6.5 x 4.6 x 1.9" (16.5 x 11.7 x 4.8 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 13.2 x 6.7 x 3.4" |
