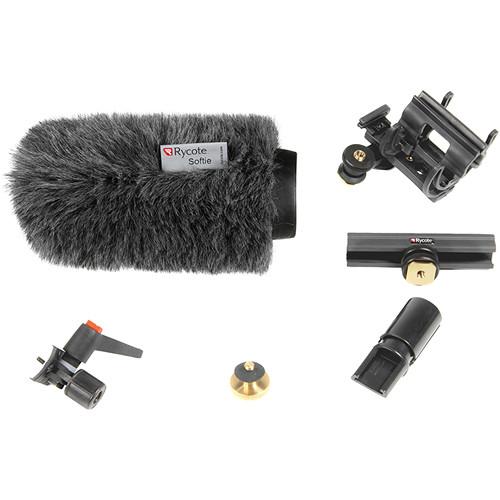

User Manual for Rycote Classic-Softie Camera Kit for Shotgun Microphones Click to enlarge the picture
Contents of the user manual for the Rycote Classic-Softie Camera Kit for Shotgun
- Product category: Shotgun Wind Protection Rycote
- Brand: Rycote
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rycote Shotgun Wind Protection
|
User manual for the Rycote Classic-Softie Camera Kit for Shotgun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rycote product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rycote user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rycote product will considerably shorten its lifespan!
|
Product description The Rycote Classic-Softie Camera Kit for Shotgun Microphones (15cm) is an all-in-one kit for outside filming using your camera mounted shotgun microphone with a slot no further than 15cm from the front of the mic and 19-25mm in diameter.
This kit contains a microphone shock mount with attachments suitable for mounting video cameras, booms, and stands. It also contains a Classic-Softie windshield for protection against wind noise.
The kit also includes an InVision Video Shock Mount that incorporates a patented Lyre suspension to provide enhanced protection against vibration as well as handling and camera motor noise. This flexible shock-mount is fitted with a Hot Shoe fixture, but also comes with a Male to Female thread adapter, 3/8" Boom Swivel and Camera Clamp Adapter, for versatility in how you attach this mount to your camera or boom pole. - 037303 Cold Shoe Extension
- Product Demo
- Product Demo
- Product Demo
The Rycote 037303 Cold Shoe Extension is a 4" bar that fits in your camera's hot shoe mount or in any cold shoe accessory mount and allows you to fit more than one accessory to your camera equipment. - 1/4"-20 Threaded female socket + flash shoe on bottom
- Double locking nut allows bar to adjust relative to the stem
- InVision Video Hot Shoe Microphone Suspension - Lyre Shockmount The InVision Video Hot Shoe Microphone Suspension from Rycote slides into the hot shoe mount of most commercial camcorders to hold microphones with diameters from 19-25mm, while protecting against camera motor noise and vibrations. It is designed to enable camcorder users and videographers to capture the best possible sound for their productions using external camera-mounted microphones.The InVision Video uses the patented Lyre Suspension webs with a molded grip design to prevent your mic from slipping or twisting. For ease in finding the right mounting position, the InVision Video rotates freely 360° on a slotted 4" (100mm) mounting bar. The cradle can slide freely on this slotted bar to keep your mic out of the shot.
- 19 to 25mm Mounting Cradle
- The cradle included with this system accommodates microphone diameters measuring between 19 to 25mm. The interior is treated with a soft-grip surface for a perfect, non-slip fitting
- 037302 Hot Shoe 3/8" Adaptor The Rycote 037302 Hot Shoe Adaptor with 3/8" Male Thread lets you attach any fitting with a 3/8" thread to a camera hot shoe.
- CC-Hotshoe Camera Clamp Adapter This Rycote CC-Hotshoe Camera Clamp Adapter allows standard shoe-mountable items to be used in a 21/25mm camera clamp. The adapter ships with a removable sleeve that acts as a shim for providing a snug fit into 25mm clamps (Sony and Canon). Without the sleeve, the adapter easily mounts the 21mm clamps found on JVC and Panasonic brand cameras.
- Top Fitting: Suitable for male flash shoe accessories
- Length: Overall Length: 2.56" (65mm)
- Mic clamp (with sleeve): 0.98 x 1.49" (25 x 38mm)
- Mic clamp (without sleeve): 0.82 x 1.49" (21 x 38mm)
- Weight (with sleeve): 0.6 oz (16.9g)
- Standard Hole Softie Windscreen with 19-22mm (0.74-0.87") Hole Size Rycote Softies provide optimum wind diffusion and noise rejection while remaining cost effective. This softie features a standard size hole and measures 15cm (5.91") in length. The softie will fit microphones with diameters from 19-22mm (0.74-0.87").
In the Box Bundle Items 037303 Cold Shoe Extension fsbzxtabdvuwcc InVision Video Hot Shoe Microphone Suspension - Lyre Shockmount 037302 Hot Shoe 3/8" Adaptor CC-Hotshoe Camera Clamp Adapter Standard Hole Softie Windscreen with 19-22mm (0.74-0.87") Hole Size
Also Includes - 3/8" Boom Swivel with Lever
- 1/4" Adapter with 19mm Washer
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rycote Classic-Softie Camera Kit for Shotgun Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 037303 Cold Shoe Extension
| | | Box Dimensions (LxWxH) | 5.1 x 1.5 x 1.3" | - InVision Video Hot Shoe Microphone Suspension - Lyre Shockmount
| Mounting Thread | Hot shoe | | Mounting Options | Diameter: 0.75 - 1" (19 - 25mm)
Length: 2 - 12" (50 - 300mm) | | Length | Mic Grip: 5.5" (65mm) | | Weight | 3 oz (84g) | | | | Box Dimensions (LxWxH) | 5.1 x 3.1 x 2.9" | - 037302 Hot Shoe 3/8" Adaptor
| | | Box Dimensions (LxWxH) | 3.2 x 1.9 x 0.02" | - CC-Hotshoe Camera Clamp Adapter
| | | Box Dimensions (LxWxH) | 1.9 x 1.6 x 0.7" | - Standard Hole Softie Windscreen with 19-22mm (0.74-0.87") Hole Size
| Compatible Mic Diameter | 0.748 to 0.87" / 19 to 22 mm | | Inner Depth | 5" / 12.7 cm | | | | Box Dimensions (LxWxH) | 10.6 x 4.3 x 3.2" |
