User Manual for Rycote ConnBox 1 - Microphone Cable Connection Box for Modular Suspension System with Single TA3-male Connection Click to enlarge the picture
Contents of the user manual for the Rycote ConnBox 1 - Microphone Cable
- Product category: Grips & Mic Suspensions Rycote
- Brand: Rycote
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rycote Grips & Mic Suspensions
 |
User manual for the Rycote ConnBox 1 - Microphone Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rycote product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rycote user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rycote product will considerably shorten its lifespan!
|

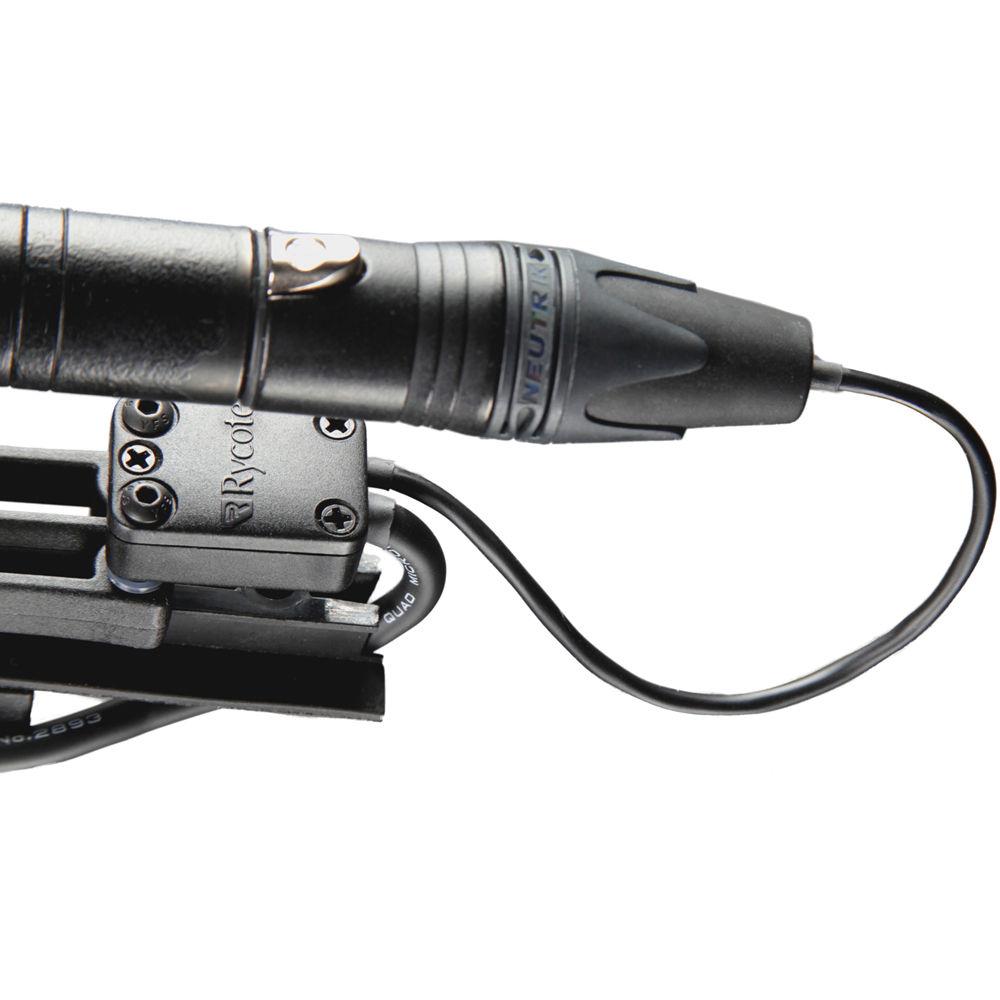

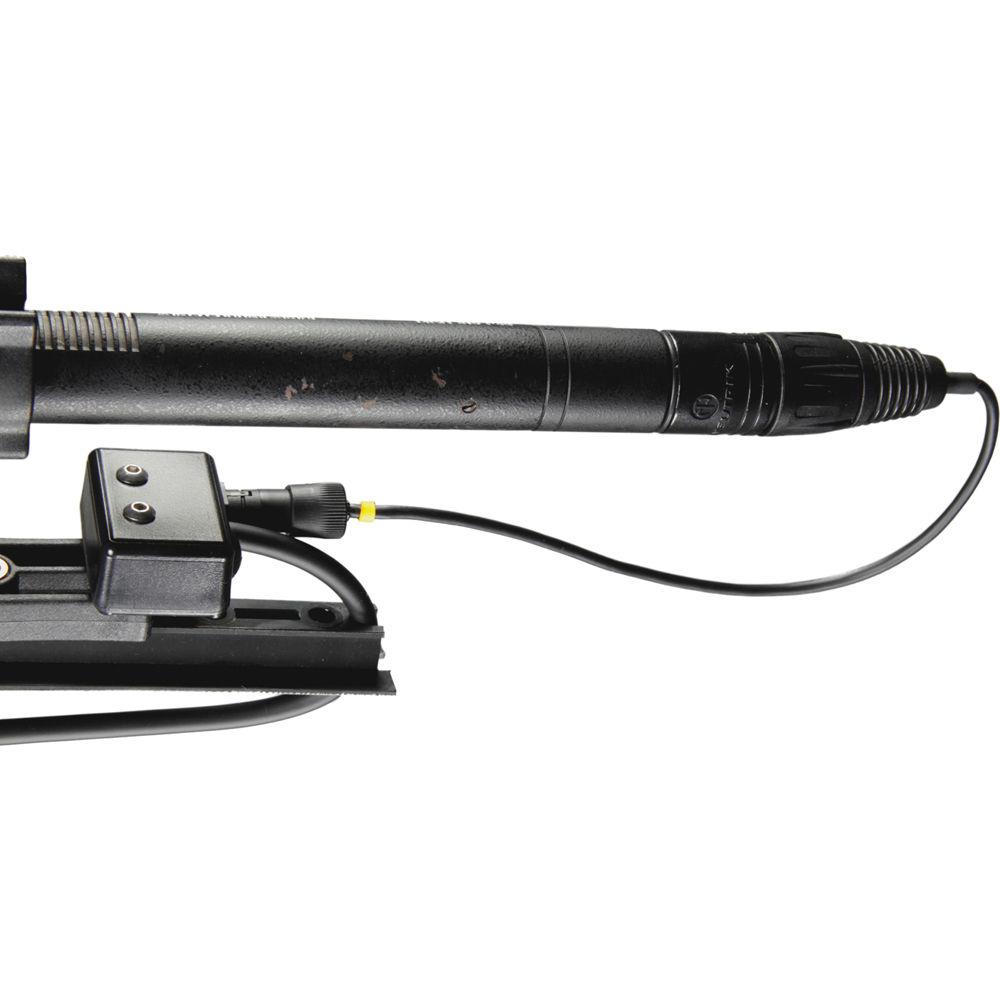

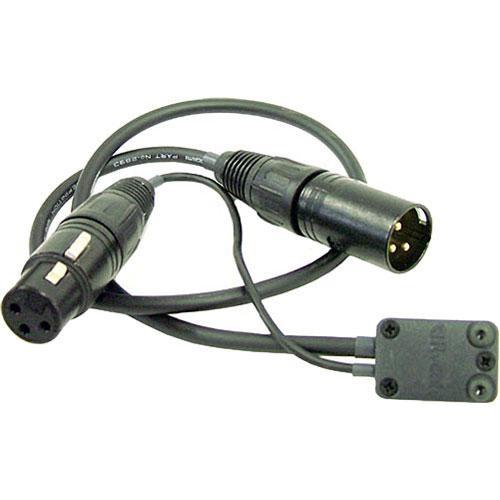

Product description The Rycote ConnBox microphone cable connector boxes are designed to mount on the Rycote Suspension system. The ConnBox serves as a solution for 2 major problems associated with microphone shock isolation. Rigid microphone cables often deny true microphone isolation, weighing the microphone down and causing noise from movement and vibration to reach the microphone. Noise and rattling due to bulky cable connections can cause problems as well. The ConnBox simply connects between the microphone and input device. Being that the ConnBox mounts to the Suspension system, the microphone cable is given the necessary slack needed to achieve true noise free isolation. The ConnBox features a hardwired output cable (XLR 3-pin or 5-pin connection depending on model) and TA-3M or TA-5M (also model specific) input connectors. The microphone cable is always included and features a standard 3-pin XLR female connector. - TA-3 Input Connector
- The ConnBox 1 features a TA3-male input connector. An XLR female to TA3-male microphone cable is included. TA3 connectors eliminate handling noise due to bulky standard XLR connectors, while allowing the unit to remain unobtrusive.
- Standard XLR Output
- A hardwired XLR output cable connects to standard XLR female inputs. The ConnBox will pass phantom power to condenser microphones whenever necessary.

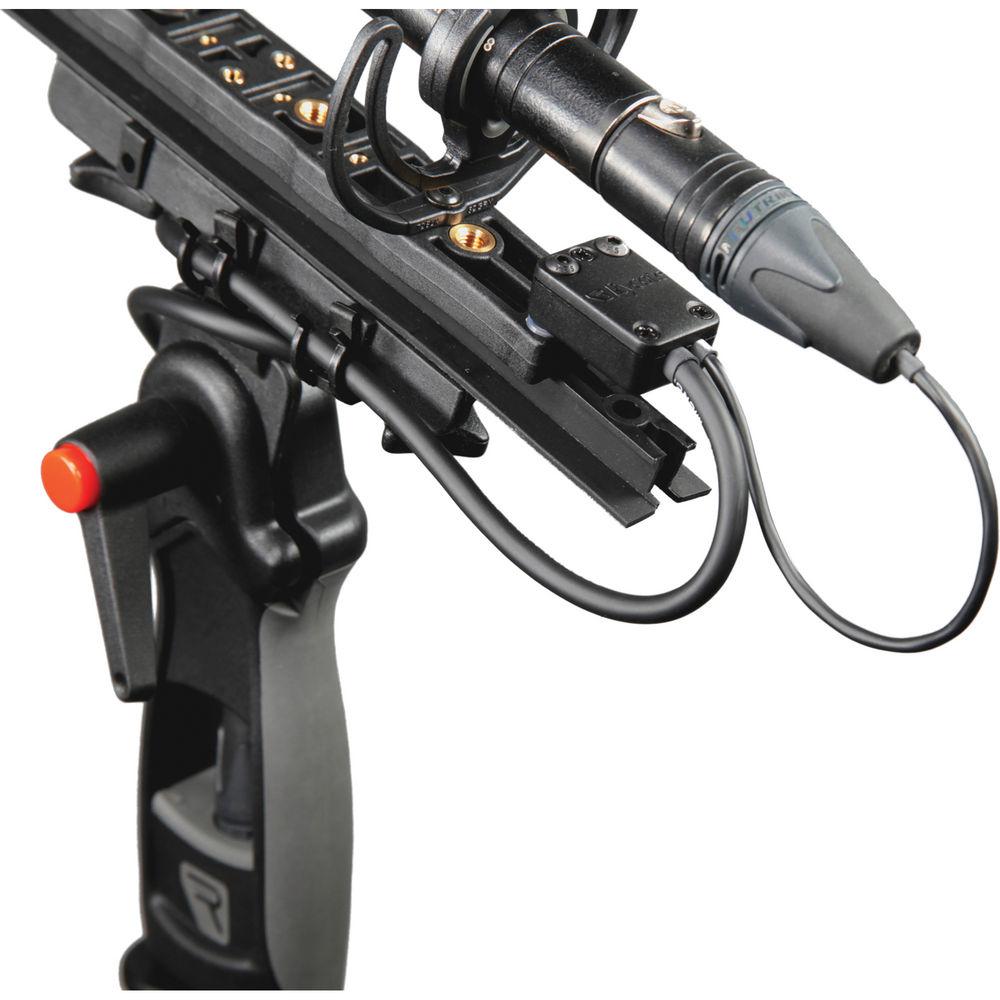

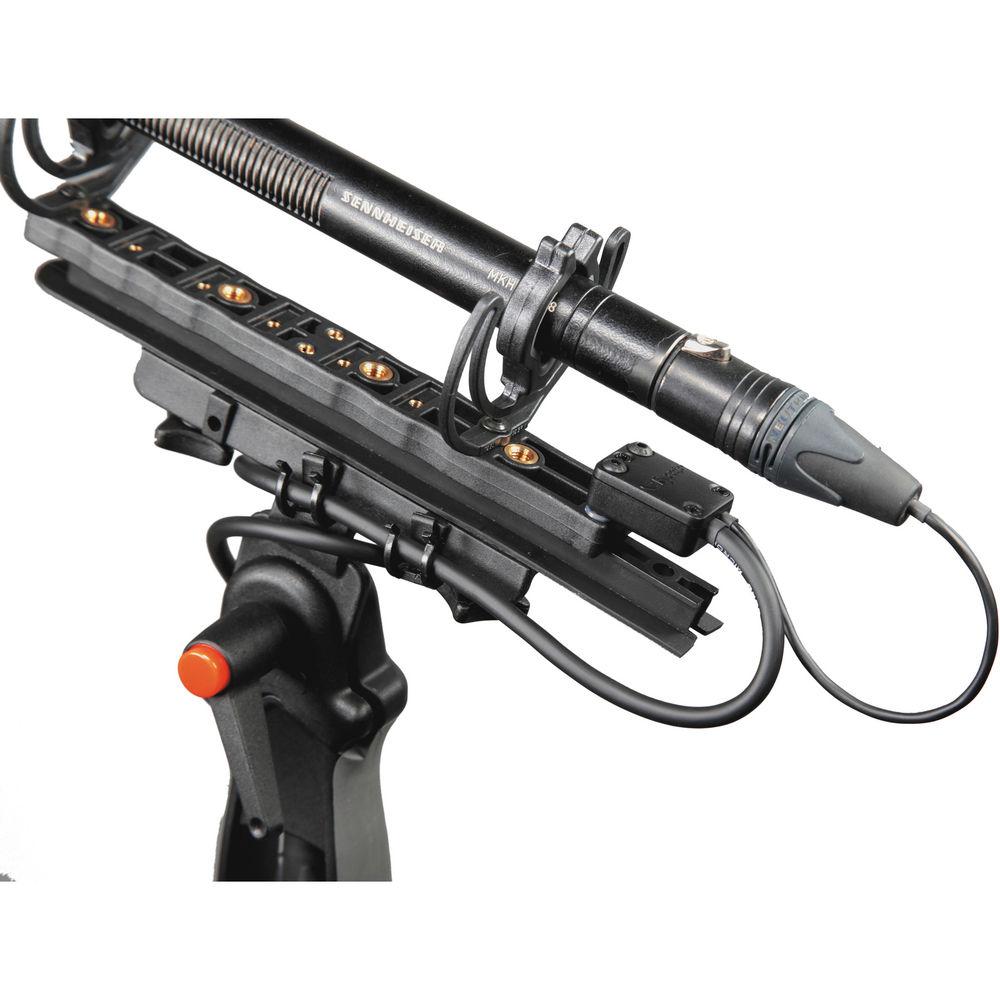

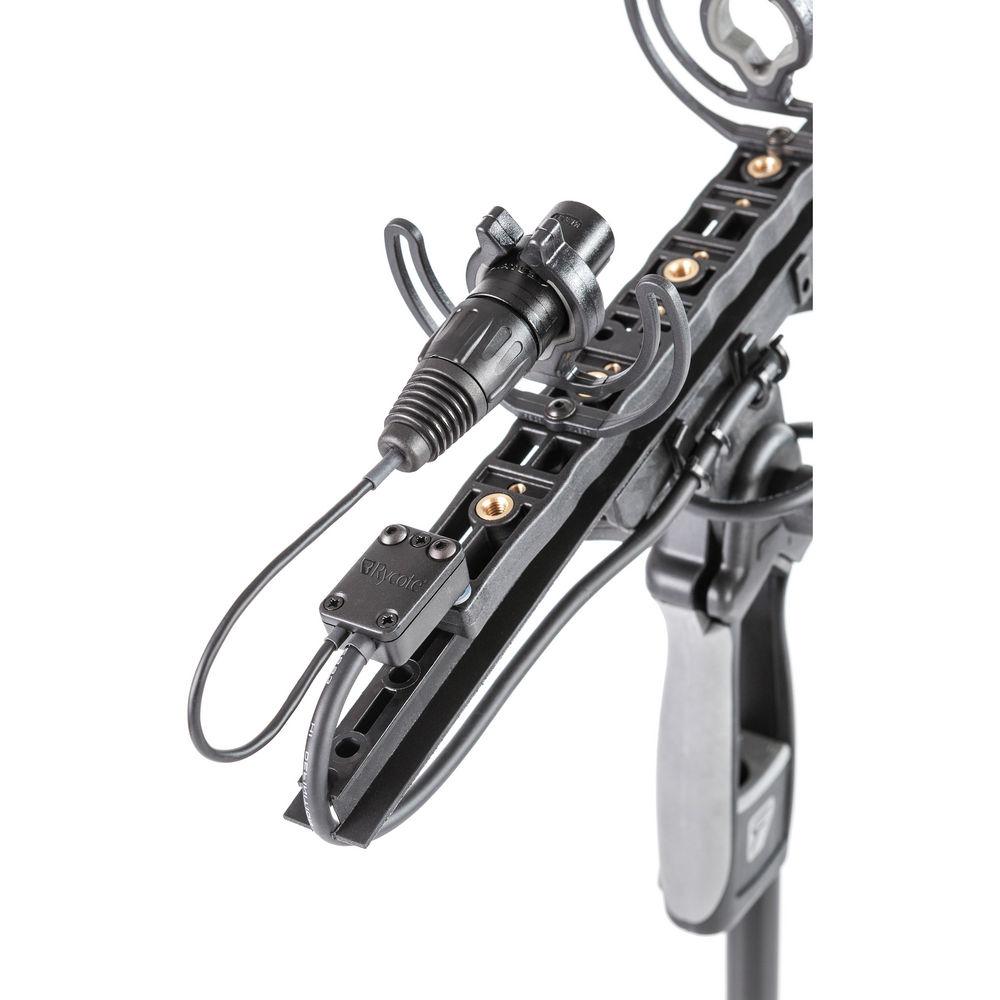

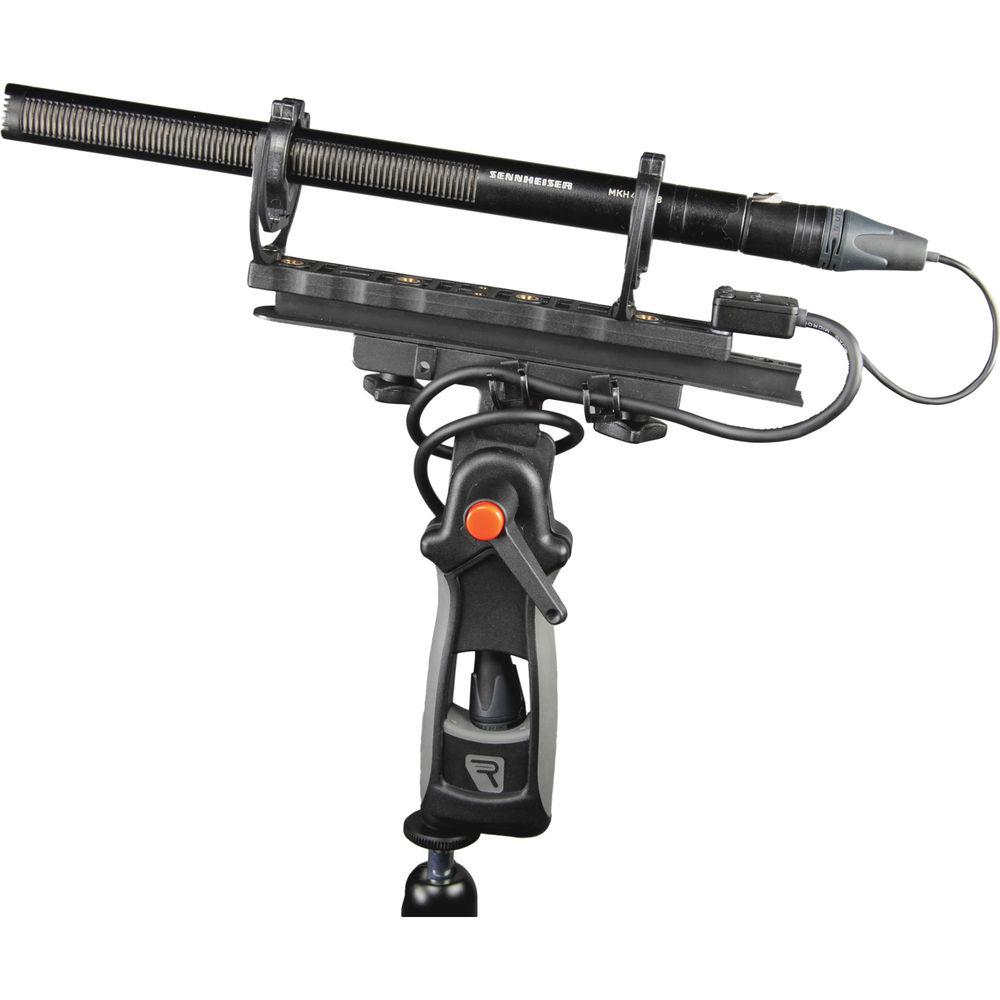

- Mounts To Rycote Suspension Mount
- The ConnBox mounts directly onto the Rycote Suspension Mount, relieving cable tension that can cause noise or damage.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rycote ConnBox 1 - Microphone Cable Connection Box for Modular Suspension System with Single TA3-male Connection in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRycote ConnBox 1 Specs | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.8 x 4.8 x 1.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
