User Manual for Rycote Modular Windshield WS 4 Kit
Click to enlarge the picture Contents of the user manual for the Rycote Modular Windshield WS 4 Kit
Product category: Shotgun Wind Protection Rycote
Brand: Rycote
Description and content of package
Technical information and basic settings
Frequently asked questions – FAQ
Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
Authorized service for Rycote Shotgun Wind Protection
User manual for the Rycote Modular Windshield WS 4 Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rycote product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rycote user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rycote product will considerably shorten its lifespan!
Product description
Product Demo
Product Demo
Product Demo
Product Demo
Product Demo

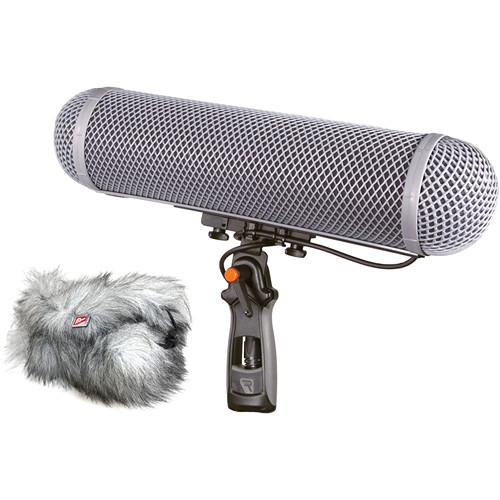

The Modular Windshield WS 4 Kit (XLR-5F) from Rycote provides you with the accessories needed to prevent or isolate your microphone from up to 50 dB of wind and handling noise. It can be used in various outdoor environments, when maximum isolation from wind and handling noise is required, including such audio applications as weddings, outdoor and water sports, boating, and more. The WS 4 Kit features a modular suspension with pistol grip, a windshield, and a windjammer. Also featured are a boom pole adapter, a CB4 Connbox, and an XLR holder.The microphone fits on the modular suspension and attaches to the Connbox. The windshield fits onto the suspension and is enclosed around the mic. The fuzzy windjammer then fits over the windshield. This completely modular system can be configured to allow almost any microphone to be shock-mounted. Two Duo-Lyre suspension webs, a brush, and a hex head key are included.
Modular Suspension
Complete isolation is provided against handling noise and cable-borne noises. It also supports the microphone in a cradle using Lyre suspension webs.
Windshield
The windshield basket completely surrounds the microphone and its connector. It slides onto the Modular Suspension to provide up to 30 dB of wind noise attenuation.
Windjammer
The Windjammer is a synthetic fur cover that is designed to fit over the Modular Windshield, providing an additional 20 dB of wind noise attenuation. It is fitted with a drawstring and toggle for easily fitting on the mic.
Compatible with Various Microphones
Audio-Technica AT 8035 (BP 4029), Rode NT4 (single shank), Sennheiser MKH 418, 418S, and Sony ECM 680S. It is designed to fit microphones with lengths from 9.7 up to 11" (246 to 280mm).
In the Box Rycote Modular Windshield WS 4 Kit (XLR-5F)
XLR Holder Mk II uxdbxextaezs
Boom Adapter for Modular Suspension System
Pistol Grip Handle
Connbox 4 for Single Shank Stereo Microphones with 5-Pin XLR
Windjammer #4 for WS4 Windshield
Windshield #4
1 x Suspension Medium (XLR-5F) 68 Duo
2 x Duo-Lyre 68 (19/34)
Brush
Hex Head Key
Limited 1-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Rycote Modular Windshield WS 4 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Rycote 086068 Specs
Maximum Noise Attenuation
50 dB
Fur Length
1.57" / 40 mm
Outer Diameter
3.9" / 100 mm
Length
17" / 440 mm
Weight
1.5 lb / 0.7 kg
Inputs
1 x 5-Pin XLR Female
Outputs
1 x 5-Pin XLR Male
Package Weight
2.85 lb
Box Dimensions (LxWxH)
25.0 x 8.0 x 4.5"
Rating
80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
