User Manual for Rycote Stereo Cyclone XY Kit 2 Windshield System for Schoeps CCM X Y Pair Click to enlarge the picture
Contents of the user manual for the Rycote Stereo Cyclone XY Kit 2
- Product category: Shotgun Wind Protection Rycote
- Brand: Rycote
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rycote Shotgun Wind Protection
 |
User manual for the Rycote Stereo Cyclone XY Kit 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rycote product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rycote user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rycote product will considerably shorten its lifespan!
|

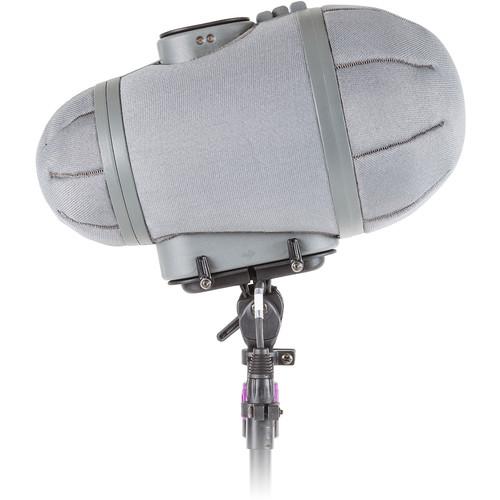

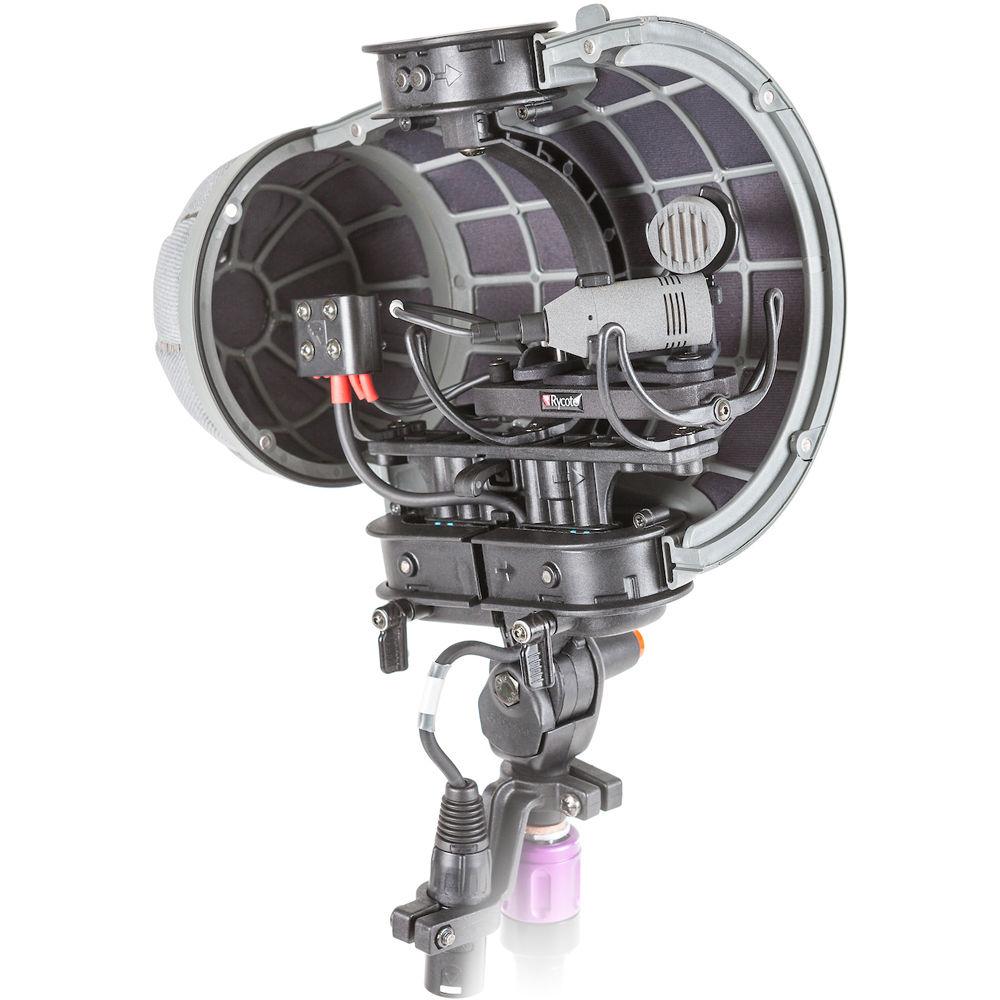

Product description The Rycote Stereo Cyclone XY Kit 2 is a windshield system offering acoustically transparent protection for location sound mixers and recordists using an X/Y array of Schoeps CCM microphones in broadcast TV, film, video, and game audio production. It features an enhanced Connbox design with no straight or parallel surfaces to reduce room tone and resonance. Its Lyre mic suspension and Floating Basket Suspension improve vibration isolation and minimize handling noise.The 3D-Tex material delivers significant attenuation of wind noise while being easy to clean. Further contributing to the system's low maintenance is the magnetic locking design, which allows for one-handed opening and closure. The two LEMO inputs match the connectivity of your Schoeps CCM microphones, and the XLR 5-pin output contributes to effective cable management. Boompole compatibility is offered via a brass 3/8"-16 UNC female thread. - Built by Hand
- Each Stereo Cyclone windshield is individually hand-built in the Rycote factory in Stroud. This very specialized manufacturing process is carried out by a highly skilled Rycote technician and takes many hours to complete.

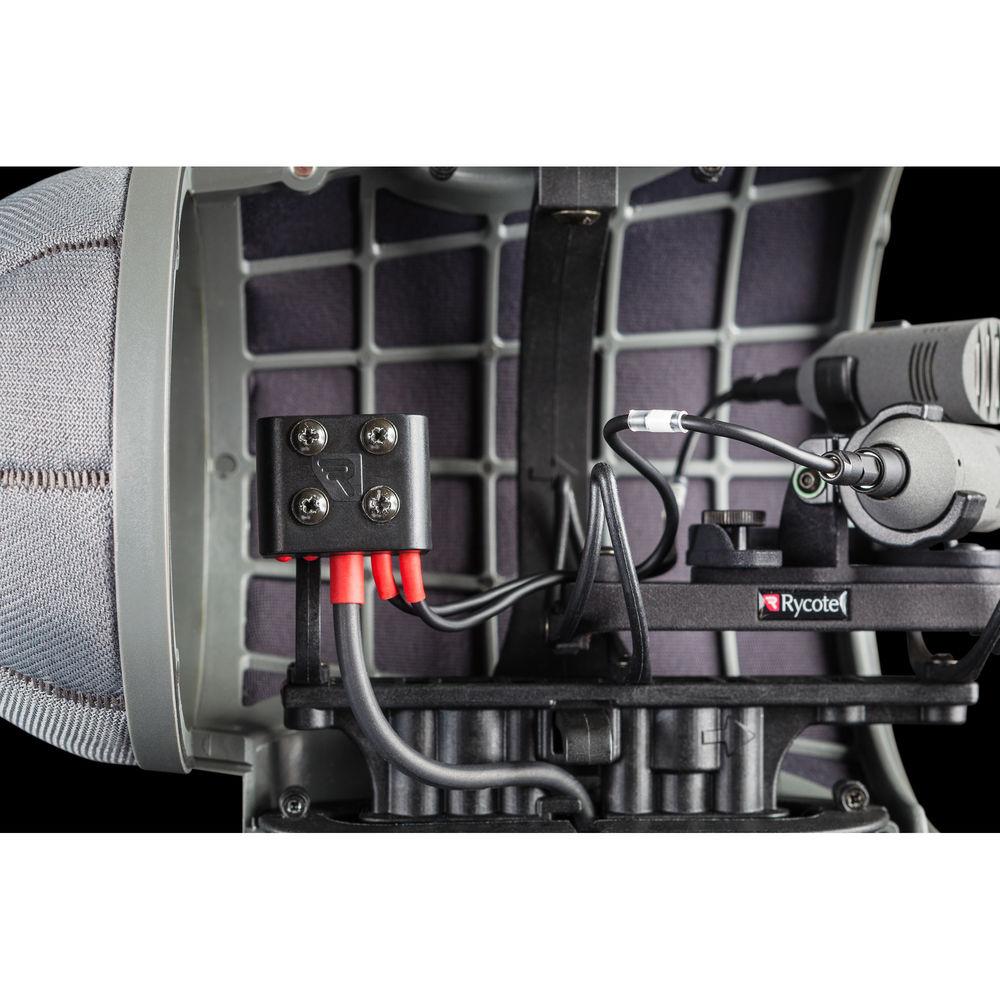

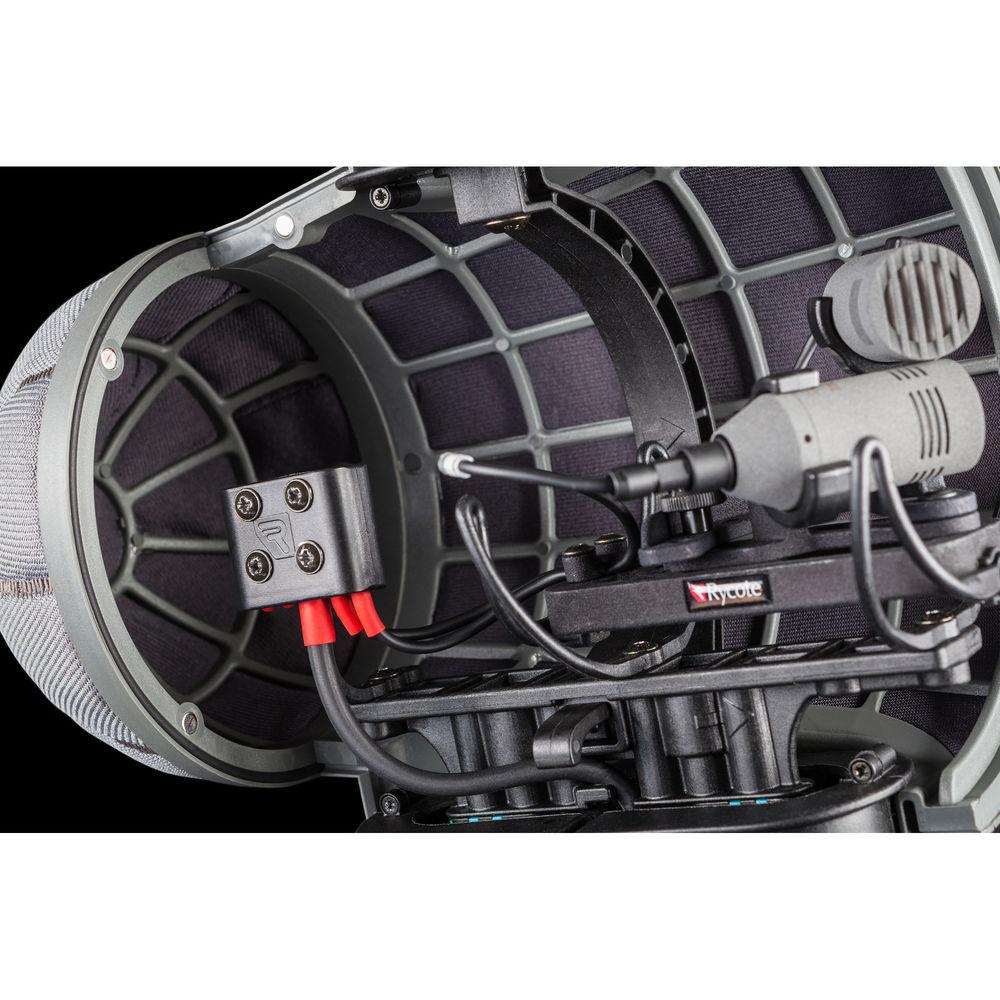

- Enhanced Connbox Design
- Designed specifically for internal cable routing, isolation, and vibration reduction, each Connbox has been optimized for specific stereo and multichannel microphone configurations. Every wire and connector has been precisely measured to offer maximum performance.

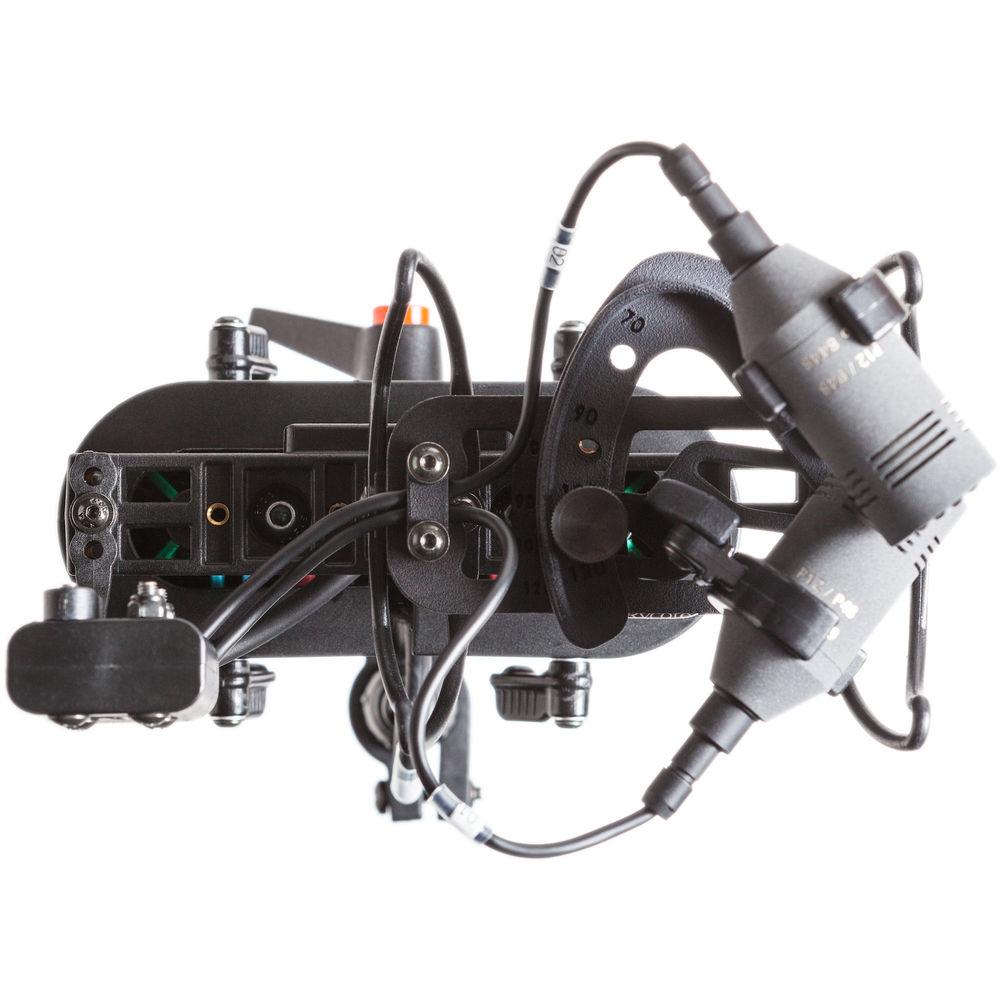

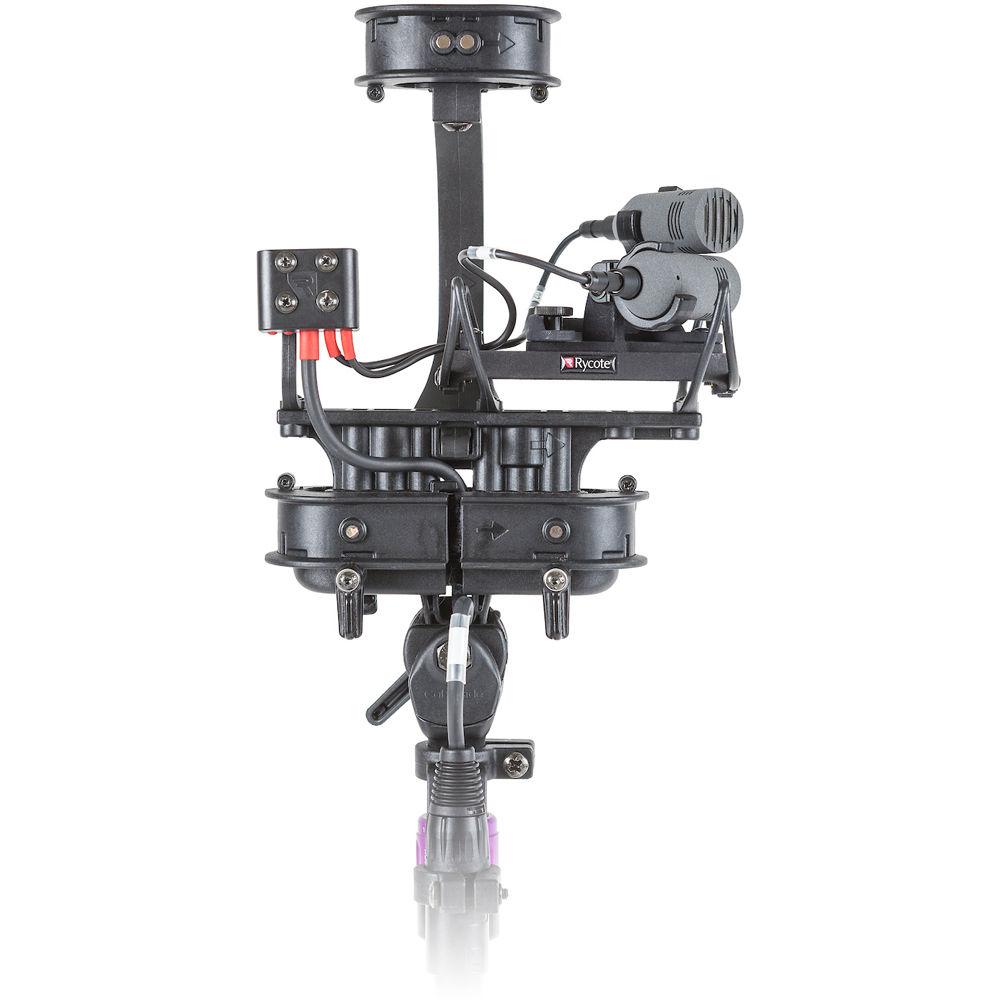

- Lyre and Floating Basket Suspension
- Rycote uses its Lyre microphone suspension to reduce the bulk of shock and handling noise. The Stereo Cyclone also features the Rycote Floating Basket Suspension: an innovative design that prevents natural resonances and vibrations from bypassing the main suspension and radiating from the structure of the basket itself. The Lyre principle is incorporated into the portions of the suspension that connect directly to the basket. The entire structure "floats", isolating problematic internal vibrations originating from boompoles and other sources.
Stereo configurations are particularly susceptible to the effects of acoustic re-radiation, since more microphones point at the overall surface of the basket. The incorporation of the Floating Basket Suspension results in a windshield with superb vibration isolation. - Acoustically Transparent Wind Protection
- An open-cell structure consisting of curved contours and no straight or parallel surfaces greatly reduces room tone effects inherent in conventional tubular windshield designs. The physical design shifts the overall bulk to the basket's front. The aerodynamically efficient asymmetric basket covered with 3D-Tex material provides enormous benefits in terms of surface turbulence and acoustic impedance, resulting in wind noise reduction comparable to the combined modular-style windshield/fur cover performance. In truly extreme weather conditions, a Cyclone Windjammer (available separately) can be used to deliver superior wind noise reduction.
- Easy Removal and Attachment
- The windshield can be removed from, or attached to, the suspension in an instant using just one hand, allowing audio professionals to capture the best possible audio at any moment in any environment. This is the unique benefit of Rycote's Z-Locking System. Reassembly is automatic as components magnetically snap into perfect alignment.
- Low Maintenance
- Location sound mixers require equipment that will not only withstand extreme conditions, but also maintain consistent performance. Maintenance is often a time-consuming, yet necessary evil. The Stereo Cyclone's 3D-Tex was developed for both outstanding performance and ease of maintenance. Dust it off after mild use or rinse and air dry after heavy use to maintain outstanding, transparent, and consistent performance for years of faithful use.
In the Box Rycote Stereo Cyclone XY Kit 2 Windshield System for Schoeps CCM X/Y Pair Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rycote Stereo Cyclone XY Kit 2 Windshield System for Schoeps CCM X Y Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRycote Cyclone Specs | Outer Diameter | 4.4 to 6.2" / 11.3 to 15.7 cm | | Length | 11.7" / 297 mm | | Weight | 20.7 oz / 587 g | | Inputs | 2 x LEMO 4-Pin Female | | Outputs | 1 x 5-Pin XLR Male | | Mounting Thread | 3/8"-16 Female | | Operating Temperature | -5 to 100°F / -20 to 38°C |
