Product description
Rycote Super-Shield Kits
Product Demo
Product Demo
Product Demo
Product Demo
Product Demo

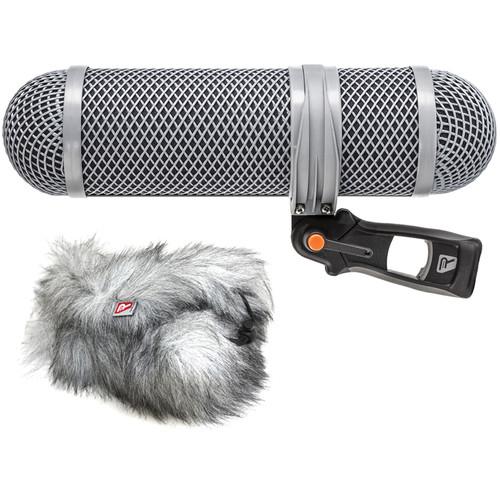

The small Super-Shield Kit for Shotgun Mics from Rycote is a complete windshield and shock mounting system for shotgun microphones up to 20cm in length. The kit contains the Super-Shield Suspension which provides your microphone isolation from shocks and vibrations, the Super-Shield Windshield which provides wind-noise reduction with minimal high-frequency loss, and the Windjammer, a high-quality synthetic fur cover which provides protection against extreme wind noise.

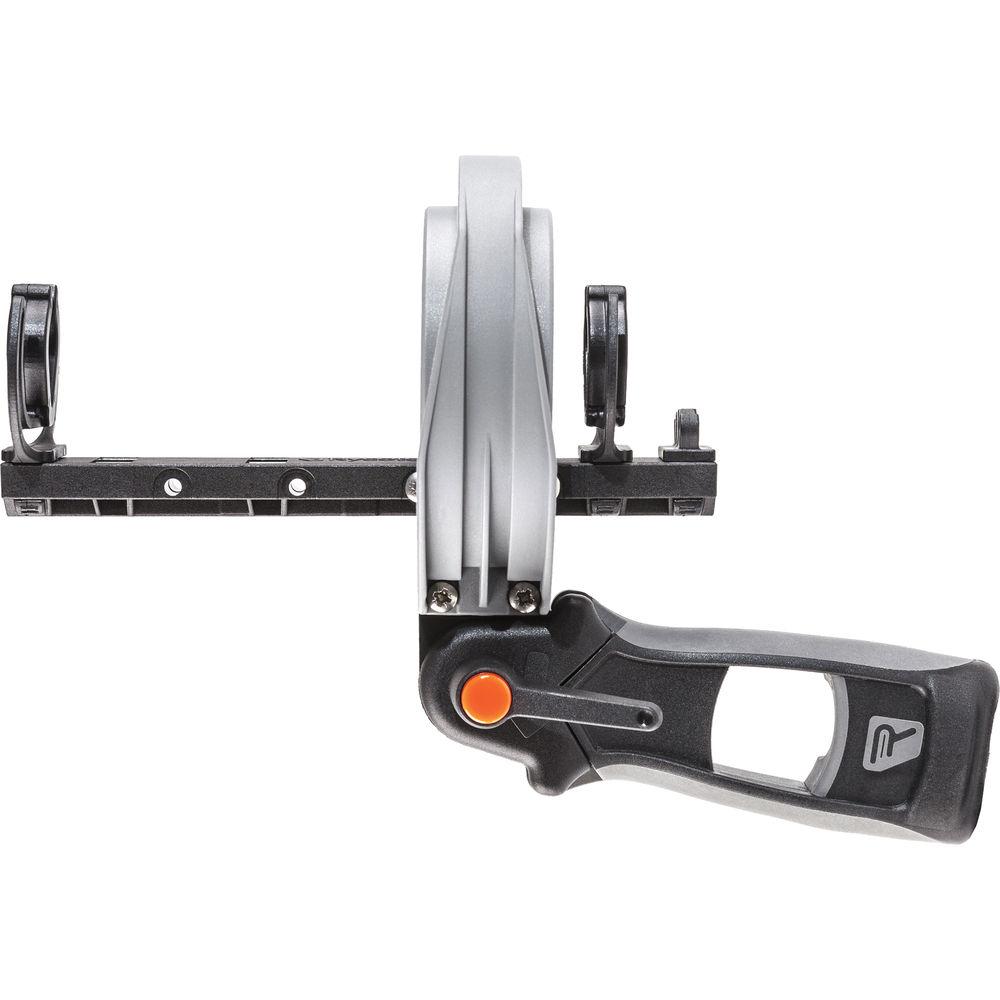

The Super-Shield Suspension features patented Lyre technology, which provides your microphone isolation from shocks and vibrations without the use of rubbers or elastic. The chassis fits microphones 19mm (3/4") to 25mm (1") in diameter, using two snap-in, pinch-release Lyre suspensions that can be used in any of six positions to achieve the optimal balance and fit. The suspension comes with an 18" (450mm) high flexibility microphone cable.

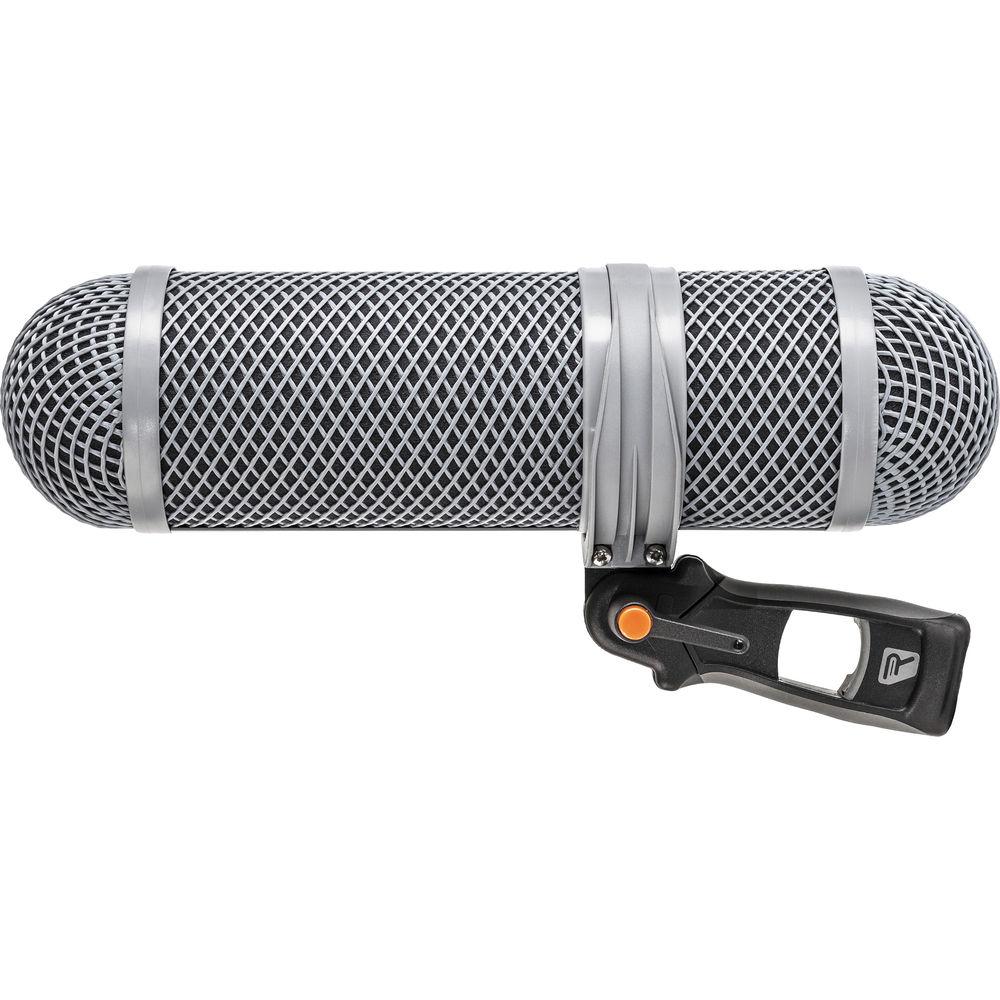

Made up of two lightweight, durable baskets made from flexible grey plastic netting with a screening material attached, the Super-Shield Windshield connects to the Super-Shield Suspension. The windshield completely surrounds and creates a still volume of air around the microphone, which is designed to provide wind-noise reduction, with minimal high-frequency loss.

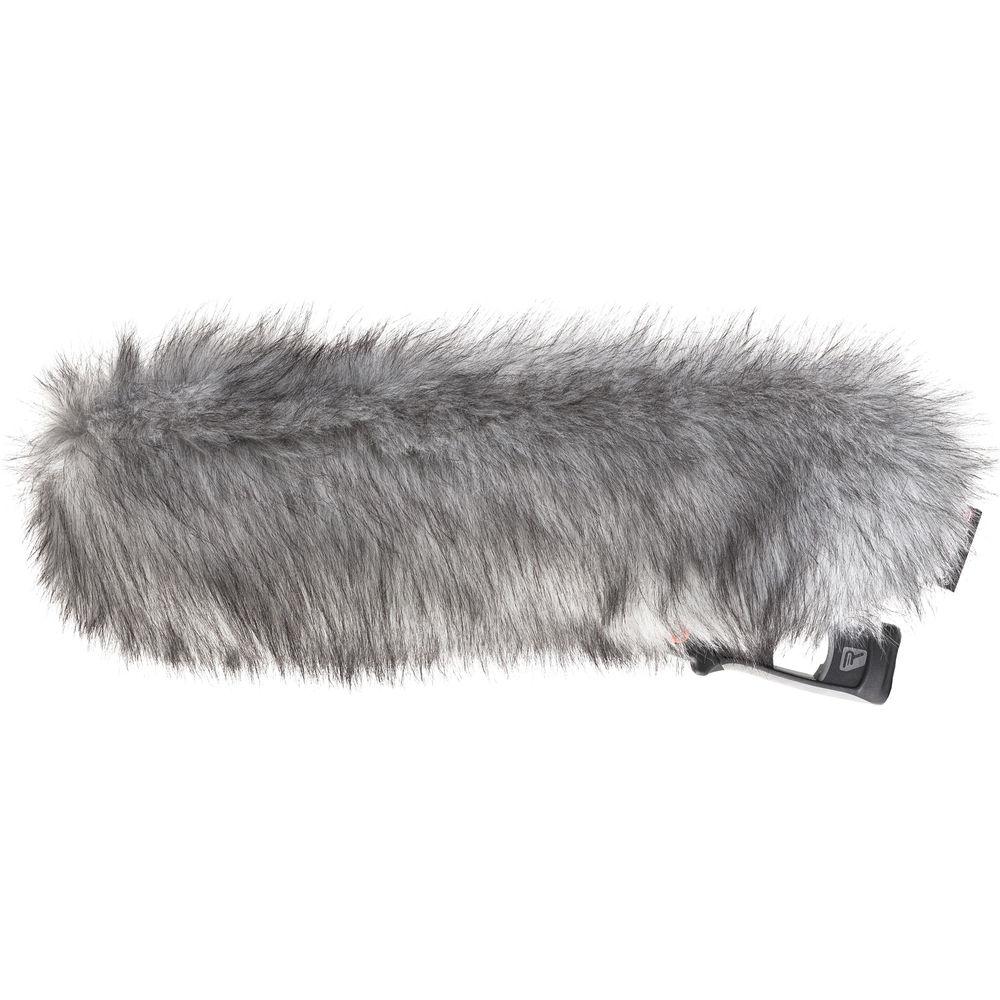

The Super-Shield Windjammer is a synthetic fur cover which provides another layer of protection to be used to combat extreme wind noise. Like the Super-Shield Windshield, it is designed to protect from wind without substantial high-frequency loss.
Fits these and similar sized mics:
Oktava MC 012
Oktava MK-012
Sanken CS 1
Schoeps CMC Series
Schoeps CMC Series (With Cut 1)
Sennheiser ME 62 K6
Sennheiser ME 64 K6
Sennheiser MKH 30
Sennheiser MKH 40
Sennheiser MKH 50
Sennheiser MKH 8060 + MZX
In the Box Rycote Super-Shield Kit for Shotgun Mics (Small)
18" (450 mm) XLR cable
Suspension
Pistol Grip
Windshield
Windjammer
Limited 1-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Rycote Super-Shield Kit for Shotgun Mics in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Rycote 010320 Specs
Compatible Mic Diameter
0.748 to 0.98" / 19 to 25 mm
Outer Diameter
3.9" / 100 mm
Length
13.78" / 350 mm
Weight
22.65 oz / 642 g
Package Weight
2.2 lb
Box Dimensions (LxWxH)
19.055 x 8.189 x 4.488"
